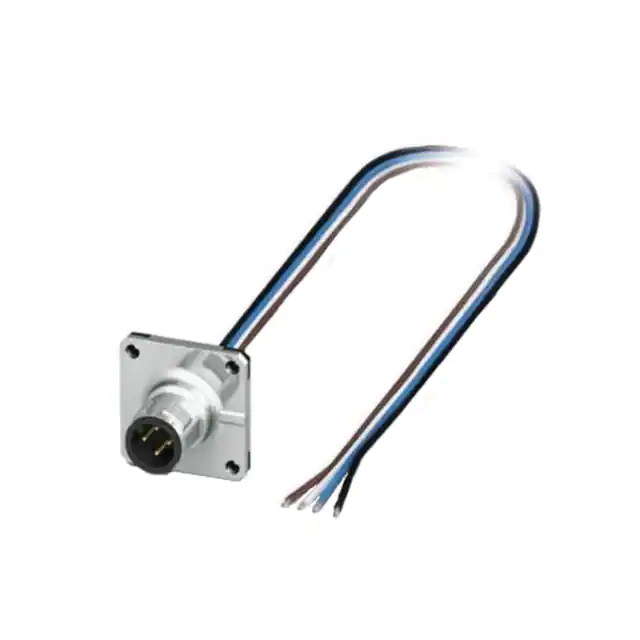

https://www.phoenixcontact.com/gb/products/1419784 Flush-type connector - SACC-SQ-M12MS-4CON-20/0,5 - 1419784 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator flush-type plug, 4-pos., M12, A-coded, front/square flange mounting, with 0.5 m TPE litz wire, 4 x 0.34 mm² Why buy this product ■ ■ ■ ■ ■ ■ ■ ■ 4 x fixing hole, 3.2 mm With form seal for M3 screws Pre-assembled with litz wires for immediate use Customer-specific assemblies and litz wire lengths available Sealed on the litz wire side for optimum leak-tightness All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design For high transmission safety: shield connection to the housing with optional EMC nut SPEEDCON fast locking system reduces cabling times Key Commercial Data Packing unit 1 STK GTIN Weight per Piece (excluding packing) 18.8 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) Degree of protection IP67 08/06/2016   Page 1 / 5 https://www.phoenixcontact.com/gb/products/1419784 Flush-type connector - SACC-SQ-M12MS-4CON-20/0,5 - 1419784 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 250 V Rated surge voltage 2.5 kV Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Front mounting Square flange 20 mm side length Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 66 Material of grip body Zinc die-cast, nickel-plated Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm (Core insulation) Wire colors brown, blue, black, white Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 mΩ/m 08/06/2016   Page 2 / 5 https://www.phoenixcontact.com/gb/products/1419784 Flush-type connector - SACC-SQ-M12MS-4CON-20/0,5 - 1419784 Technical data Cable Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Drawings Schematic diagram 4 Dimensional drawing 500 14 M12x1 14 1 20 20 3 2 Pin assignment M12 plug, 4-pos., A-coded, view plug side Ø3,2 M12 flush-type plug, square flange Circuit diagram 1 BN 2 WH 4 BK 3 BU Contact assignment of the M12 plug and the M12 socket Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27279220 eCl@ss 7.0 27440103 08/06/2016   Page 3 / 5 https://www.phoenixcontact.com/gb/products/1419784 Flush-type connector - SACC-SQ-M12MS-4CON-20/0,5 - 1419784 Classifications eCl@ss eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / cULus Recognized / UL Recognized / EAC Ex Approvals Approvals submitted Approval details EAC  cULus Recognized      mm²/AWG/kcmil 20 Nominal current IN 4A Nominal voltage UN 250 V 08/06/2016   Page 4 / 5 https://www.phoenixcontact.com/gb/products/1419784 Flush-type connector - SACC-SQ-M12MS-4CON-20/0,5 - 1419784 Approvals UL Recognized      mm²/AWG/kcmil 26-20 Nominal current IN 4A Nominal voltage UN 250 V EAC  Accessories Accessories Protective cap Sealing cap - PROT-M12 FS - 1560251 M12 sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Sealing cap - PROT-M12 FS-M - 1430488 M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 08/06/2016   Page 5 / 5
