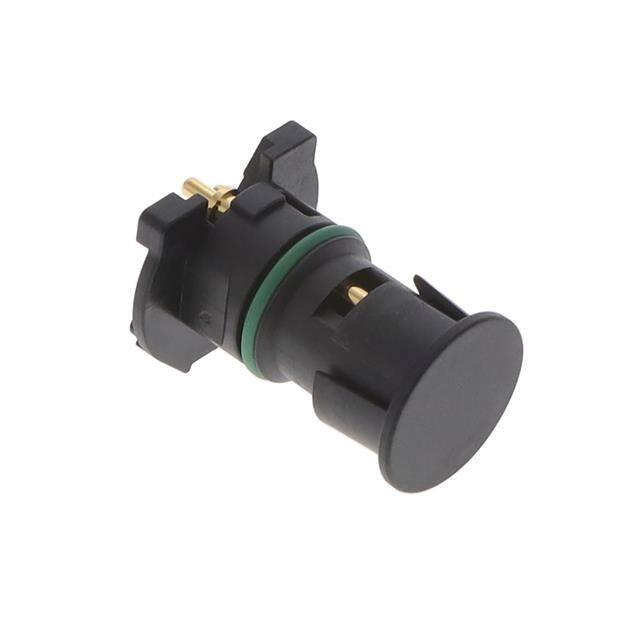

https://www.phoenixcontact.com/us/products/1420818 Flush-type connector - SACC-CI-M12FSL-4FE-L180 THR T - 1420818 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Power, 5-position, Socket, straight, L - Power, PCB mounting, THR solder connection Your advantages  For compact devices: transmit high power in a confined space  Reduced mounting costs thanks to two-piece device connector  Packaging available for automated pick and place assembly  All common pin assignments and codings available  Easy device integration, thanks to mechanical port screw connections with threaded fastening  Additional gasket for the device when not plugged in Key Commercial Data Packing unit 1 pc Minimum order quantity 60 pc GTIN GTIN 4055626280622 Weight per Piece (excluding packing) 5.000 g Custom tariff number 85366990 Country of origin Germany Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 105 °C -40 °C ... 105 °C (without mechanical actuation) -25 °C ... 105 °C 12/03/2020   Page 1 / 5 https://www.phoenixcontact.com/us/products/1420818 Flush-type connector - SACC-CI-M12FSL-4FE-L180 THR T - 1420818 Technical data Ambient conditions Degree of protection IP67 (correctly plugged in and locked) General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. FE not connected to metal parts that can be touched, no protective function Rated current at 40°C 16 A Rated voltage 63 V Rated surge voltage 1.5 kV Number of positions 5 Coding L - Power Standards/regulations M12 connector IEC 61076-2-111 In line with Signal type/category Power Overvoltage category III Degree of pollution 3 Connection method THR solder connection Insertion/withdrawal cycles > 100 Mounting type PCB mounting Type of packaging Tray Delivery state with assembly pad Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA4T Sealing material FKM Cable Standards/specifications M12 connector IEC 61076-2-111 In line with Standards and Regulations Standards/specifications M12 connector IEC 61076-2-111 In line with Flammability rating according to UL 94 V0 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years 12/03/2020   Page 2 / 5 https://www.phoenixcontact.com/us/products/1420818 Flush-type connector - SACC-CI-M12FSL-4FE-L180 THR T - 1420818 Technical data Environmental Product Compliance For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Drilling diagram 1 4 Ø5,88 5,2±0,02 FE 2 3 Pin assignment of M12 socket, 5-pos., L-coded, socket side view Ø1,6⁺⁰⁰³ 8,65±0,02 Soldering pad geometry Dimensional drawing Dimensional drawing 21,7 155 15,8 24 31 A 24 14 Ø1,3±0,05 19,5 1,5 250 M12 flush-type connector A THR tray packaging 12/03/2020   Page 3 / 5 https://www.phoenixcontact.com/us/products/1420818 Flush-type connector - SACC-CI-M12FSL-4FE-L180 THR T - 1420818 Classifications eCl@ss eCl@ss 10.0.1 27440109 eCl@ss 11.0 27440109 eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 eCl@ss 9.0 27440103 ETIM ETIM 6.0 EC002061 Approvals Approvals Approvals cULus Recognized / EAC Ex Approvals Approval details cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 63 V Nominal current IN 16 A EAC      E468743-20180113  B.01687 12/03/2020   Page 4 / 5 https://www.phoenixcontact.com/us/products/1420818 Flush-type connector - SACC-CI-M12FSL-4FE-L180 THR T - 1420818 Accessories Accessories Contact insert Sample set - SACCCIM12FSL4FEL180THRSHSAMPLE - 1423414 Sample set, Power, 5-position, Socket, straight, L - Power, PCB mounting, THR solder connection     Panel mounting base Housing screw connection - SACC-FP-F-M12/M14 THR PW - 1420825 Housing screw connection with M12 standard thread, with O-ring, for 2-piece K, L, and M-coded THR contact carriers     Housing screw connection - SACC-BP-F-M12/M15-6-THR PW - 1420827 Housing screw connection with M12 standard thread, with O-ring, for 2-piece K, L, and M-coded THR contact carriers     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 12/03/2020   Page 5 / 5
