1420910

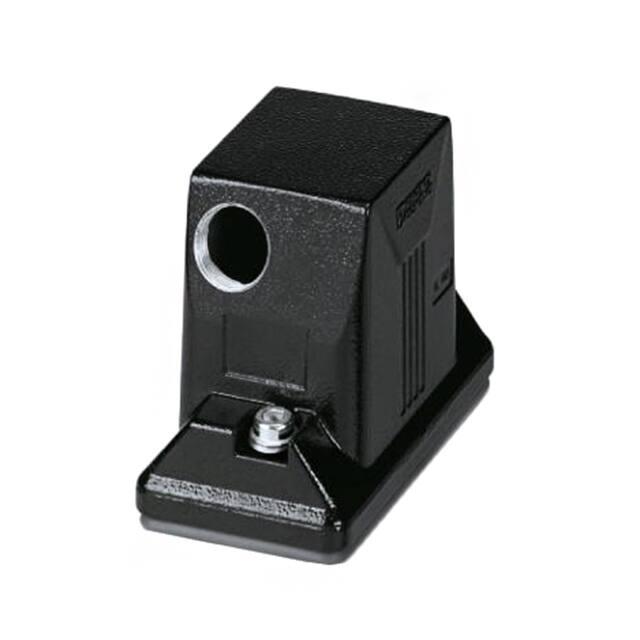

https://www.phoenixcontact.com/us/products/1420910 Housing - HC-ADV-B10-HLWH-1STM20-MF-BK - 1420910 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sleeve housing B10, Screw locking, Material: Die-cast aluminum, salt water resistant, Cable outlets: 1, lateral, Height: 74 mm, Cable gland: none, Gland: no, 1x M20, Increased environmental requirements Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626249094 Custom tariff number 85389099 Country of origin China Technical data Dimensions Height 74 mm Width 57 mm Length 105 mm Length of the assembly cutout 65 mm Width of the assembly cutout 35 mm Ambient conditions Degree of protection of housing (IP) IP66 IP68 (0.2 bar/24 h) IP69K (ISO 20653:2013-02) Degree of protection of housing (NEMA) 4 (UL 50e) 4X (UL 50e) 12 (UL 50e) Ambient temperature (operation) -40 °C ... 125 °C General Note For contact inserts HC-B10, BB18, DD42, M, K8/24 04/13/2017   Page 1 / 5 https://www.phoenixcontact.com/us/products/1420910 Housing - HC-ADV-B10-HLWH-1STM20-MF-BK - 1420910 Technical data General Size B10 Housing type Sleeve housing Locking type Screw locking Fixing screws M6 (screw head: 5 mm Allen screw) No. of cable outlets 1 Cable exit lateral Screw connection none Type of the screw connection 1x M20 Housing material Die-cast aluminum, salt water resistant Housing surface material Powder-coated, black Seal material Viton Material lock Stainless steel Drawings Dimensional drawing Dimensional drawing 83 105 57 35 32 74 65 Ø4,51) Ø3,62) Panel cutout 2) When self-tapping screws are used (Torx® 20, M4) Classifications eCl@ss eCl@ss 5.1 27261203 eCl@ss 8.0 27440202 eCl@ss 9.0 27440202 ETIM ETIM 5.0 EC000437 ETIM 6.0 EC000437 04/13/2017   Page 2 / 5 https://www.phoenixcontact.com/us/products/1420910 Housing - HC-ADV-B10-HLWH-1STM20-MF-BK - 1420910 Classifications UNSPSC UNSPSC 13.2 31261501 Approvals Approvals Approvals EAC Ex Approvals Approval details EAC      7500651.22.01.00246 Accessories Accessories Full screw connection Cable gland - HC-K-KV-M20(8-13) - 1690626 Plastic screw connection up to 5 bar, thread length: 8 mm, cable diameter: 8 - 13 mm, WAF 24, screw connection: M20     Cable gland - HC-M-KV-M20(11-16) - 1645998 Metal screw connection up to 5 bar, thread length: 6 mm, cable diameter: 11 - 16 mm, WAF 27, screw connection: M20     04/13/2017   Page 3 / 5 https://www.phoenixcontact.com/us/products/1420910 Housing - HC-ADV-B10-HLWH-1STM20-MF-BK - 1420910 Accessories Cable gland - HC-M-KV-M20(1ASI) - 1584017 Metal screw connection for an AS-Interface flat-ribbon conductor, thread type M20     Cable gland - G-INS-M20-S68N-NNES-S - 1411163 Cable gland, Cable gland material: Nickel-plated brass, External cable diameter 6 mm ... 12 mm, Shielding: No, Connecting thread: M20, Color: silver     Labeled device marker Plastic label - US-EMLP (20X9) CUS - 0830085 Plastic label, can be ordered: By card, white, labeled according to customer specifications, Mounting type: Adhesive, Lettering field: 20 x 9 mm     Panel mounting flange Mounting flange - HC-B-AF - 1686533 Panel mounting flange for HEAVYCON-ADVANCE TMS housing with screw locking     Mounting flange - HC-B-AF-SET - 1604638 ® Panel mounting flange for screw locking, set comprising 2 panel mounting flanges with 4 self-tapping screws (M4, Torx ) and 4 fan-type washers     04/13/2017   Page 4 / 5 https://www.phoenixcontact.com/us/products/1420910 Housing - HC-ADV-B10-HLWH-1STM20-MF-BK - 1420910 Accessories Protective cover Protective covers - HC-B 10-TMS-SD-IP50 - 1690749 Protective cover B10, Clip locking, Protective cover material: PA, Seal: no, With lanyard, Diameter of retaining cord eyelet: 4 mm     Screwdriver tools Screwdriver - SF-BIT-HEXB 5-89 - 1208911 Screw bit, hexagonal with ball head, E6.3-1/4" drive, size: Hex 5 x 89 mm, hardened, suitable for holder according to DIN 3126-F 6.3/ISO 1173     Screwdriver - SF-M BH - 1212070 Bit screwdriver, with 1/4" quick-action chuck, handle length 119 mm, 2-component handle, with non-slip grip, suitable for bits according to DIN 3126-C 6.3 and E 6.3/ISO 1173, magnetic     Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 5 / 5
