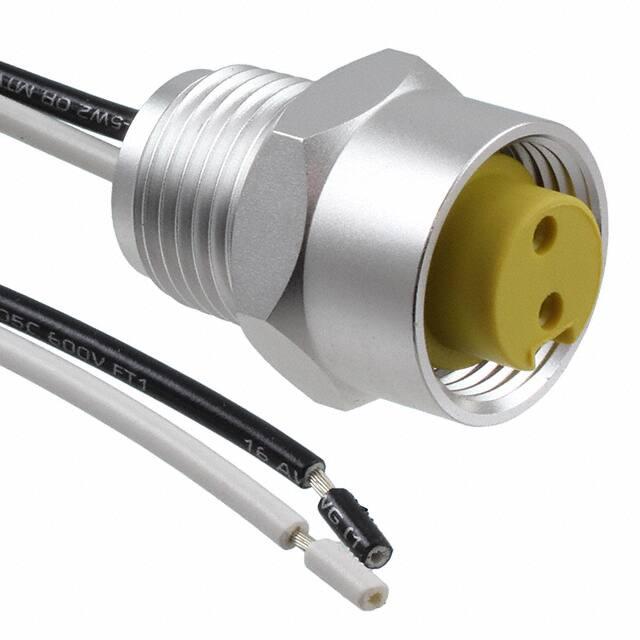

https://www.phoenixcontact.com/us/products/1420952 Flush-type connector - SACC-E-MINF-2CON-NPT12-U20/1,0 - 1420952 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type plug, 2-pos., 7/8", front mounting with 7/8" fastening thread, with 1.0 m PE litz wire Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 1.000 g Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 1m Ambient conditions Ambient temperature (operation) -20 °C ... 80 °C (Plug) Degree of protection IP68 General Rated current at 40°C 13 A Rated voltage 600 V AC/DC Number of positions 2 Insulation resistance ≥ 100 MΩ Standards/regulations UL 2238 Status display No Connection method Individual wires Torque 10 lbf-in. 1.12 Nm 04/10/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1420952 Flush-type connector - SACC-E-MINF-2CON-NPT12-U20/1,0 - 1420952 Technical data General Mounting type Front mounting, with 1/2 inch-14 NPT mounting thread 7/8" Material Flammability rating according to UL 94 V-0 Contact material Copper alloy Contact surface material Au Contact carrier material PVC Material, knurls Anodized aluminum Cable Cable type PVC litz wire AWG signal line 16 Conductor structure signal line 26 x AWG 30 Core diameter including insulation 2.6 mm Thickness, insulation Core insulation Wire colors White 1, black 2 Material conductor insulation PVC Standards/specifications UL 2238 Standards and Regulations Standards/regulations UL 2238 Flammability rating according to UL 94 V-0 Drawings Dimensional drawing 7!⁰⁵ 29,3 !12,7 7/8"-16 UN L Circuit diagram Contact assignment of 7/8" socket 7/8" flush-type socket 04/10/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1420952 Flush-type connector - SACC-E-MINF-2CON-NPT12-U20/1,0 - 1420952 Schematic diagram 2 1 Pin assignment, socket, 7/8"-16UNF, 2-pos., view of female side Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/10/2017   Page 3 / 3
