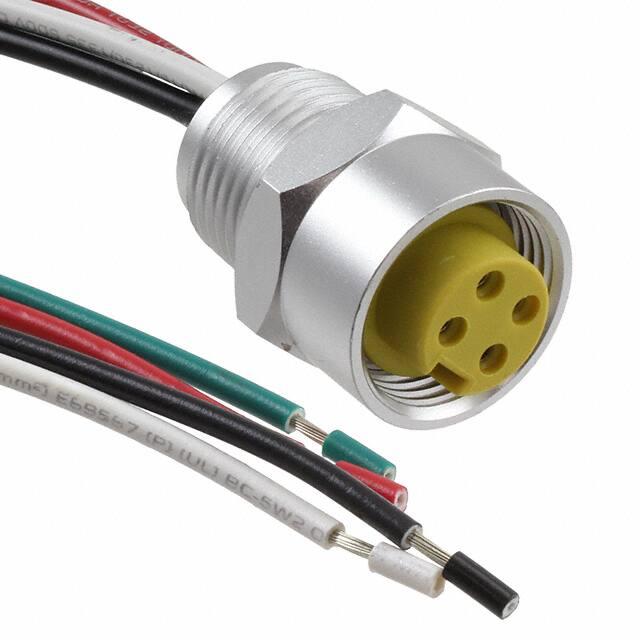

https://www.phoenixcontact.com/us/products/1420954 Flush-type connector - SACC-E-MINF-4CON-NPT12-U20/1,0 - 1420954 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type plug, 4-pos., 7/8", front mounting with 7/8" fastening thread, with 1.0 m PE litz wire Key Commercial Data Packing unit 1 STK Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 1m Ambient conditions Ambient temperature (operation) -20 °C ... 80 °C (Plug) Degree of protection IP68 General Rated current at 40°C 10 A Rated voltage 600 V AC/DC Number of positions 4 Insulation resistance ≥ 100 MΩ Standards/regulations UL 2238 Status display No Connection method Individual wires Torque 10 lbf-in. 1.12 Nm Mounting type Front mounting, with 1/2 inch-14 NPT mounting thread 7/8" 04/14/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1420954 Flush-type connector - SACC-E-MINF-4CON-NPT12-U20/1,0 - 1420954 Technical data Material Flammability rating according to UL 94 V-0 Contact material Copper alloy Contact surface material Au Contact carrier material PVC Material, knurls Anodized aluminum Cable Cable type PVC litz wire AWG signal line 16 Conductor structure signal line 26 x AWG 30 Core diameter including insulation 2.6 mm Thickness, insulation Core insulation Wire colors Black 1, white 2, red 3, green 4 Material conductor insulation PVC Standards/specifications UL 2238 Standards and Regulations Standards/regulations UL 2238 Flammability rating according to UL 94 V-0 Drawings Dimensional drawing 7!⁰⁵ 7/8" flush-type socket 29,3 !12,7 7/8"-16 UN L Circuit diagram Contact assignment of 7/8" socket 04/14/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1420954 Flush-type connector - SACC-E-MINF-4CON-NPT12-U20/1,0 - 1420954 Schematic diagram 3 2 4 1 Pin assignment, socket, 7/8"-16UNF, 4-pos., view of female side Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/14/2017   Page 3 / 3
