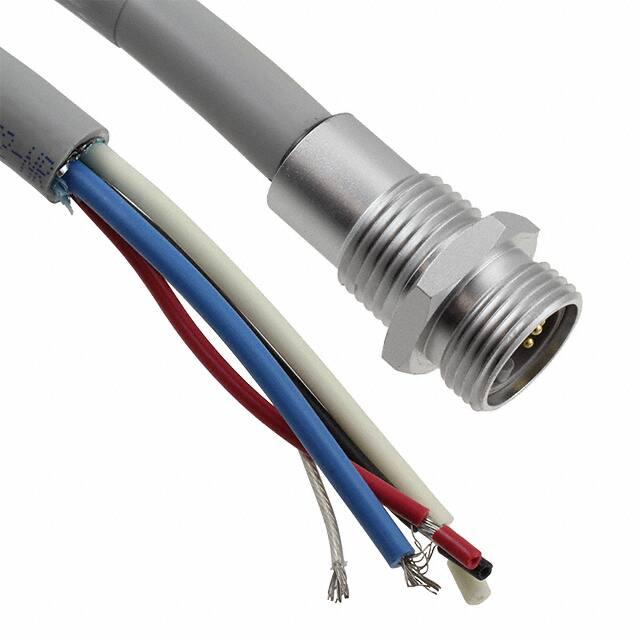

https://www.phoenixcontact.com/us/products/1420959 Flush-type connector - SACC-E-MINM-5CON-NPT12-U40/1,0 - 1420959 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) DeviceNet™ thick flush-type plug, 5-pos., 7/8", front mounting with 7/8" fastening thread, with 1.0 m PE litz wire Key Commercial Data Packing unit 1 STK Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 1m Ambient conditions Ambient temperature (operation) -20 °C ... 80 °C (Plug) Degree of protection IP68 General Rated current at 40°C 8A Rated voltage 300 V AC/DC Number of positions 5 Insulation resistance ≥ 100 MΩ Standards/regulations UL 2238 Status display No Overvoltage category UL 2238 Section 38 Connection method Individual wires Torque 10 lbf-in. 1.12 Nm 04/11/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1420959 Flush-type connector - SACC-E-MINM-5CON-NPT12-U40/1,0 - 1420959 Technical data General Mounting type Front mounting, with 1/2 inch-14 NPT mounting thread 7/8" Material Flammability rating according to UL 94 V-0 Contact material Copper alloy Contact surface material Au Contact carrier material PVC Material, knurls Anodized aluminum Cable Cable type CAN Bus/DeviceNet Cable abbreviation U40 Cable structure 2xAWG18+2xAWG15+1xAWG18 Conductor cross section 2 x AWG 18 data cable 2 x AWG 15 power supply 1 x AWG 18 drain wire AWG signal line 18 AWG power supply 15 Conductor structure signal line 19 x AWG 30 Conductor structure, voltage supply 19 x AWG 28 Core diameter including insulation 11.43 mm Wire colors Red-black, blue-white Twisted pairs 2 cores to the pair Type of pair shielding Plastic-coated aluminum foil, aluminum side outside Overall twist 2 pairs and one drain wire to the core Optical shield covering 65 % External sheath, color gray Outer sheath, material PVC Material conductor insulation Foamed PE (Data) PVC (Power supply) Standards/specifications UL 2238 Standards and Regulations Standards/regulations UL 2238 Flammability rating according to UL 94 V-0 Drawings 04/11/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1420959 Flush-type connector - SACC-E-MINM-5CON-NPT12-U40/1,0 - 1420959 Dimensional drawing 7!⁰⁵ 25,4 !12,7 7/8"-16 UN L Circuit diagram 1 N.C. 2 RD 3 BK 4 WH 5 BU 7/8" flush-type plug Contact assignment of the 7/8" plug Schematic diagram 5 4 3 1 2 Pin assignment, plug, 7/8"-16UNF, 5-pos., view of male side Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/11/2017   Page 3 / 3
