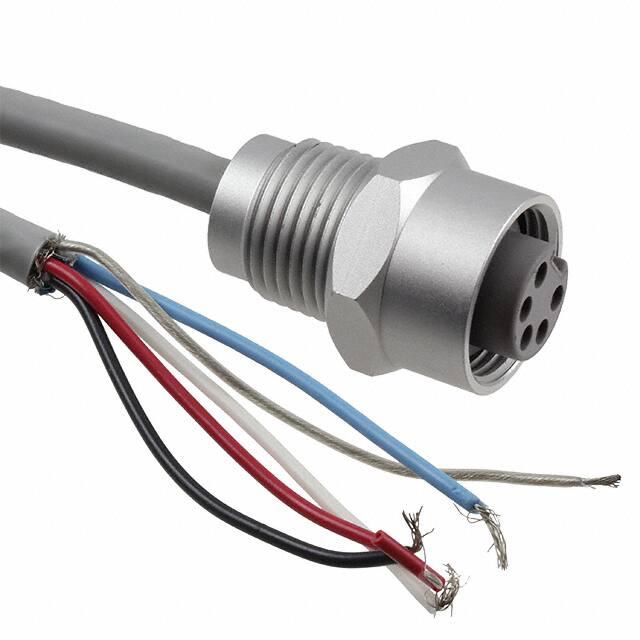

https://www.phoenixcontact.com/us/products/1420960 Flush-type connector - SACC-E-MINF-5CON-NPT12-U30/1,0 - 1420960 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) DeviceNet™ thin flush-type plug, 5-pos., 7/8", front mounting with 7/8" fastening thread, with 1.0 m PE litz wire Key Commercial Data Packing unit 1 STK Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 1m Ambient conditions Ambient temperature (operation) -20 °C ... 80 °C (Plug) Degree of protection IP68 General Rated current at 40°C 4A Rated voltage 300 V AC/DC Number of positions 5 Insulation resistance ≥ 100 MΩ Standards/regulations UL 2238 Status display No Overvoltage category UL 2238 Section 38 Connection method Individual wires Torque 10 lbf-in. 1.12 Nm 04/14/2017   Page 1 / 4 https://www.phoenixcontact.com/us/products/1420960 Flush-type connector - SACC-E-MINF-5CON-NPT12-U30/1,0 - 1420960 Technical data General Mounting type Front mounting, with 1/2 inch-14 NPT mounting thread 7/8" Material Flammability rating according to UL 94 V-0 Contact material Copper alloy Contact surface material Au Contact carrier material PVC Material, knurls Anodized aluminum Cable Cable type CAN Bus/DeviceNet Cable abbreviation U30 Cable structure 2xAWG24+2xAWG22+1xAWG22 Conductor cross section 2 x AWG 24 data cable 2 x AWG 22 power supply 1 x AWG 22 drain wire AWG signal line 24 AWG power supply 22 Conductor structure signal line 19 x AWG 36 Conductor structure, voltage supply 19 x AWG 34 Core diameter including insulation 6.6 mm Wire colors Red-black, blue-white Twisted pairs 2 cores to the pair Type of pair shielding Plastic-coated aluminum foil, aluminum side outside Overall twist 2 pairs and one drain wire to the core Optical shield covering 65 % External sheath, color gray Outer sheath, material PVC Material conductor insulation Foamed PE (Data) PVC (Power supply) Standards/specifications UL 2238 Standards and Regulations Standards/regulations UL 2238 Flammability rating according to UL 94 V-0 Drawings 04/14/2017   Page 2 / 4 https://www.phoenixcontact.com/us/products/1420960 Flush-type connector - SACC-E-MINF-5CON-NPT12-U30/1,0 - 1420960 Dimensional drawing 7!⁰⁵ 29,3 !12,7 7/8"-16 UN L Circuit diagram 1 N.C. 2 RD 3 BK 4 WH 5 BU 7/8" flush-type socket Contact assignment of 7/8" socket Schematic diagram 4 5 3 2 1 Pin assignment, socket, 7/8"-16UNF, 5-pos., view of female side Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 04/14/2017   Page 3 / 4 https://www.phoenixcontact.com/us/products/1420960 Flush-type connector - SACC-E-MINF-5CON-NPT12-U30/1,0 - 1420960 Classifications UNSPSC UNSPSC 13.2 39121413 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/14/2017   Page 4 / 4
