1422072

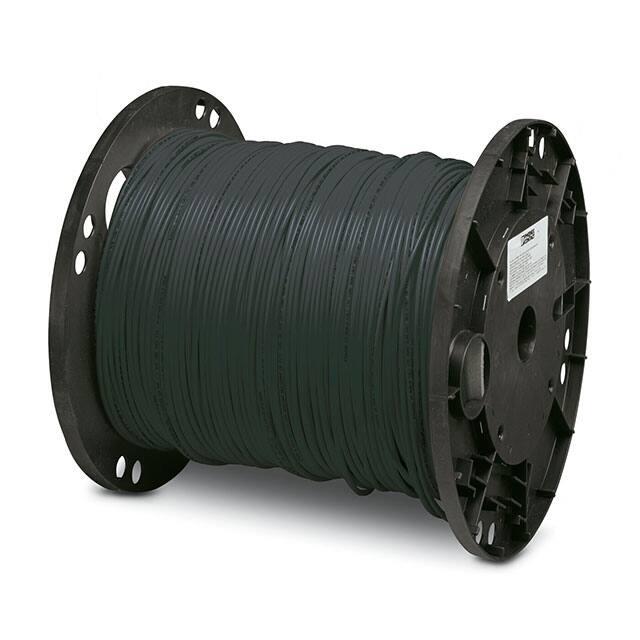

https://www.phoenixcontact.com/us/products/1422072 Cable reel - SAC-4P-0,34-OE-OE-PUR-100,0 US - 1422072 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) By the meter, Cable reel, PUR halogen-free, black-gray RAL 7021, 4-wire, Color, single wire: brown, white, blue, black, Cable length: 100 m Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626325316 Custom tariff number 85444995 Country of origin United States Technical data Dimensions Length of cable 100 m General Number of positions 4 Cable Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y-HF UL AWM style 20549 / 10493 (80°C/300 V) Conductor cross section 4x 0.34 mm² AWG signal line 22 Conductor structure signal line 42x 0.10 mm 04/13/2017   Page 1 / 4 https://www.phoenixcontact.com/us/products/1422072 Cable reel - SAC-4P-0,34-OE-OE-PUR-100,0 US - 1422072 Technical data Cable Core diameter including insulation 1.27 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm Wire colors brown, white, blue, black Overall twist 4 wires, twisted External sheath, color black-gray RAL 7021 Outer sheath thickness approx. 0.8 mm External cable diameter D 4.7 mm ±0.15 mm Smallest bending radius, fixed installation 23.5 mm Smallest bending radius, movable installation 47 mm Minimum bending radius, fixed installation 5xD Minimum bending radius, flexible installation 10 x D Number of bending cycles 4000000 Bending radius 47 mm Minimum bending radius, drag chain applications 10 x D Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Cable weight 30 kg/km Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Insulation resistance ≥ 1 GΩ*km Conductor resistance ≤ 58 Ω/km Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flexible Flame resistance according to UL 758/1581 (horizontal) in accordance with UL 758/1581 FT2 Halogen-free in accordance with DIN VDE 0472 part 815 in accordance with DIN EN 50267-2-1 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DIN EN ISO 4892-2-A 04/13/2017   Page 2 / 4 https://www.phoenixcontact.com/us/products/1422072 Cable reel - SAC-4P-0,34-OE-OE-PUR-100,0 US - 1422072 Technical data Cable Low adhesion abrasion-resistant Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (cable, flexible installation) Drawings Cable cross section PUR halogen-free black [PUR] Classifications eCl@ss eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 8.0 27060307 eCl@ss 9.0 27060307 ETIM ETIM 5.0 EC000830 UNSPSC UNSPSC 13.2 43211617 Accessories Accessories Stripping tool 04/13/2017   Page 3 / 4 https://www.phoenixcontact.com/us/products/1422072 Cable reel - SAC-4P-0,34-OE-OE-PUR-100,0 US - 1422072 Accessories Stripping tool - WIREFOX SAC - 1212623 Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7 mm, any stripping length     Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 4 / 4
