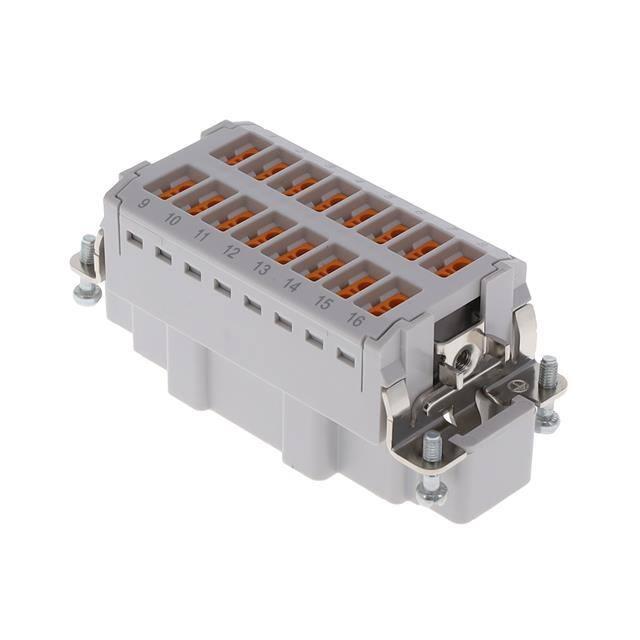

https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Contact insert, Size: B16, Number of positions: 16+PE, Male connector, Push-in connection, Number of connections per position: 2, 500 V, 10 A, 0.14 mm² ... 1.5 mm², Application: Power Why buy this product  For fast coding with plastic profile Key Commercial Data Packing unit 1 GTIN GTIN 4055626322728 Custom tariff number 85366990 Technical data General Note For HEAVYCON housing B16 and B32 Connection method Push-in connection Degree of pollution 3 Overvoltage category III Number of positions 16+PE Insertion/withdrawal cycles ≥ 500 Size B16 Conductor cross section 0.14 mm² ... 1.5 mm² (with ferrule) Connection cross section AWG 26 ... 16 (with ferrule) Stripping length of the individual wire 8 mm ±1 mm 04/13/2017   Page 1 / 6 https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Technical data General Assembly instructions Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HCB10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. Connection Connectors may only be actuated when there is no load/voltage. Ambient conditions Ambient temperature (operation) -40 °C ... 125 °C Material data Contact material Copper alloy Contact surface material Ag Contact carrier material PC Electrical characteristics Rated voltage (III/3) 500 V Rated surge voltage 6 kV Rated current 10 A Standards and Regulations Constructional and testing regulations DIN EN 61984 DIN EN 60664 IEC 60352 Flammability rating according to UL 94 V0 Drawings Dimensional drawing Dimensional drawing 82 27 72 27 20 77,5 Ø3,4 35 34 34,3 83,5 77,5 Mounting cutout when used without housing Classifications eCl@ss eCl@ss 5.1 27143424 eCl@ss 6.0 27143424 04/13/2017   Page 2 / 6 https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Classifications eCl@ss eCl@ss 7.0 27440209 eCl@ss 8.0 27440205 eCl@ss 9.0 27440205 ETIM ETIM 5.0 EC000438 Approvals Approvals Approvals EAC / CSA / UL Recognized Ex Approvals Approval details EAC      EAC-Zulassung CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/  13631     mm²/AWG/kcmil 16 Nominal current IN 11 A Nominal voltage UN 600 V UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     mm²/AWG/kcmil 16 Nominal current IN 14 A Nominal voltage UN 600 V  E118976 04/13/2017   Page 3 / 6 https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Accessories Accessories Adapter plate Adapter plate - HC-B 24-ADP-B 16-GY - 1660449 HEAVYCON adapter plate, type B24 on B16, for panel cutouts of type B24, gray     Coding element Coding profile - CP-HC - 1686478 Coding profile, 4 coding profiles per strip, for insertion in coding keyways     Coding element - HC-CBU - 1676860 Coding socket for coding up to 16 connectors     Coding bolt - HC-CB - 1772722 Coding pin, prevents mismating of up to six connectors with an identical number of positions     04/13/2017   Page 4 / 6 https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Accessories Coding element - HC-CST - 1676857 Coding peg for coding up to 16 connectors     Docking frame Docking frames - HC-B 16-ANDOCK - 1586138 Docking frame for racks, for contact inserts of B16 type, with four M5 flat headed screws, rack balance x/y axis +- 1.5 mm     Mounting material Screw - HC-B-PES - 1604997 PE screw, for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64     PE multiplier - HC-B-3PE - 1644326 PE multiplier, for three PE connections, for HC-B (besides HC-B..E..ZZ) / HC-BB / HC-DD / HC-D40 / HC-D64 contact inserts     Strain relief clamp - HC-B-ZG - 1685327 Strain relief clamps contact inserts of series: B-, BB-, D 40, D 64, DD and HV, straight cable exit     04/13/2017   Page 5 / 6 https://www.phoenixcontact.com/us/products/1423019 Contact insert - HC-B16-I-TPT-M - 1423019 Accessories Strain relief clamp - HC-B-ZS - 1685330 Strain relief clamps contact inserts of series: B-, BB-, D 40, D 64, DD and HV, lateral cable exit     Plug assembly frame Connector assembly frame - HC-SMR-B16 - 1687972 HEAVYCON connector assembly frame, for contact inserts of type B16     Plug mounting plate Connector assembly frame - HC-SMP 125-B16-AMQ - 1660973 HEAVYCON connector assembly frame with panel mounting base with double locking latch, for contact inserts of type B16     Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 6 / 6
