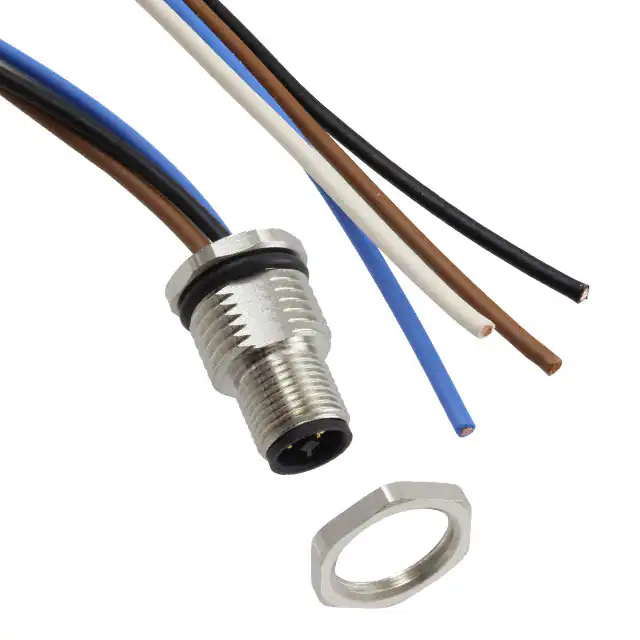

https://www.phoenixcontact.com/us/products/1424136 Flush-type connector - SACC-DSI-M12MST-4CON-M16/0,5 - 1424136 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Power, 4-position, Plug, M12, T power, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m Your advantages  For compact devices: transmit high power in a confined space  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356693387 Weight per Piece (excluding packing) 60.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 07/30/2019   Page 1 / 4 https://www.phoenixcontact.com/us/products/1424136 Flush-type connector - SACC-DSI-M12MST-4CON-M16/0,5 - 1424136 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 12 A Rated voltage 63 V Rated surge voltage 1.5 kV Number of positions 4 Insulation resistance ≥ 100 MΩ Coding T power Standards/regulations M12 connector IEC 61076-2-111 In line with Signal type/category Power Status display No Overvoltage category III Degree of pollution 3 Test voltage 1.5 kV Connection method Individual wires Insertion/withdrawal cycles > 100 Torque M12 connector Mounting type Rear mounting M16 x 1.5 With flat nut Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA Material, knurls CuZn alloy, nickel-plated Sealing material FKM Additional material specifications PU 2K (Grout material) Cable Cable type UL/cUL stranded hook-up wire Conductor cross section 1.31 mm² AWG signal line 16 Core diameter including insulation 2 mm Wire colors Black, brown, blue, white Material conductor insulation mPPE Conductor material Bare Cu litz wires Standards/specifications M12 connector IEC 61076-2-111 In line with 07/30/2019   Page 2 / 4 https://www.phoenixcontact.com/us/products/1424136 Flush-type connector - SACC-DSI-M12MST-4CON-M16/0,5 - 1424136 Technical data Cable Flame resistance in acc. to UL 1581 VW1 Halogen-free yes Ambient temperature (operation) -40 °C ... 105 °C (cable, fixed installation) -20 °C ... 105 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-111 Flame resistance in acc. to UL 1581 VW1 Halogen-free yes Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 07/30/2019   Page 3 / 4 https://www.phoenixcontact.com/us/products/1424136 Flush-type connector - SACC-DSI-M12MST-4CON-M16/0,5 - 1424136 Classifications UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals cUL Listed / EAC Ex Approvals Approval details cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 63 V Nominal current IN 12 A mm²/AWG/kcmil 16 EAC      FILE E 468743  B.01742 Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 07/30/2019   Page 4 / 4
