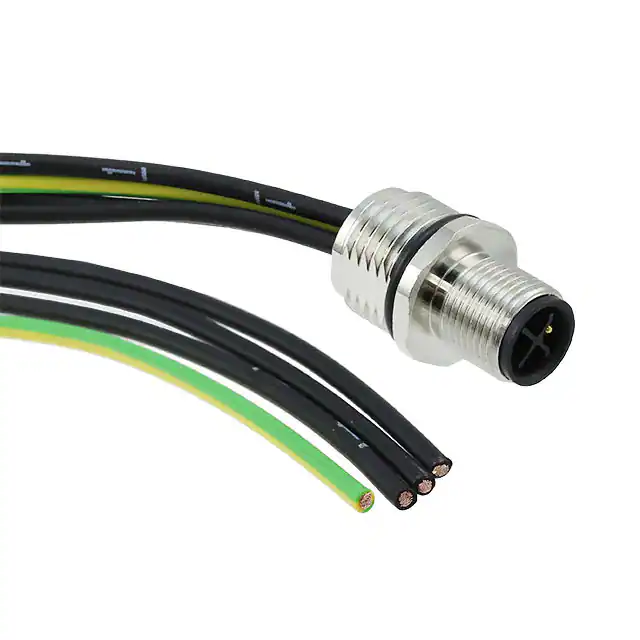

https://www.phoenixcontact.com/us/products/1424139 Flush-type connector - SACC-E-M12MSS-4CON-M16/0,5 PE - 1424139 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type plug, 4-pos., front/screw mounting with M16 thread, with 0.5 m PP litz wire, 4 x 1.5 mm²   Key commercial data Packing unit 11 Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Rated current at 40°C 12 A Rated voltage 630 V Number of positions 4 Contact resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Coding S power Standards/regulations M12 connector Signal type/category Universal Status display No Surge voltage category III Pollution degree 3 28.10.2013   Page 1 / 4 https://www.phoenixcontact.com/us/products/1424139 Flush-type connector - SACC-E-M12MSS-4CON-M16/0,5 PE - 1424139 Technical data General Test voltage 6 kV Connection method Individual wires Insertion/withdrawal cycles > 100 Torque (M12 connector) Mounting type Front mounting M16 x 1.5 With flat nut Material Inflammability class according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA6 Material, knurls CuZn alloy, nickel-plated Sealing material FKM Cable Cable type PP litz wire Conductor cross section 1.5 mm² Wire colors Black numbered, black numbered, black numbered, green-yellow Conductor material Bare Cu litz wires Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 8.0 27449001 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002062 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 28.10.2013   Page 2 / 4 https://www.phoenixcontact.com/us/products/1424139 Flush-type connector - SACC-E-M12MSS-4CON-M16/0,5 PE - 1424139 Classifications UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Accessories Accessories Flat nut Flat nut - SACC-E-MU-M16 - 1504097 Flat nut with M16 thread     Drawings Schematic diagram Dimensioned drawing 26,5 5 14,7 L 3 1 M12x1 M16x1,5 2 Connector pin assignment of M12 plug, 4-pos., S-coded, view of pin side 17 !3 M12 flush-type plug Circuit diagram 1 BK1 2 BK2 3 BK3 4 GN/YE Contact assignment of the M12 socket 28.10.2013   Page 3 / 4 https://www.phoenixcontact.com/us/products/1424139 © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 28.10.2013   Page 4 / 4
