1424231

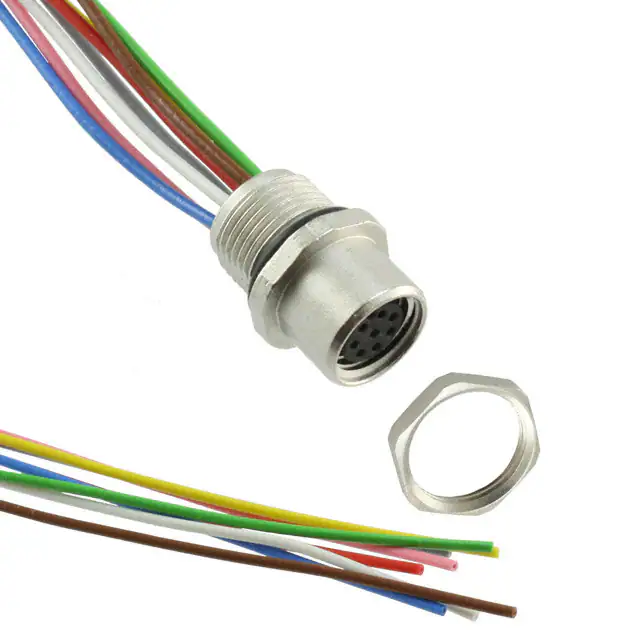

https://www.phoenixcontact.com/us/produkte/1424231 Flush-type connector - SACC-E-M8FS-8CON-M10/0,5 - 1424231 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type socket, 8-pos., M8, front/screw mounting with M10 fastening thread, with 0.5 m TPE litz wire, 8 x 0.14 mm²   Key commercial data Packing unit 0 Minimum order quantity 1 GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data General data Rated current at 40°C 1.5 A Rated voltage 30 V Number of positions 8 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Length of cable 0.5 m Ambient temperature (operation) -25 °C ... 85 °C General characteristics Standards/regulations M8 plug-in connector IEC 61076-2-104 Surge voltage category II Pollution degree 3 Degree of protection IP67 Contact material Cu alloy Contact surface material Au Contact carrier material PA 66 Material, knurls Zinc die-cast, nickel-plated Mounting type Front mounting M10 Connection method Individual wires 17.01.2013   Page 1 / 3 https://www.phoenixcontact.com/us/produkte/1424231 Flush-type connector - SACC-E-M8FS-8CON-M10/0,5 - 1424231 Technical data General characteristics Status display No Conductor data Cable type PVC litz wire AWG signal line 26 Wire colors white, brown, green, yellow, gray, pink, blue, red Conductor material Tin-plated Cu litz wires Ambient temperature (operation) -25 °C ... 85 °C (cable, fixed installation) Classifications ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002635 ETIM 5.0 EC002635 UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 Drawings Dimensioned drawing Schematic diagram ≥4 5 Ø10,1 ±0,1 4 9,1 +01 0,5x45° 6 8 3 2 7 1 M8 plug pin assignment, 8-pos., view of pin side Mounting panel with feed-through hole 17.01.2013   Page 2 / 3 https://www.phoenixcontact.com/us/produkte/1424231 © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 17.01.2013   Page 3 / 3
