1424389

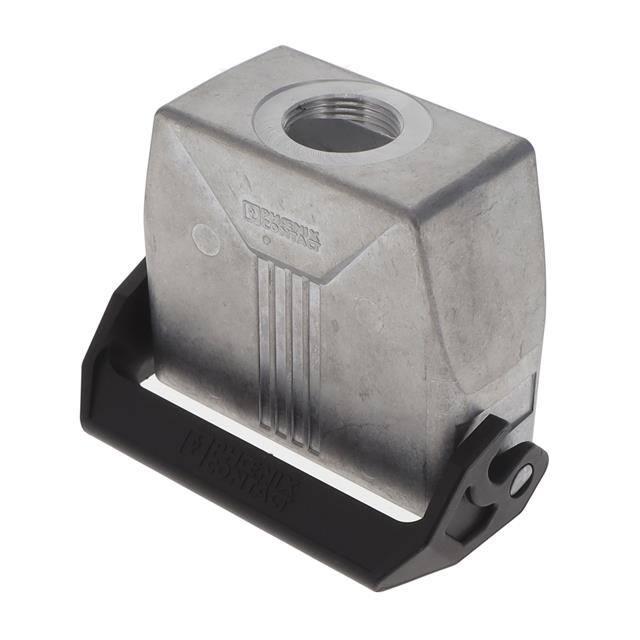

https://www.phoenixcontact.com/us/products/1424389 Housing - HC-STA-D25-CHWS-1TTP16-EL-AL - 1424389 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Coupling housings D25, With single locking latch, Material: Die-cast aluminum, salt water resistant, Cable outlets: 1, straight, Height: 68 mm, Cable gland: none, Gland: no, 1x Pg16, Standard Key Commercial Data Packing unit 1 GTIN GTIN 4055626371290 Technical data Dimensions Height 68 mm Width 30 mm Length 80 mm Ambient conditions Degree of protection of housing (IP) IP66 IP67 Degree of protection of housing (NEMA) 4 (UL 50e) 4X (UL 50e) 12 (UL 50e) Ambient temperature (operation) -40 °C ... 125 °C General Note For contact inserts HC-D25, A16 Size D25 04/13/2017   Page 1 / 2 https://www.phoenixcontact.com/us/products/1424389 Housing - HC-STA-D25-CHWS-1TTP16-EL-AL - 1424389 Technical data General Housing type Coupling housings Color silver Locking type With single locking latch No. of cable outlets 1 Cable exit straight Screw connection none Type of the screw connection 1x Pg16 Housing material Die-cast aluminum, salt water resistant Drawings Dimensional drawing 49,3 30 80 36,4 68 91,6 Dimensional drawing Classifications eCl@ss eCl@ss 5.1 27143424 eCl@ss 6.0 27261203 eCl@ss 7.0 27440202 eCl@ss 8.0 27440202 eCl@ss 9.0 27440202 ETIM ETIM 5.0 EC000437 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 2 / 2
