1424476

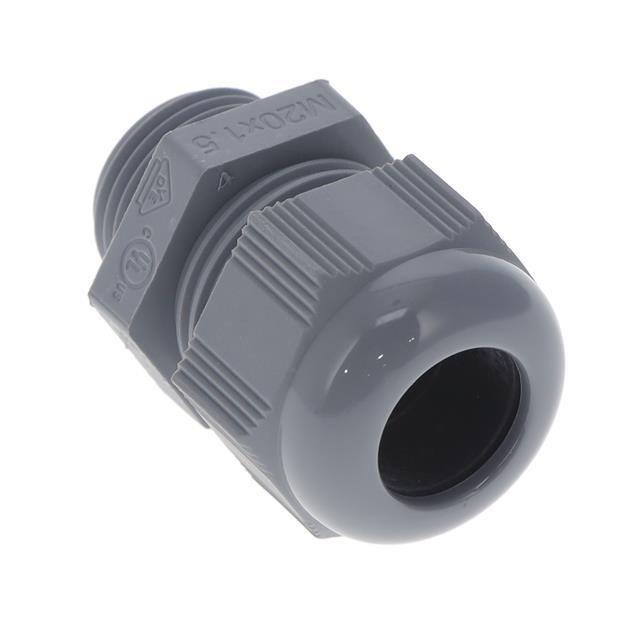

https://www.phoenixcontact.com/us/products/1424476 Cable gland - G-INS-M20-M68N-PNES-GY - 1424476 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Cable gland, Cable gland material: PA, External cable diameter 10 mm ... 14 mm, Shielding: No, Connecting thread: M20 Key Commercial Data Packing unit 1 GTIN GTIN 4055626372662 Custom tariff number 39269097 Technical data Dimensions Length 42 mm Wrench size, union nut 27 mm Wrench size, support 27 mm Hexagon angular dimension 27.8 mm Length of the connecting thread 10 mm Feed-through hole diameter 20.1 mm ... 20.2 mm External cable diameter 10 mm ... 14 mm 10 mm ... 14 mm (for UL 514 B) Ambient conditions Degree of protection IP68 (5 bar / 0.5 h) IP66 Ambient temperature (operation) -20 °C ... 100 °C (static) 04/10/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1424476 Cable gland - G-INS-M20-M68N-PNES-GY - 1424476 Technical data General No. of conductors 1 Cable gland material PA Cable seal material Neoprene Shielded No Thread type on connection side M20 Thread pitch 1.5 mm Torque 3.5 Nm (Union nut) 3.5 Nm (Support) 9 Nm (for UL514 B: union nut / support) Flammability rating according to UL 94 V2 V2 (Housing) Impact category 2 Execution of the strain relief A Assembly instructions 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque Manufacturer BIMED Manufacturer Designation BM-03 Standards and Regulations Flammability rating according to UL 94 V2 Drawings Dimensional drawing !43 30,7 M20 10 27 27 Dimensional drawing Approvals Approvals 04/10/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1424476 Cable gland - G-INS-M20-M68N-PNES-GY - 1424476 Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E199260 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E199260 EAC      EAC-Zulassung cULus Listed       Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/10/2017   Page 3 / 3
