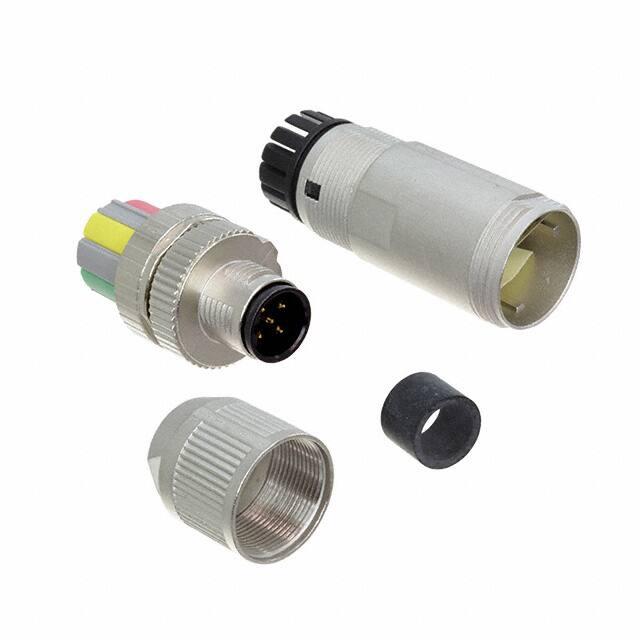

https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Plug straight M12 Screw locking, Bcoded, Push-in connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm Why buy this product  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly  Save time, thanks to installation with SPEEDCON fast locking system  Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces  Reliable signal transmission - 360° shielding in environments with electromagnetic interference  Easy tool free wiring with the push-in connection  Quick and easy installation, thanks to Push-in connection technology Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626376011 Weight per Piece (excluding packing) 22.220 g Custom tariff number 85366990 Country of origin Germany Note Made to Order (non-returnable) Technical data Dimensions External cable diameter 4 mm ... 8 mm Stripping length of the sheath 29 mm Stripping length of the individual wire 8 mm Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C (Plug / socket) 09/22/2017   Page 1 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Technical data Ambient conditions Degree of protection IP65 IP67 General Rated current at 40°C 4A Rated voltage 60 V DC 48 V AC Number of positions 5 Insulation resistance ≥ 100 MΩ Coding B-coded Standards/regulations M12 connector IEC 61076-2-101 Shock, vibration EN 50155:2001 Signal type/category INTERBUS, 500 kbps Status display No Overvoltage category II Degree of pollution 3 Connection method Push-in connection Conductor cross section 0.14 mm² ... 0.75 mm² (without ferrule) 0.08 mm² ... 0.5 mm² (with ferrule) 0.14 mm² ... 0.75 mm² (solid) Conductor cross section AWG 26 ... 18 (without ferrule) 28 ... 20 (with ferrule) Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 knurl) 0.8 Nm (Connector with coupling sleeve) 3 Nm (Pressure nut with coupling sleeve) Assembly instructions The wires can be connected both with ferrules and without ferrules Material Flammability rating according to UL 94 V0 Contact material CuSn Contact surface material Ni/Au Contact carrier material PA 6.6 Material of grip body Zinc die-cast, nickel-plated Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Standard designation Shock, vibration Standards/regulations EN 50155:2001 09/22/2017   Page 2 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Technical data Standards and Regulations Flammability rating according to UL 94 V0 Drawings Schematic diagram 4 Functional drawing 29 3 1 8 12 5 2 Ø 4 - 8 mm Pin assignment M12 male connector, 5-pos., Bcoded, male side 0,14 - 0,75 mm² 1208445 16 1212597 0,8 Nm 13 16 3 Nm Slide the pressure nut and sleeve housing along the cable, strip the cable, shorten the shield, strip the single wires, connect the wires, in the case of a straight sleeve housing gently twist the wires together, stick the shielding foil around the shortened shield, in the case of a cable outside diameter < 6 mm stick an additional shielding foil around the wire pack, screw the sleeve housing to the plug insert, screw the pressure nut tight. Dimensional drawing Ø19 M12 ca. 61 16 13 M12 SPEEDCON plug, straight, shielded Classifications eCl@ss eCl@ss 5.1 27143423 eCl@ss 6.0 27279218 eCl@ss 7.0 27440104 eCl@ss 8.0 27440104 09/22/2017   Page 3 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Classifications eCl@ss eCl@ss 9.0 27440102 ETIM ETIM 5.0 EC002635 ETIM 6.0 EC002635 Approvals Approvals Approvals EAC Ex Approvals Approval details  EAC     EAC-Zulassung Accessories Accessories Connector Ferrule - AI 0,25- 6 YE - 3203024 Ferrule, sleeve length: 6 mm, length: 10.5 mm, color: yellow     Ferrule - A 0,25- 7 - 3202478 Ferrule, sleeve length: 7 mm, length: 7 mm, color: silver     09/22/2017   Page 4 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Accessories Ferrule - A 0,34- 7 - 3009202 Ferrule, sleeve length: 7 mm, length: 7 mm, color: silver     Ferrule - A 0,5 - 6 - 3200218 Ferrule, sleeve length: 6 mm, length: 6 mm, color: silver     Ferrule - AI 0,5 - 6 WH - 3200687 Ferrule, sleeve length: 6 mm, length: 12 mm, color: white     Crimping tool Crimping pliers - CRIMPFOX 6H - 1212046 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm² ... 6 mm², unlockable pressure lock, lateral entry     Data cable by the meter Bus system cable - SAC-4P-950/... - 1543401 Bus system cable, INTERBUS, 4-position, PUR halogen-free, black RAL 9005, shielded, free cable end, on free cable end, cable length: Free entry (0.5 ... 400 m)     Protective cap 09/22/2017   Page 5 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Accessories Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 sockets     Screwdriver tools Tool - SACC BIT M12-D20 - 1208445 Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Shield connection Shielding foil - ALU-SB - 1404531 Shielding foil, for fixing the braided shield of shielded cables. Length: 4 cm, width: 1.2 cm     Stripping tool Stripping tool - WIREFOX 2,5 - 1212368 Stripping tool, for conductors and cables with a conductor cross section from 0.08 to 2.5 mm, self-adjusting, stripping length adjustable up to 15 mm, cutting capacity up to 6 mm² stranded/1.5 mm² solid     Torque tool 09/22/2017   Page 6 / 7 https://www.phoenixcontact.com/gb/products/1424674 Bus system connector - SACC-M12MSB-5PL SH IB - 1424674 Accessories Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD 08 SAC - 1212597 Torque screw driver with preset torque of 0.8 Nm, with 4 mm hexagon for accommodating SAC bits, two-component handle with non-slip grip     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Torque screwdriver - TSD-M 3NM - 1212225 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 1.2 ‑ 3 Nm     Stripping tool - VS-CABLE-STRIP-VARIO - 1657407 Stripping tool, for the multi-level stripping of shielded cables     Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 09/22/2017   Page 7 / 7
