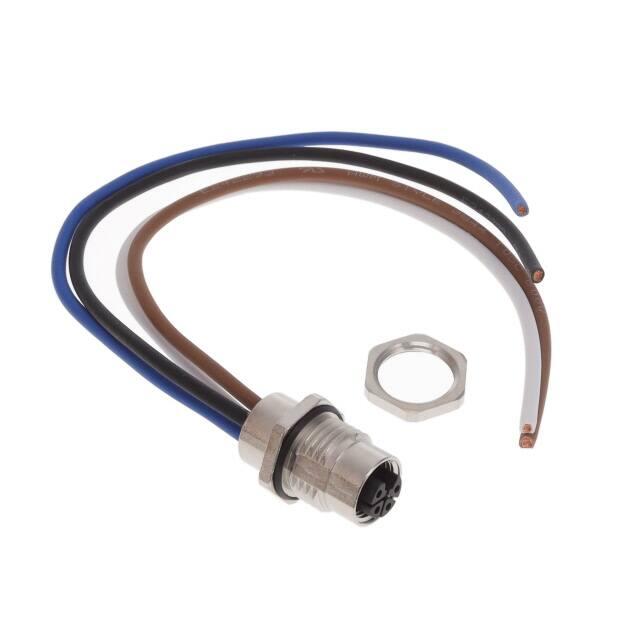

https://www.phoenixcontact.com/us/products/1425589 Flush-type connector - SACC-DSI-M12FSL-4CON-M16XL/0,2 - 1425589 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Power, 4-position, Socket, M12, L - Power, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire Your advantages  For compact devices: transmit high power in a confined space  Easy-to-install, optimized XL housing contour with wrench size 19  Mechanical tightening limitation for long-term-stable gasket  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626424385 Weight per Piece (excluding packing) 40.000 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.2 m Ambient conditions 12/03/2020   Page 1 / 5 https://www.phoenixcontact.com/us/products/1425589 Flush-type connector - SACC-DSI-M12FSL-4CON-M16XL/0,2 - 1425589 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 16 A Rated voltage 63 V Rated surge voltage 1.5 kV Number of positions 4 Coding L - Power Standards/regulations M12 connector IEC 61076-2-111 In line with Signal type/category Power Status display No Overvoltage category III Degree of pollution 3 Test voltage 1.5 kV Connection method Individual wires Insertion/withdrawal cycles > 100 Mounting type Rear mounting M16 x 1.5 Tightening limitation Assembly instructions Tightening limitation Thread type M16 x 1.5 Halogen-free according to IEC 60754-1 Flame resistance in acc. with UL FT-2 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Additional material specifications PU 2K (Grout material) Cable Cable type PEX litz wire 12/03/2020   Page 2 / 5 https://www.phoenixcontact.com/us/products/1425589 Flush-type connector - SACC-DSI-M12FSL-4CON-M16XL/0,2 - 1425589 Technical data Cable Conductor cross section 2.5 mm² AWG signal line 14 Wire colors Brown 1, white 2, blue 3, black 4 Material conductor insulation PE-X Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-111 In line with Ambient temperature (operation) -40 °C ... 85 °C (without mechanical actuation) -40 °C ... 105 °C (cable, fixed installation) -25 °C ... 105 °C (cable, flexible installation) Standards and Regulations Standards/specifications M12 connector IEC 61076-2-111 In line with Flame resistance in acc. with UL FT-2 Halogen-free according to IEC 60754-1 Flammability rating according to UL 94 V0 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Dimensional drawing Schematic diagram 1 4 Ød l 2 3 Technical drawings can be found under Downloads Pin assignment of M12 socket, 4-pos., L-coded, socket side view Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 11.0 27440102 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 8.0 27440102 12/03/2020   Page 3 / 5 https://www.phoenixcontact.com/us/products/1425589 Flush-type connector - SACC-DSI-M12FSL-4CON-M16XL/0,2 - 1425589 Classifications eCl@ss eCl@ss 9.0 27440102 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC      B.01687 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E468743-20180113     Nominal voltage UN 63 V Nominal current IN 16 A mm²/AWG/kcmil 14 Accessories Accessories Screw plug - PROT M12 MS PWR - 1092802 An M12 screw plug for the unoccupied M12 females of the M12 POWER connectors, boxes, and flush-type connectors     12/03/2020   Page 4 / 5 https://www.phoenixcontact.com/us/products/1425589 Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 12/03/2020   Page 5 / 5
