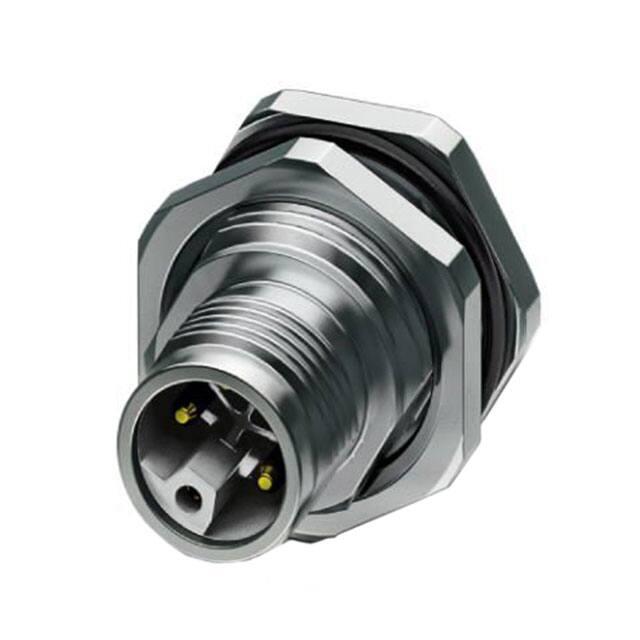

https://www.phoenixcontact.com/us/products/1425590 Flush-type connector - SACC-DSI-M12MSL4FEM16XL-L180GR - 1425590 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Power, 5-position, Plug, straight, M12, L-coded, Rear mounting, M16 x 1.5, Solder pins Your advantages  Easy PCB assembly: one-piece connectors for wave soldering  For compact devices: transmit high power in a confined space  Easy-to-install, optimized XL housing contour with wrench size 19  Mechanical tightening limitation for long-term-stable gasket Key Commercial Data Packing unit 1 pc Minimum order quantity 20 pc GTIN GTIN 4055626428437 Weight per Piece (excluding packing) 19.000 g Custom tariff number 85366990 Country of origin Germany Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 12/03/2020   Page 1 / 4 https://www.phoenixcontact.com/us/products/1425590 Flush-type connector - SACC-DSI-M12MSL4FEM16XL-L180GR - 1425590 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. FE not connected to metal parts that can be touched, no protective function Rated current at 40°C 16 A Rated voltage 63 V Rated surge voltage 1.5 kV Number of positions 5 Coding L - Power Standards/regulations M12 connector IEC 61076-2-111 In line with Signal type/category Power Overvoltage category III Degree of pollution 3 Connection method Solder pins Insertion/withdrawal cycles > 100 Mounting type Rear mounting M16 x 1.5 With flat nut Thread type M16 x 1.5 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Additional material specifications PU 2K (Grout material) Cable Standards/specifications M12 connector IEC 61076-2-111 In line with Standards and Regulations Standards/specifications M12 connector IEC 61076-2-111 In line with Flammability rating according to UL 94 V0 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years 12/03/2020   Page 2 / 4 https://www.phoenixcontact.com/us/products/1425590 Flush-type connector - SACC-DSI-M12MSL4FEM16XL-L180GR - 1425590 Technical data Environmental Product Compliance For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Dimensional drawing Schematic diagram FE 4 1 Ød l 3 2 Technical drawings can be found under Downloads Pin assignment of M12 connector, 5-pos., L-coded, pin side view Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 11.0 27440102 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 8.0 27440102 eCl@ss 9.0 27440102 Approvals Approvals Approvals cULus Recognized / EAC Ex Approvals Approval details 12/03/2020   Page 3 / 4 https://www.phoenixcontact.com/us/products/1425590 Flush-type connector - SACC-DSI-M12MSL4FEM16XL-L180GR - 1425590 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 63 V Nominal current IN 16 A EAC      E468743-20180113  B.01687 Accessories Accessories Protective cap Sealing cap - PROT-M12 FS - 1560251 M12 sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Sealing cap - PROT-M12 FS-M - 1430488 M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 12/03/2020   Page 4 / 4
