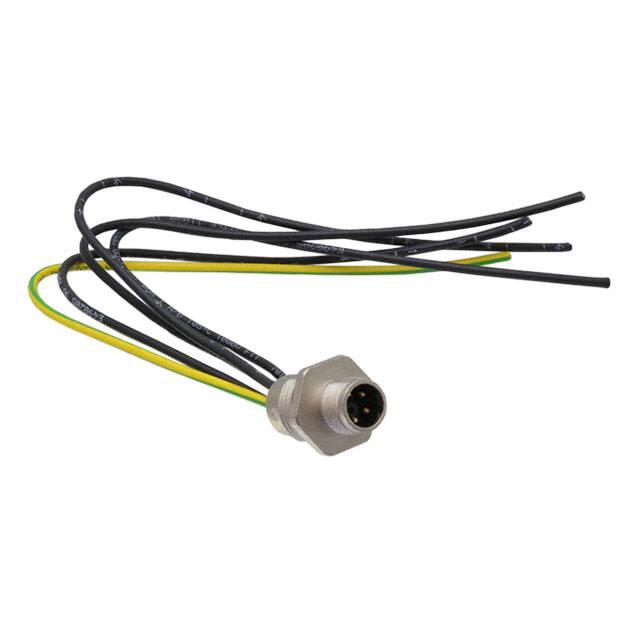

https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Power, 5-position, Plug, M12, K - Power, Front mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire Your advantages  For compact devices: transmit high power in a confined space  Easy-to-install, optimized XL housing contour with wrench size 19  Mechanical tightening limitation for long-term-stable gasket  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626425849 Weight per Piece (excluding packing) 40.000 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.2 m Ambient conditions 12/03/2020   Page 1 / 6 https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 12 A Rated voltage 630 V Rated surge voltage 6 kV Number of positions 5 Coding K - Power Standards/regulations M12 connector IEC 61076-2-111 In line with Signal type/category Power Status display No Overvoltage category III Degree of pollution 3 Test voltage 6 kV Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 0.8 Nm ... 1.3 Nm (Installation-side) Mounting type Front mounting M16 x 1.5 Tightening limitation Thread type M16 x 1.5 Halogen-free yes Flame resistance in acc. to UL 1581 VW1 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Additional material specifications PU 2K (Grout material) Cable Cable type UL/cUL stranded hook-up wire 12/03/2020   Page 2 / 6 https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Technical data Cable Conductor cross section 1.31 mm² AWG signal line 16 Core diameter including insulation 2.2 mm Wire colors Black 1, black 2, black 3, black 4, green/yellow Material conductor insulation mPPE Conductor material Bare Cu litz wires Standards/specifications M12 connector IEC 61076-2-111 In line with Ambient temperature (operation) -40 °C ... 105 °C (cable, fixed installation) -20 °C ... 105 °C (cable, flexible installation) Standards and Regulations Standards/specifications M12 connector IEC 61076-2-111 In line with Flame resistance in acc. to UL 1581 VW1 Halogen-free yes Flammability rating according to UL 94 V0 Safety note WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. • The products are suitable for applications in plant, controller, and electrical device engineering. • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. • Assembled products may not be manipulated or improperly opened. • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). • When using the product in direct connection with third-party manufacturers, the user is responsible. • For operating voltages > 50 V AC, conductive connector housings must be grounded • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. • Observe the corresponding technical data. You will find information: o On the product o On the packing label 12/03/2020   Page 3 / 6 https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Technical data Standards and Regulations o In the supplied documentation o Online at phoenixcontact.com/products under the product • Only use tools recommended by Phoenix Contact • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products • Ensure that the protective or functional ground has been properly connected. • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Dimensional drawing Schematic diagram PE 4 1 Ød 2 3 l Technical drawings can be found under Downloads Connector pin assignment of M12 plug, 5-pos., K-coded, pin side view I [A] Diagram 25 20  15 10 5 2  = 4x1,31 mm 0 0 10 20 30 40 50 60 70 80 90  [°C] I = current strength, T = ambient temperature 12/03/2020   Page 4 / 6 https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 11.0 27440102 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 8.0 27440102 eCl@ss 9.0 27440102 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC      B.01687 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E468743-20180113     Nominal voltage UN 600 V Nominal current IN 12 A mm²/AWG/kcmil 16 Accessories Accessories Flat nut 12/03/2020   Page 5 / 6 https://www.phoenixcontact.com/us/products/1425635 Flush-type connector - SACC-E-M12MSK4PE-M16XL/0,2-1,5 - 1425635 Accessories Flat nut - SACC-E-MU-M16 - 1504097 Flat nut with M16 thread     Protective cap Sealing cap - PROT-M12 FS - 1560251 M12 sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Sealing cap - PROT-M12 FS-M - 1430488 M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 12/03/2020   Page 6 / 6
