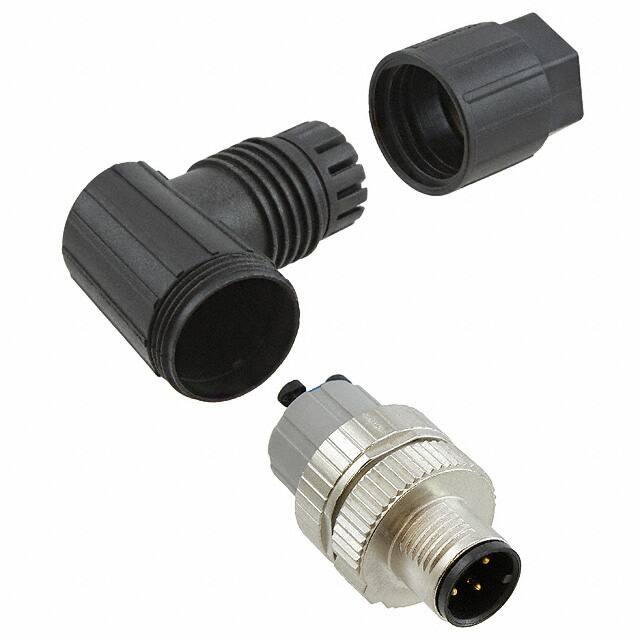

https://www.phoenixcontact.com/us/produkte/1432606 Connectors - SACC-MR-4SC M SCO - 1432606 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator connector, plug, angled, 4-pos., M12 SPEEDCON, A-coded, spring-cage connection, metal knurl, cable diameter max. 8 mm   Key commercial data Packing unit 0 Minimum order quantity 1 Catalog page Page 72 (PC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Volume resistance ≤ 8 mΩ Insulation resistance ≥ 100 MΩ Ambient temperature (operation) -40 °C ... 85 °C (Male connector / female connector) General characteristics Standards/regulations M12 connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP67 Torque 0.4 Nm (M12 knurl) Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU Material of grip body PA 66 Material, knurls Nickel-plated brass 08.08.2012   Page 1 / 5 https://www.phoenixcontact.com/us/produkte/1432606 Connectors - SACC-MR-4SC M SCO - 1432606 Technical data General characteristics Sealing material NBR Connection method Spring-cage conn. Conductor cross section 0.14 mm² ... 0.5 mm² AWG conductor cross section 26 ... 20 Assembly instructions The connector pin assignment can be rotated 45° to the cable outlet External cable diameter 4 mm ... 8 mm Status display No Classifications eclass eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27279218 eCl@ss 7.0 27279218 etim ETIM 3.0 EC001855 ETIM 4.0 EC002062 unspsc UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Recognized / cUL Recognized / GOST / cULus Recognized Ex Approvals Approvals submitted 08.08.2012   Page 2 / 5 https://www.phoenixcontact.com/us/produkte/1432606 Connectors - SACC-MR-4SC M SCO - 1432606 Approvals Approval details UL Recognized      Nominal current IN 4A Nominal voltage UN 300 V cUL Recognized      Nominal current IN 4A Nominal voltage UN 300 V GOST  cULus Recognized  Accessories Accessories Cable/conductor Sensor/Actuator cable - SAC-4P-100,0-PUR/0,25 - 1501692 Cable ring, PUR halogen-free black, 4-pos., conductor colors: brown / white / blue / black, cable length: 100 m     Sensor/Actuator cable - SAC-4P-100,0-PUR/0,34 - 1501663 Cable ring, PUR halogen-free black, 4-pos., conductor colors: brown / white / blue / black, cable length: 100 m     Protection and sealing elements 08.08.2012   Page 3 / 5 https://www.phoenixcontact.com/us/produkte/1432606 Connectors - SACC-MR-4SC M SCO - 1432606 Accessories Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 sockets     Tools Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Tool - SACC BIT M12-D20 - 1208445 Nut for assembling SACC M12 connectors for free assembly, excluding M12 connectors with QUICKON fast connection technology, for 4 mm hexagonal drive     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Drawings 08.08.2012   Page 4 / 5 https://www.phoenixcontact.com/us/produkte/1432606 Connectors - SACC-MR-4SC M SCO - 1432606 Schematic diagram 4 Dimensioned drawing Ø19 3 M12 1 2 ca. 51 Pin assignment M12 plug, 4-pos., A-coded, view plug side 15 ca. 43 M12 SPEEDCON connector, angled Functional drawing 35 11 0,14 - 0,5 mm² Ø 4 - 8 mm 15 Stripping length 28 mm, for angled design 35 mm. Stripping the cable. Strip individual wires, slide the pressure nut onto the cable. Thread the wires through the housing and connect them. Screw the body of the connector onto the housing, tighten the pressure nut. © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 08.08.2012   Page 5 / 5
