Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

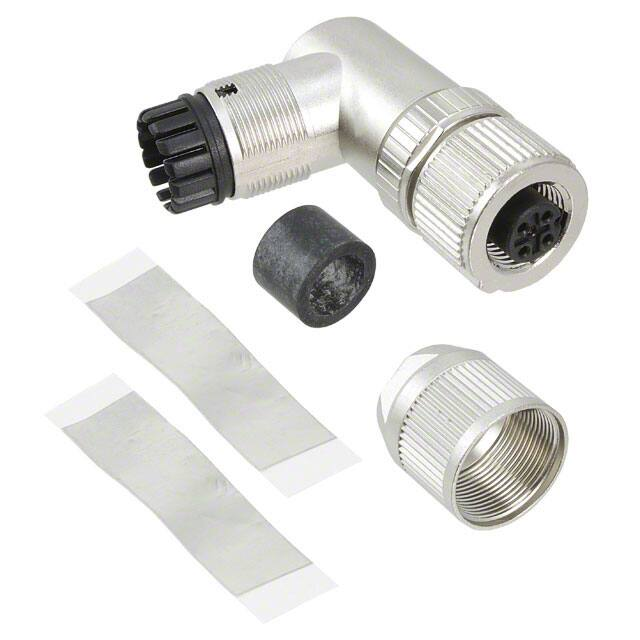

Sensor/actuator connector, socket, angled, 5-pos., M12 SPEEDCON, shielded, A-coded, spring-cage connection,
metal knurl, cable diameter max. 8 mm
Product Features
Safe use in the field, thanks to a high degree of protection
Flexible: plug-in connectors for on-site assembly
Save time, thanks to installation with SPEEDCON rapid interlock system
Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces
Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Key commercial data
Packing unit
1 PCE
Catalog page
Page 72 (PC-2011)
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
General data
Rated current at 40°C
4A
Rated voltage
60 V
Number of positions
5
Volume resistance
≤ 8 mΩ
Insulation resistance
≥ 100 MΩ
Ambient temperature (operation)
-40 °C ... 85 °C (Plug / socket)
11.04.2013 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Technical data
General characteristics
Standards/regulations
M12 plug-in connector IEC 61076-2-101
Coding
A - standard
Surge voltage category
II
Pollution degree
3
Degree of protection
IP65/67
Insertion/withdrawal cycles
≥ 100
Torque
0.4 Nm (M12 knurl)
Torque
0.8 Nm (Connector with coupling sleeve)
Torque
3 Nm (Pressure nut with coupling sleeve)
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
TPU
Material of grip body
Zinc die-cast, nickel-plated
Material, knurls
Nickel-plated brass
Sealing material
NBR
Connection method
Spring-cage conn.
Conductor cross section
0.14 mm² ... 0.5 mm²
AWG conductor cross section
26 ... 20
Assembly instructions
AWG 18 wire cross section upon request
External cable diameter
4 mm ... 8 mm
Status display
No
Stripping length of the sheath
35 mm
Stripping length of the individual wire
11 mm
Classifications
ETIM
ETIM 3.0
EC001855
ETIM 4.0
EC002062
ETIM 5.0
EC002062
UNSPSC
UNSPSC 11
31251501
UNSPSC 12.01
31251501
UNSPSC 13.2
31251501
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
11.04.2013 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Classifications
eCl@ss
eCl@ss 4.0
27250313
eCl@ss 4.1
27250313
eCl@ss 5.0
27143423
eCl@ss 5.1
27143423
eCl@ss 6.0
27143423
eCl@ss 7.0
27449001
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
4A
Nominal voltage UN
125 V
cUL Recognized
Nominal current IN
4A
Nominal voltage UN
125 V
11.04.2013 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Approvals
GOST
cULus Recognized
Accessories
Accessories
Cable/conductor
Sensor/Actuator cable - SAC-5P-100,0-PUR/SH-0,34 - 1501728
Cable ring, PUR halogen-free black, 5-pos., shielded, conductor colors: Brown/white/blue/black/gray, cable length: 100 m
Protection and sealing elements
Screw plug - PROT-M12 MS-PA-CHAIN - 1430899
M12 sealing cap with fixing band, for sensor cables, for free M12 sockets
Tools
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
11.04.2013 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Accessories
Torque screwdriver - TSD 08 SAC - 1212597
Torque screw driver with preset torque of 0.8 Nm, with 4 mm hexagon for accommodating SAC bits, two-component
handle with non-slip grip
Tool - SACC BIT M12-D20 - 1208445
Nut for assembling SACC M12 connectors for free assembly, excluding M12 connectors with QUICKON fast connection
technology, for 4 mm hexagonal drive
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Torque screwdriver - TSD-M 3NM - 1212225
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 1.2 ‑ 3 Nm
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
11.04.2013 Page 5 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Accessories
Shielding foil - ALU-SB - 1404531
Aluminum shielding tape, for fixing the braided shield of shielded cables. Length: 4 cm, width: 1.2 cm
Drawings
Schematic diagram
3
Dimensioned drawing
4
Ø19
M12
5
1
Pin assignment M12 socket, 5-pos., A-coded,
socket side view
ca. 48
2
13
ca. 41
Socket M12-SPEEDCON, angled, shielded
11.04.2013 Page 6 / 7
https://www.phoenixcontact.com/us/produkte/1432677
Plug-in connector - SACC-FR-5SC SH SCO - 1432677
Functional drawing
35
12
11
0,14 - 0,5 mm²
Ø 4 - 8 mm
13
Strip the cable, shorten the shield, strip the single wires, push the pressure nut onto the cable. Slide the wires through the sleeve housing and connect,
stick shielding foil around the shortened shield, in the case of straight sleeve housing, gently twist the wires together, screw sleeve housing to the plug
insert, screw the pressure nut tight.
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
11.04.2013 Page 7 / 7
