Connector - SACC-MRB-5SC SH SCO - 1432693
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

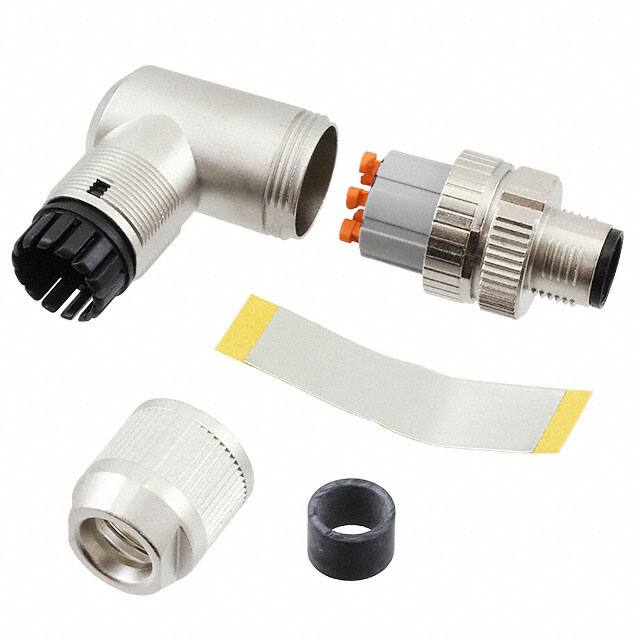

Connector, 5-position, shielded, Plug angled M12 SPEEDCON, Coding: B, Spring-cage connection, knurl
material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Your advantages
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save time, thanks to installation with SPEEDCON fast locking system
Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces
Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356348386
Technical data
Dimensions
External cable diameter
4 mm ... 8 mm
Stripping length of the sheath
35 mm
Stripping length of the individual wire
10 mm
Ambient conditions
Ambient temperature (operation)
-40 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (Plug / socket)
Degree of protection
IP67
General
Rated current at 40°C
4A
Rated voltage
60 V DC
12/21/2021 Page 1 / 6
https://www.phoenixcontact.com/pi/products/1432693
Connector - SACC-MRB-5SC SH SCO - 1432693
Technical data
General
48 V AC
Number of positions
5
Insulation resistance
≥ 100 MΩ
Coding
B-coded
Standards/regulations
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
Status display
No
Overvoltage category
II
Degree of pollution
3
Connection method
Spring-cage connection
Conductor cross section
0.14 mm² ... 0.5 mm²
Conductor cross section AWG
26 ... 20
Insertion/withdrawal cycles
≥ 100
Torque
0.4 Nm (M12 knurl)
0.8 Nm (Connector with coupling sleeve)
3 Nm (Pressure nut with coupling sleeve)
Assembly instructions
AWG 18 wire cross section upon request
The connector pin assignment can be rotated 45° to the cable outlet
The wires can be connected both with ferrules and without ferrules
Material
Flammability rating according to UL 94
V0
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
TPU
Material of grip body
Zinc die-cast, nickel-plated
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
NBR
Cable
Standards/specifications
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
Standards and Regulations
Standards/specifications
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
Connection in acc. with standard
CUL
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
12/21/2021 Page 2 / 6
