Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

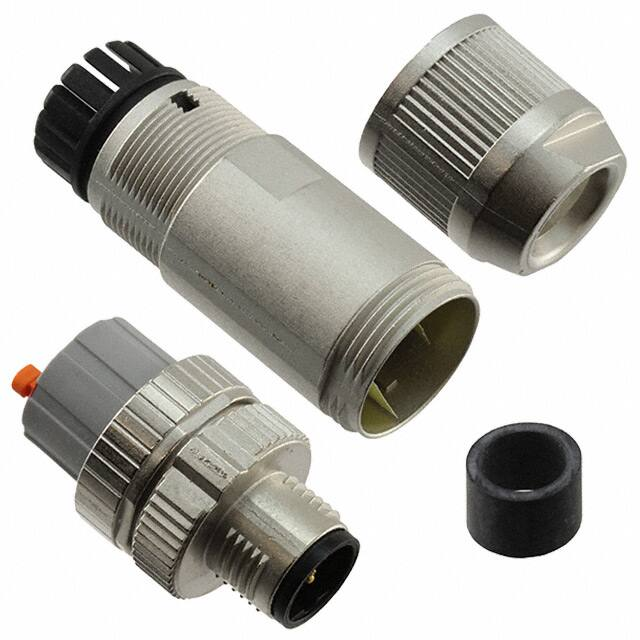

Data connector, PROFIBUS (12 Mbps), 2-position, shielded, Plug straight M12 SPEEDCON, Coding: B,
Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Your advantages
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save time, thanks to installation with SPEEDCON fast locking system
Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces
Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356348492
Technical data
Dimensions
External cable diameter
4 mm ... 8 mm
Stripping length of the sheath
33 mm
Stripping length of the individual wire
10 mm
Ambient conditions
Ambient temperature (operation)
-40 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (Plug / socket)
Degree of protection
IP67
General
Rated current at 40°C
4A
Rated voltage
60 V DC
12/21/2021 Page 1 / 6
https://www.phoenixcontact.com/pi/products/1432842
Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Technical data
General
48 V AC
Number of positions
2
Insulation resistance
≥ 100 MΩ
Coding
B-coded
Standards/regulations
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
Signal type/category
PROFIBUS, 12 Mbps
Status display
No
Overvoltage category
II
Degree of pollution
3
Connection method
Spring-cage connection
Conductor cross section
0.14 mm² ... 0.5 mm²
Conductor cross section AWG
26 ... 20
Insertion/withdrawal cycles
≥ 100
Torque
0.4 Nm (M12 knurl)
0.8 Nm (Connector with coupling sleeve)
3 Nm (Pressure nut with coupling sleeve)
Assembly instructions
AWG 18 wire cross section upon request
The wires can be connected both with ferrules and without ferrules
Material
Flammability rating according to UL 94
V0
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
TPU
Material of grip body
Zinc die-cast, nickel-plated
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
NBR
Standards and Regulations
Standards/specifications
M12 connector IEC 61076-2-101
Shock, vibration EN 50155:2001
Connection in acc. with standard
CUL
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
12/21/2021 Page 2 / 6
https://www.phoenixcontact.com/pi/products/1432842
Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Schematic diagram
4
Functional drawing
33
3
1
10
12
5
2
Ø 4 - 8 mm
Pin assignment M12 plug, 5-pos., B-coded
0,14 - 0,5 mm²
20 mm
16
0,8 Nm
13
16
3 Nm
Slide the pressure nut and sleeve housing along the cable, strip the cable, shorten the shield,
strip the single wires, connect the wires, in the case of a straight sleeve housing gently twist the
wires together, stick the shielding foil around the shortened shield, in the case of a cable outside
diameter < 6 mm stick an additional shielding foil around the wire pack, screw the sleeve housing
to the plug insert, screw the pressure nut tight.
Dimensional drawing
Ø19
M12
ca. 61
16
13
M12 SPEEDCON plug, straight, shielded
Classifications
eCl@ss
eCl@ss 4.0
27250313
eCl@ss 4.1
27250313
eCl@ss 5.0
27143423
eCl@ss 5.1
27143400
eCl@ss 6.0
27279200
eCl@ss 7.0
27440104
eCl@ss 9.0
27440102
ETIM
ETIM 3.0
EC001855
12/21/2021 Page 3 / 6
https://www.phoenixcontact.com/pi/products/1432842
Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Classifications
ETIM
ETIM 4.0
EC002062
ETIM 6.0
EC002062
UNSPSC
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
UNSPSC 11
31251501
UNSPSC 12.01
31251501
UNSPSC 13.2
39121413
UNSPSC 19.0
39121413
Accessories
Accessories
Data cable by the meter
Bus system cable - SAC-2P-910/... - 1511491
Bus system cable, PROFIBUS, 2-position, PUR halogen-free, violet RAL 4001, shielded, free cable end, on free
cable end, cable length: Free entry (0.5 ... 400 m)
Protective cap
Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs
Screwdriver tools
Tool - SACC BIT M12-D20 - 1208445
Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive
12/21/2021 Page 4 / 6
https://www.phoenixcontact.com/pi/products/1432842
Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Accessories
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Shield connection
Shielding foil - ALU-SB - 1404531
Shielding foil, for fixing the braided shield of shielded cables. Length: 4 cm, width: 1.2 cm
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD 08 SAC - 1212597
Torque screw driver with preset torque of 0.8 Nm, with 4 mm hexagon for accommodating SAC bits, two-component
handle with non-slip grip
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
12/21/2021 Page 5 / 6
https://www.phoenixcontact.com/pi/products/1432842
Data connector - SACC-MSB-2SC SH PB SCO - 1432842
Accessories
Torque screwdriver - TSD-M 3NM - 1212225
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 1.2 ‑ 3 Nm
Stripping tool - VS-CABLE-STRIP-VARIO - 1657407
Stripping tool, for the multi-level stripping of shielded cables
