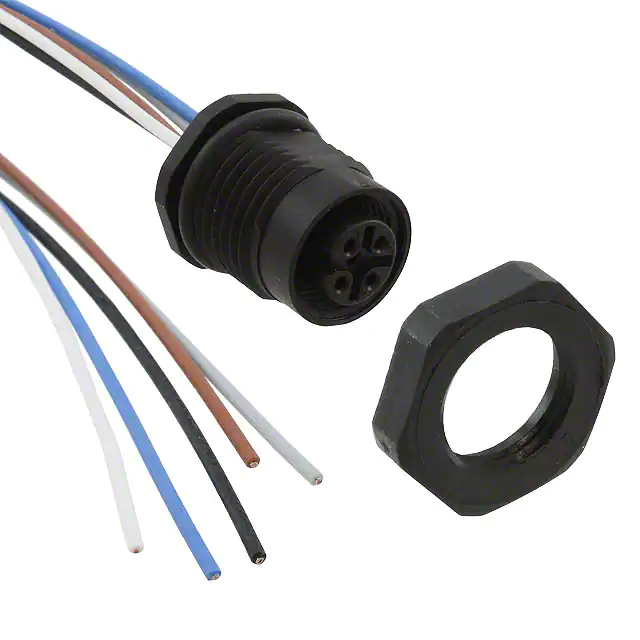

https://www.phoenixcontact.com/gb/products/1436356 Panel feed-through - SACC-DSI-M12FS-5CON-PG9/0,5 P - 1436356 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator flush-type connector, socket, 5-pos., M12, A-coded, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.25 mm², plastic version Why buy this product ■ ■ ■ ■ ■ Pre-assembled with litz wires for immediate use Customer-specific assemblies and litz wire lengths available Sealed on the litz wire side for optimum leak-tightness Standard pin assignments and codings for signal transmission with a uniform design-in design For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 STK GTIN Weight per Piece (excluding packing) 13.69 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using 08/06/2016   Page 1 / 5 https://www.phoenixcontact.com/gb/products/1436356 Panel feed-through - SACC-DSI-M12FS-5CON-PG9/0,5 P - 1436356 Technical data General a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 5 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Rear mounting Pg9 With flat nut Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Au Contact carrier material PA 66 Material, knurls PA 66 Sealing material Viton Cable Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 24 Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors Black, brown,blue, white, gray Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 80 Ω/km Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) 08/06/2016   Page 2 / 5 https://www.phoenixcontact.com/gb/products/1436356 Panel feed-through - SACC-DSI-M12FS-5CON-PG9/0,5 P - 1436356 Technical data Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Drawings Dimensional drawing Schematic diagram max.4,5 3 4 Ø15,3 +0,1 5 13,5 +0,1 1x45° 2 1 Pin assignment M12 socket, 5-pos., A-coded, socket side view Housing cutout for M12 fastening thread, mounting panel with feedthrough hole (alternative with surface as protection against rotation) Dimensional drawing Circuit diagram 19,5 500 17 1 BN 2 WH 4 BK 3 BU 5 GY 13,4 PG9 2 5 22 Contact assignment of the M12 socket M12 flush-type connector Classifications eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002062 08/06/2016   Page 3 / 5 https://www.phoenixcontact.com/gb/products/1436356 Panel feed-through - SACC-DSI-M12FS-5CON-PG9/0,5 P - 1436356 Classifications ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals EAC / EAC Ex Approvals Approvals submitted Approval details EAC  EAC  Accessories Accessories Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     08/06/2016   Page 4 / 5 https://www.phoenixcontact.com/gb/products/1436356 Panel feed-through - SACC-DSI-M12FS-5CON-PG9/0,5 P - 1436356 Accessories Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Seal Flat gasket - SACC-PG9-SEAL CLM - 1556320 Pg9 flat gasket for the rear mounting of M12 flush-type connectors with Pg9 fastening threads     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 08/06/2016   Page 5 / 5
