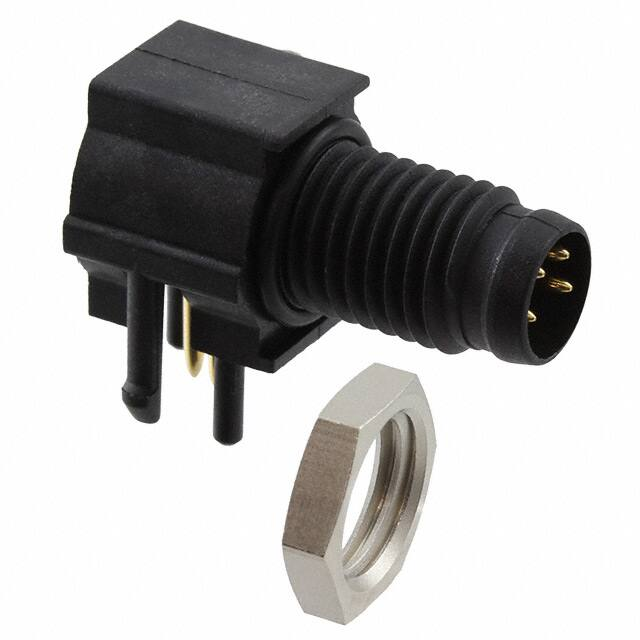

https://www.phoenixcontact.com/pi/products/1440096 Device connector, rear mounting - SACC-DSIV-M 8MS-4CON-L 90 - 1440096 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type connector, male, 4-pos., M8, rear/screw mounting with M8 thread, with polarity protection, with angled solder connection Your advantages  Standard pin assignments and codings for signal transmission with a uniform design-in design Key Commercial Data Packing unit 20 pc GTIN GTIN 4046356480888 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C -25 °C ... 85 °C Degree of protection IP67 General Rated current at 40°C 4A Rated voltage 48 V AC 60 V DC Rated surge voltage 1.5 kV Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M8 connector IEC 61076-2-104 Status display No 12/22/2021   Page 1 / 4 https://www.phoenixcontact.com/pi/products/1440096 Device connector, rear mounting - SACC-DSIV-M 8MS-4CON-L 90 - 1440096 Technical data General Overvoltage category II Degree of pollution 3 Connection method Solder pins Mounting type Rear mounting M8 x 1 With flat nut Thread type M8 x 1 Material Flammability rating according to UL 94 HB Contact material Cu alloy Contact surface material Au Contact carrier material PA 6.6 Material, knurls Nickel-plated brass Sealing material NBR Cable Standards/specifications M8 connector IEC 61076-2-104 Standards and Regulations Standards/specifications M8 connector IEC 61076-2-104 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 25; For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram 4 1 3 Pin assignment M8 plug, 4-pos., view male side Ø8,1 +0,1 2 Dimensional drawing 0,5x45° Mounting panel with feed-through hole 12/22/2021   Page 2 / 4 https://www.phoenixcontact.com/pi/products/1440096 Device connector, rear mounting - SACC-DSIV-M 8MS-4CON-L 90 - 1440096 Drilling diagram Dimensional drawing 22 12 10 Drilling diagram 4,5 6 16,5 M8x1 12 1-3,5 M8 flush-type plug Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 11.0 27440102 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002061 ETIM 6.0 EC002061 ETIM 7.0 EC002635 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 UNSPSC 18.0 39121413 UNSPSC 19.0 39121413 UNSPSC 20.0 39121413 UNSPSC 21.0 39121413 Approvals Approvals 12/22/2021   Page 3 / 4 https://www.phoenixcontact.com/pi/products/1440096 Device connector, rear mounting - SACC-DSIV-M 8MS-4CON-L 90 - 1440096 Approvals Approvals EAC Ex Approvals Approval details EAC      B.01687 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/22/2021   Page 4 / 4
