1440779

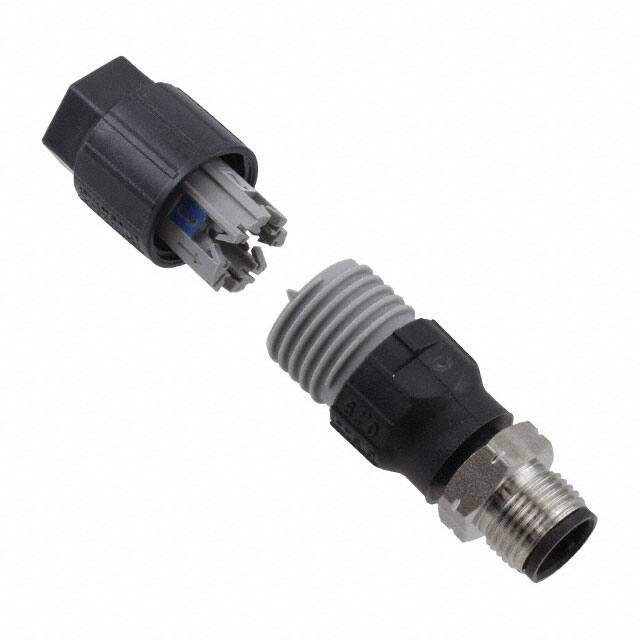

https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Connector, Universal, 4-position, Plug straight M12, Coding: A, Insulation displacement connection, knurl material: Stainless steel 1.4404, external cable diameter 4 mm ... 8 mm Your advantages  Safe use in the field, thanks to a high degree of protection  Insulation displacement connection: innovative and time-saving assembly without stripping the single wire Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356517010 Technical data Dimensions Wrench size, union nut 15 mm External diameter 4 mm ... 8 mm Stripping length of the sheath 40 mm Length 54 mm Ambient conditions Ambient temperature (operation) -25 °C ... 80 °C (Plug / socket) Ambient temperature (assembly) -5 °C ... 50 °C (During assembly) Ambient temperature (operation) -25 °C ... 80 °C (Plug / socket) Degree of protection IP65 IP67 General Note NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending 12/21/2021   Page 1 / 6 https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Technical data General forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. Rated current at 40°C 4A Rated voltage 250 V AC 250 V DC Number of positions 4 Color handle area black Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector according to IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category III Degree of pollution 3 Connection method Insulation displacement connection Conductor cross section 0.34 mm² ... 0.75 mm² Conductor cross section AWG 22 ... 18 Wire diameter including insulation 1.3 mm ... 2.6 mm Frequency of connections between conductors of the same cross section 10 Wire insulation material PVC / PE / PP / rubber Structure of individual litz in acc. with VDE 0295 / smallest wire diameter Class 2-6 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 knurl) 1.5 Nm (Pressure nut) Assembly instructions AWG 18 wire cross section upon request Material Flammability rating according to UL 94 V0 Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU Material of grip body PA 6 Material, knurls Stainless steel 1.4404 Sealing material Neoprene (Cable clamping) Cable Standards/specifications M12 connector according to IEC 61076-2-101 Standards and Regulations Standards/specifications M12 connector according to IEC 61076-2-101 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e 12/21/2021   Page 2 / 6 https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Technical data Environmental Product Compliance No hazardous substances above threshold values Drawings Schematic diagram 4 3 1 2 Dimensional drawing ~ ~ 54 14 Ø18,4 Pin assignment M12 plug, 4-pos., A-coded, view plug side 13 M12 plug, straight, QUICKON connection: 0.34 mm² ... 0.75 mm² Functional drawing 0,34 – 0,75 mm² Ø 4,0 – 8,0 mm PVC/PP/ PE/rubber 40 1,5 Nm 15 15 0,4 Nm Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 11.0 27440102 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27279200 eCl@ss 7.0 27440104 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002061 12/21/2021   Page 3 / 6 https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Classifications ETIM ETIM 4.0 EC002061 ETIM 6.0 EC002062 ETIM 7.0 EC002635 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 UNSPSC 13.2 39121413 UNSPSC 18.0 39121413 UNSPSC 19.0 39121413 UNSPSC 20.0 39121413 UNSPSC 21.0 39121413 Approvals Approvals Approvals DNV GL / EAC / EAC Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00002K4 EAC      RU CDE.AI30.B.01102 EAC      RU CDE.BL08.B.00511 Accessories Accessories 12/21/2021   Page 4 / 6 https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Accessories Protective cap Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs     Screwdriver tools Tool - SAC BIT M12-W14 - 1212513 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a hexagonal knurl wrench size of 14 mm, with 4 mm hexagonal drive     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Socket spanner Socket wrench - QSS 15 - 1641992 Allen wrench, for loosening and fastening the QUICKON union nut, WAF 15 mm     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     12/21/2021   Page 5 / 6 https://www.phoenixcontact.com/pi/products/1440779 Connector - SACC-M12MS-4QO-0,75-VA - 1440779 Accessories Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/21/2021   Page 6 / 6
