1441778

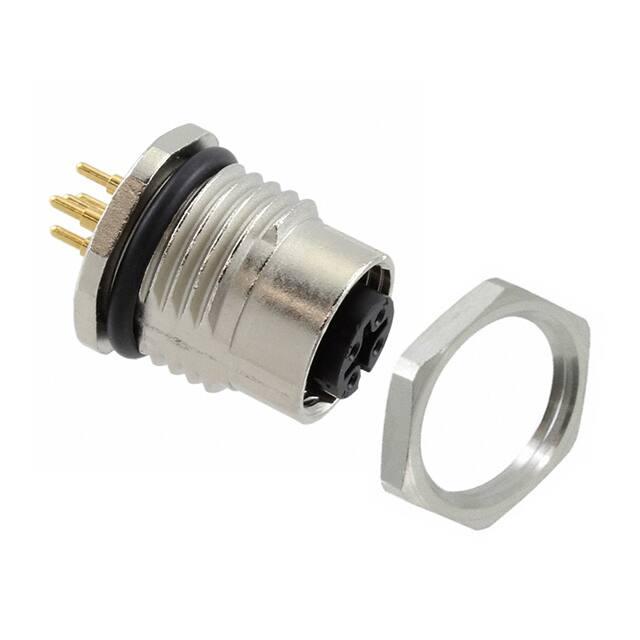

https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type socket, 5-pos., M12 SPEEDCON, A-coded, rear/screw mounting with M16 thread, with straight solder connection Your advantages  Easy PCB assembly: one-piece connectors for wave soldering  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  SPEEDCON fast locking system reduces cabling times Key Commercial Data Packing unit 1 pc Minimum order quantity 20 pc GTIN GTIN 4046356533973 Weight per Piece (excluding packing) 15.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of the solder pin 6 mm Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) Degree of protection IP67 (When plugged in) 11/05/2019   Page 1 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Technical data Ambient conditions IP65 (When plugged in) General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 5 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Solder pins Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Rear mounting M16 x 1.5 With flat nut Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA 6.6 Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Cable Standards/specifications M12 connector IEC 61076-2-101 Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 11/05/2019   Page 2 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Technical data Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Drilling diagram 11/05/2019   Page 3 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Dimensional drawing M12 front view 11/05/2019   Page 4 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Dimensional drawing 11/05/2019   Page 5 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Dimensional drawing Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with area as anti-rotation protection for panel thicknesses > 2 mm up to max. 4.5 mm) 11/05/2019   Page 6 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Schematic diagram Pin assignment M12 socket, 5-pos., A-coded, socket side view Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 11/05/2019   Page 7 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Classifications eCl@ss eCl@ss 9.0 27440102 ETIM ETIM 2.0 EC001297 ETIM 3.0 EC002061 ETIM 4.0 EC002061 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     Nominal voltage UN 60 V Nominal current IN 4A 11/05/2019   Page 8 / 10 https://www.phoenixcontact.com/us/products/1441778 Panel feed-through - SACC-DSI-M12FS-5CON-M16 - 1441778 Approvals     mm²/AWG/kcmil 22-20 Accessories Accessories Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Seal Flat gasket - SACC-M16-SEAL CLM - 1430394 M16 flat gasket, for rear mounting of M12 flush-type connectors with M16 fastening thread     11/05/2019   Page 9 / 10 https://www.phoenixcontact.com/us/products/1441778 Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/05/2019   Page 10 / 10
