Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

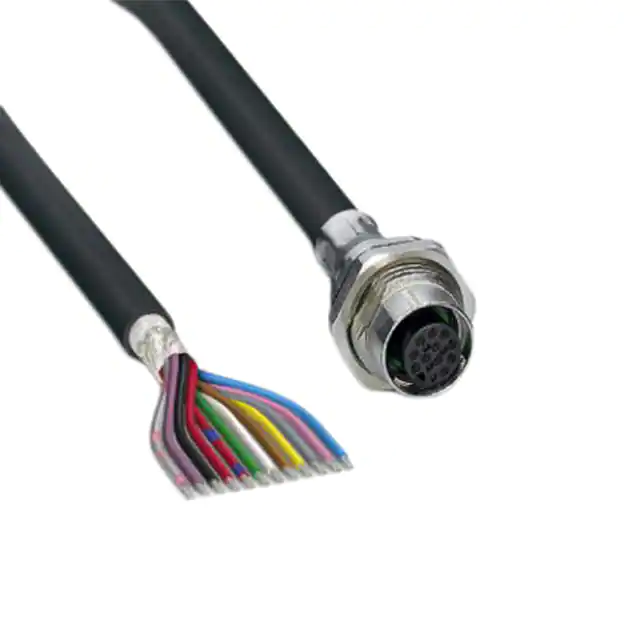

Flush-type socket, shielded, 12-pos., M12, A-coded, rear/screw mounting with M16 thread, with 1 m cable, 12
x 0.14 mm²
Why buy this product
■
■
■
■
Pre-assembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
For high transmission safety: shield connection to the housing with optional EMC nut
Key Commercial Data
Packing unit
1 STK
GTIN
Weight per Piece (excluding packing)
94.0 g
Custom tariff number
85444290
Country of origin
Germany
Technical data
Dimensions
Length of cable
1m
Stripping length of the free conductor end
35 mm
Ambient conditions
Ambient temperature (operation)
-25 °C ... 85 °C (Plug / socket)
Degree of protection
IP67
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
08/06/2016 Page 1 / 6
https://www.phoenixcontact.com/gb/products/1442188
Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Technical data
General
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
Rated current at 40°C
1.5 A
Rated voltage
30 V
Rated surge voltage
0.8 kV
Number of positions
12
Insulation resistance
≥ 100 MΩ
Coding
A - standard
Standards/regulations
M12 connector IEC 61076-2-101
Signal type/category
Universal
Status display
No
Overvoltage category
II
Degree of pollution
3
Connection method
Individual wires
Insertion/withdrawal cycles
> 100
Torque
3 Nm ... 4 Nm (Installation-side)
Mounting type
Rear mounting M16 x 1.5 Thread with flat nut
Material
Flammability rating according to UL 94
V0
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PA 66
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
FKM
Cable
Cable type
PVC black
Cable type (abbreviation)
PVC
Conductor cross section
0.14 mm²
AWG signal line
26
Conductor structure signal line
7x 0.16 mm
Core diameter including insulation
1.1 mm ±0.05 mm
Thickness, insulation
0.21 mm
Wire colors
White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pinkred/blue
Overall twist
Six pairs around the filler to the core
Shielding
Tinned copper braided shield
Optical shield covering
85 %
External sheath, color
black RAL 9005
External cable diameter
8.50 mm
08/06/2016 Page 2 / 6
https://www.phoenixcontact.com/gb/products/1442188
Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Technical data
Cable
Number of bending cycles
2000000
Bending radius
85 mm
Traversing path
10 m
Traversing rate
3 m/s
Acceleration
10 m/s²
Outer sheath, material
PVC
Material, inner sheath
PVC
Material conductor insulation
PVC
Conductor material
Tin-plated Cu litz wires
Standards/specifications
M12 connector IEC 61076-2-101
Conductor resistance
142 Ω/km
Flame resistance
DIN VDE 0472 part 804, test type B
Resistance to oil
DIN VDE 0472 Part 803, test type B
Other resistance
Hydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation)
-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)
Standards and Regulations
Standard designation
M12 connector
Standards/regulations
IEC 61076-2-101
Resistance to oil
DIN VDE 0472 Part 803, test type B
Flame resistance
DIN VDE 0472 part 804, test type B
Other resistance
Hydrolysis and microbe resistant as per VDE 0282 section 10
Flammability rating according to UL 94
V0
Drawings
Dimensional drawing
!4,5
Schematic diagram
10
2
3 11
4
Ø15,9⁺⁰¹
1
13,5⁺⁰¹
5
9
12
8
6
7
Pin assignment M12 socket, 12-pos., A-coded, view female side
Housing cutout for M16 fastening thread, mounting panel with feedthrough hole (alternatively with surface as protection against rotation)
08/06/2016 Page 3 / 6
https://www.phoenixcontact.com/gb/products/1442188
Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Dimensional drawing
Circuit diagram
1
2
3
4
5
6
7
8
9
10
11
12
36,5
18
1,5
M12
2
19
M12 flush-type connector
M16x1,5
17
6
BN
BU
WH
GN
PK
YE
BK
GY
RD
VT
GYPK
RDBU
Contact assignment of the M12 socket
Classifications
eCl@ss
eCl@ss 4.0
27250313
eCl@ss 4.1
27250313
eCl@ss 5.0
27143423
eCl@ss 5.1
27143423
eCl@ss 6.0
27143423
eCl@ss 7.0
27449001
eCl@ss 8.0
27440103
eCl@ss 9.0
27440102
ETIM
ETIM 4.0
EC002061
ETIM 5.0
EC002061
UNSPSC
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
UNSPSC 11
31251501
UNSPSC 12.01
31251501
UNSPSC 13.2
31251501
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
08/06/2016 Page 4 / 6
https://www.phoenixcontact.com/gb/products/1442188
Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Approvals
Approvals submitted
Approval details
EAC
EAC
Accessories
Accessories
Plug for cable screw gland
Screw plug - SACC-M16-SEALING PLUG SET - 1453368
M16 screw plug for unused M12 housing cutouts
Protective cap
Screw plug - PROT-M12 - 1680539
An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors
Screw plug - PROT-M12 SH - 1503302
An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type
connectors
08/06/2016 Page 5 / 6
https://www.phoenixcontact.com/gb/products/1442188
Flush-type connector - SACCBP-FS-12CON-M16/1,0PVCSCO - 1442188
Accessories
Screw plug - PROT-M12 FB - 1555538
M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type
connectors for the food industry
Seal
Flat gasket - SACC-M16-SEAL CLM - 1430394
M16 flat gasket, for rear mounting of M12 flush-type connectors with M16 fastening thread
Phoenix Contact 2016 © - all rights reserved
