Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

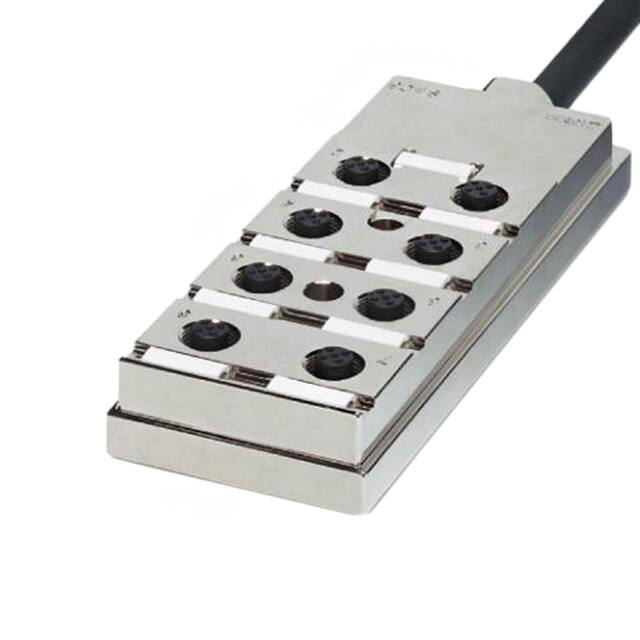

Sensor/actuator box, without LED, with master cable, markers and double-occupied slots
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
10 pc
GTIN
GTIN
4046356587792
Technical data
General
Rated voltage
48 V
60 V DC
Current carrying capacity per I/O signal
2A
Current carrying capacity per slot
4A
Total rated current
12 A
Number of positions
5
Number of slots
8
Flammability rating according to UL 94
V0
Sensor/actuator connection system
M12 socket
Note
NOTE: Observe the permissible bending radii when laying conductors,
since the degree of protection may be put in jeopardy if the bending
forces are too high. Alleviate mechanical loads upstream of the
connector, e.g. by using cable ties.
Unused slots are to be sealed off prior to commissioning. Suitable
sealing elements are to be found under "Accessories".
Ambient conditions
Degree of protection
IP65
12/17/2021 Page 1 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Technical data
Ambient conditions
IP67
Ambient temperature (operation)
-25 °C ... 70 °C
-40 °C ... 90 °C (for fixed installation)
-5 °C ... 80 °C (for flexible installation)
Master cable connection data
Connection method
Fixed connection
Length of cable
15 m
Tightening torque slot sensor/actuator cable
0.4 Nm
Insulation material
Housing material
Aluminum
Housing surface material
Nickel-plated
Material of the moulding mass
PUR
Contact material
Cu alloy
Contact surface material
gold-plated
Contact carrier material
PA
Material of contact, master cable side
CU alloy
Material of contact surface, master cable side
Gold-plated
O-ring material
NBR
Pin assignment
Slot/position = Wire color or connection
1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
7 / 4 (A) = BK
7 / 2 (B) = WH/GY
8 / 4 (A) = VT
8 / 2 (B) = GY/BN
1-8 / 1 (+ 48 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE
Standards and Regulations
12/17/2021 Page 2 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Cable
Cable type
PUR/PVC shielded, black
Cable type (abbreviation)
PUR
Cable abbreviation
LiYY11Y-HF
Conductor cross section
16x 0.5 mm² (Signal line)
3x 1 mm² (Power supply)
AWG signal line
20
AWG power supply
17
Conductor structure signal line
64x 0.10 mm
Conductor structure, voltage supply
128x 0.10 mm
Wire colors
brown, blue, green/yellow, white, green, yellow, gray, pink, red, black,
violet, gray/pink, red/blue, white/green, brown/green, white/yellow,
yellow/brown, white/gray, gray/brown
Overall twist
Wires twisted in layers
Shielding
Tinned copper braided shield
External sheath, color
deep black RAL 9005
External cable diameter D
11.6 mm ±0.3 mm
Number of bending cycles
1500000
Minimum bending radius, drag chain applications
10 x D
Traversing path
2m
Traversing rate
2 m/s
Outer sheath, material
PUR
Material conductor insulation
PVC
Conductor material
Bare Cu litz wires
Nominal voltage, cable
300 V
Test voltage, cable
2000 V
Special properties
Silicone-free
Free of substances which would hinder coating with paint or varnish
Other resistance
Highly resistant to acids, alkaline solutions and solvents
Flame resistance
DIN EN 50265
Resistance to oil
according to VDE 0472 Part 803
Ambient temperature (operation)
-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
12/17/2021 Page 3 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Circuit diagram
Dimensional drawing
6/2 6/4
7/2 7/4
8/2 8/4
UN
21,5
2/2 2/4
10,5
0V 1/2 1/4
23,5
155,8
4,2
61
7
4
5
1
8
36
5
1
2
8
6
3
4
7
5
1
2
6
2
3
4
5
1
5
1
2
4
5
1
3
4
3
2
2
3
4
1
3
2
4,3
Ø4,2
73
107
Schematic diagram
3
4
5
2
1
M12 slot, socket, 5-pos.
12/17/2021 Page 4 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Cable cross section
PUR/PVC shielded, black [PUR]
Classifications
eCl@ss
eCl@ss 10.0.1
27440108
eCl@ss 4.0
27140800
eCl@ss 4.1
27140800
eCl@ss 5.0
27143400
eCl@ss 5.1
27250300
eCl@ss 6.0
27279200
eCl@ss 7.0
27279219
eCl@ss 9.0
27440108
ETIM
ETIM 2.0
EC000200
ETIM 3.0
EC001856
12/17/2021 Page 5 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Classifications
ETIM
ETIM 4.0
EC002585
ETIM 6.0
EC002585
ETIM 7.0
EC002585
UNSPSC
UNSPSC 6.01
31261501
UNSPSC 7.0901
31261501
UNSPSC 11
31261501
UNSPSC 12.01
31261501
UNSPSC 13.2
31251501
UNSPSC 19.0
31251501
UNSPSC 20.0
31251501
UNSPSC 21.0
31251501
Accessories
Accessories
Device marking
Zack marker strip - ZBN 18:UNBEDRUCKT - 2809128
Zack marker strip, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, mounting type:
snapped, for terminal block width: 18 mm, lettering field size: 18 x 5 mm, Number of individual labels: 5
Plug for cable screw gland
Screw plug - PROT-M12 SH - 1503302
An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type
connectors
Screwdriver tools
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl
diameter of 15 mm, for 4 mm hexagonal drive
12/17/2021 Page 6 / 7
https://www.phoenixcontact.com/pi/products/1445729
Sensor/actuator box - SACB-8/16-15,0PUR SH - 1445729
Accessories
Tool - SACC BIT M12-D20 - 1208445
Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
