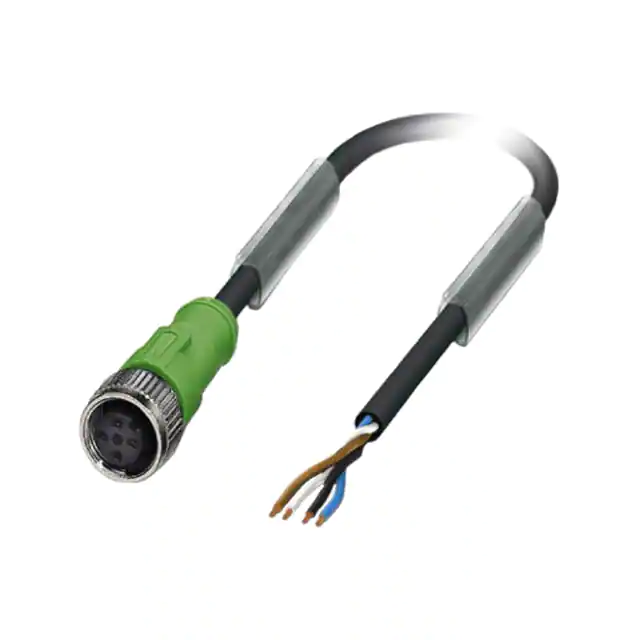

https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PVC, black RAL 9005, free cable end, on Socket straight M12, A-coded, cable length: 10 m Your advantages  Easy and safe: 100% electrically tested plug-in components Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356627955 Weight per Piece (excluding packing) 360.000 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 10 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A 07/30/2019   Page 1 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Technical data General Rated voltage 250 V AC 250 V DC Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Cable Cable type PVC black Cable type (abbreviation) PVC Cable abbreviation LiYY UL AWM style 2464 / 1729 (80°C/300 V) Conductor cross section 4x 0.34 mm² (Signal line) AWG signal line 22 Conductor structure signal line 19x 0.15 mm Core diameter including insulation 1.26 mm ±0.05 mm Thickness, insulation ≥ 0.23 mm (Core insulation) Wire colors brown, white, blue, black Overall twist 4 wires, twisted External sheath, color black RAL 9005 07/30/2019   Page 2 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Technical data Cable Outer sheath thickness ≥ 0.76 mm External cable diameter D 4.7 mm ±0.15 mm Minimum bending radius, fixed installation 5xD Minimum bending radius, flexible installation 10 x D Cable weight 40 kg/km Outer sheath, material PVC Material conductor insulation PVC Conductor material Bare Cu litz wires Insulation resistance ≥ 200 MΩ*km (at 20 °C) Conductor resistance ≤ 57 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (cable, flexible installation) Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27060300 eCl@ss 5.1 27061800 eCl@ss 6.0 27279200 eCl@ss 7.0 27279218 eCl@ss 8.0 27279218 eCl@ss 9.0 27060311 ETIM ETIM 4.0 EC001855 ETIM 5.0 EC001855 ETIM 6.0 EC001855 ETIM 7.0 EC001855 07/30/2019   Page 3 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Classifications UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A EAC      FILE E 221474  FILE E 221474  RU CDE.BL08.B.00286 07/30/2019   Page 4 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Approvals cULus Listed       Accessories Accessories Conductor marking Insert label - PABA WH/23 - 1013779 Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm     Insert label - PABA YE/23 - 1013782 Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm     Corrugated pipe Protective hose - WP-PA HF 13,0 BK - 3240681 Polyamide protective hose, inflammability class V0, UV resistant     Protective hose - WP-PA HF-HB 13,0 BK - 3240839 Polyamide protective hose, inflammability class HB, UV resistant     07/30/2019   Page 5 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Accessories Cutting tools Diagonal cutter - CUTFOX-S VDE - 1212207 Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Protective cap Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs     Safety locking Locking clip - SAC-M12-EXCLIP-M - 1558988 Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without tools     Screwdriver tools 07/30/2019   Page 6 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Accessories Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Tool - SAC BIT M12-D15 - 1208432 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter of 15 mm, for 4 mm hexagonal drive     Stripping tool Stripping tool - WIREFOX SAC-1 - 1212757 Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 3.2 to 4.4 mm, any stripping length     Stripping tool - WIREFOX SAC - 1212623 Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7 mm, any stripping length     Stripping tool - WIREFOX 10 - 1212150 Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade     07/30/2019   Page 7 / 8 https://www.phoenixcontact.com/us/products/1446333 Sensor/actuator cable - SAC-4P-10,0-PVC/M12FS - 1446333 Accessories Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Protective hose adapter - WP-CTA POM 13,0 BK - 1422884 Protective hose adapter, for corrugated hoses with a nominal size of 13 (10 x 13), corrugated in parallel     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 07/30/2019   Page 8 / 8
