1453452

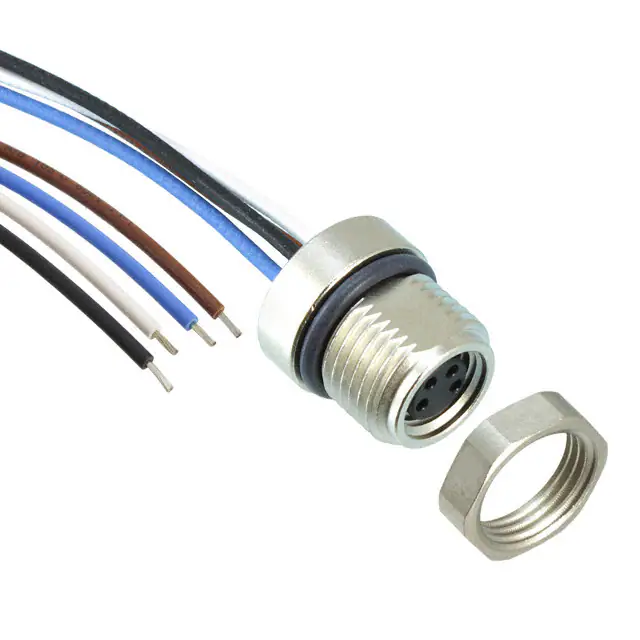

https://www.phoenixcontact.com/us/produkte/1453452 Flush-type connector - SACC-DSI-M 8FS-4CON-M12/0,5 - 1453452 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type socket, 4-pos., M8, rear/screw mounting with M12 thread, with 0.5 m TPE litz wire, 4 x 0.25 mm²   Key commercial data Packing unit 0 Minimum order quantity 1 Catalog page Page 39 (PC-2011) GTIN Custom tariff number 85444290 Country of origin GERMANY Technical data General data Rated current at 40°C 4A Rated voltage 30 V Number of positions 4 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Length of cable 0.5 m Ambient temperature (operation) -25 °C ... 85 °C (female) General characteristics Standards/regulations M8 plug-in connector IEC 61076-2-104 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP67 Contact material Cu alloy Contact surface material Au Contact carrier material PUR / PA66 Material, knurls Nickel-plated brass 05.10.2012   Page 1 / 3 https://www.phoenixcontact.com/us/produkte/1453452 Flush-type connector - SACC-DSI-M 8FS-4CON-M12/0,5 - 1453452 Technical data General characteristics Sealing material Viton Mounting type Rear mounting M12 x 1 Connection method Individual wires Status display No Conductor data Cable type TPE litz wire Conductor cross section 0.25 mm² AWG signal line 24 Conductor structure signal line 14x 0.15 mm Core diameter including insulation 1.15 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors brown, white, blue, black Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 20 MΩ*km Conductor resistance ≥ 80 Ω/km Nominal voltage, conductor 300 V Test voltage, conductor 2000 V AC Ambient temperature (operation) -25 °C ... 90 °C (cable, fixed installation) Classifications eclass eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27279220 eCl@ss 7.0 27440103 etim ETIM 3.0 EC002061 ETIM 4.0 EC002061 unspsc UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 05.10.2012   Page 2 / 3 https://www.phoenixcontact.com/us/produkte/1453452 Flush-type connector - SACC-DSI-M 8FS-4CON-M12/0,5 - 1453452 Approvals Approvals Approvals GOST Ex Approvals Approvals submitted Approval details GOST  Drawings Schematic diagram 14,5 2 4 14 1 Pin assignment M8 socket, 4-pos., view female side M12x1 3 500 max. 4,5 10 Ø14 4 Dimensioned drawing 4,5 M8 flush-type socket Dimensioned drawing max.3,4 10 Ø12,2 Circuit diagram Housing cutout for M8 flush-type connector, socket, one-section 1 BN 2 WH 4 BK 3 BU Contact assignment of M8 plugs/sockets © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 05.10.2012   Page 3 / 3
