1456022

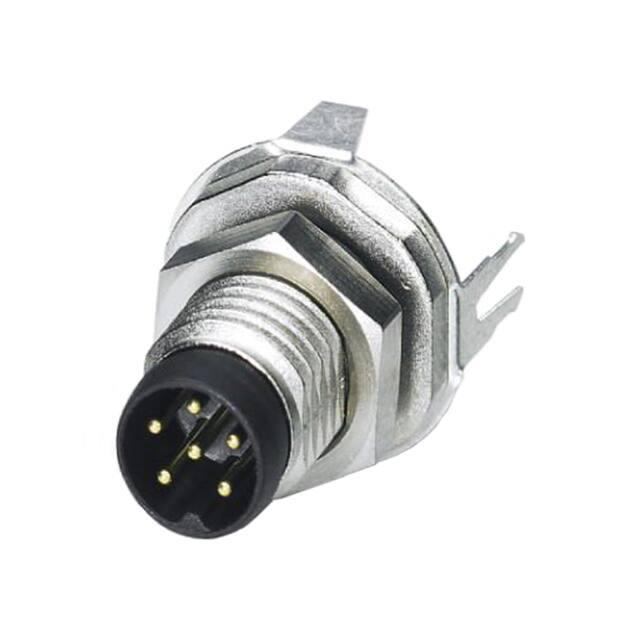

https://www.phoenixcontact.com/us/products/1456022 Flush-type connector - SACC-DSI-M 8MS-6CON-L180 SH - 1456022 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type connector, connector, 6-pos. M8, rear/screw mounting with M8 fastening thread, with straight solder connection   Key Commercial Data Packing unit 1 pc Minimum order quantity 20 pc Weight per Piece (excluding packing) 6.0 g Custom tariff number 85366990 Country of origin Germany Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C Degree of protection IP67 General Rated current at 40°C 2A Rated voltage 30 V AC 30 V DC Number of positions 6 Contact resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M8 connector IEC 61076-2-104 Status display No Overvoltage category II Pollution degree 3 10/18/2015   Page 1 / 3 https://www.phoenixcontact.com/us/products/1456022 Flush-type connector - SACC-DSI-M 8MS-6CON-L180 SH - 1456022 Technical data General Connection method Solder pins Mounting type Rear mounting M8 x 1 With flat nut Material Flammability rating according to UL 94 HB Contact material Cu alloy Contact surface material Au Contact carrier material PA 66 Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Cable Ambient temperature (operation) -25 °C ... 85 °C Classifications eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 8.0 27440103 ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals 10/18/2015   Page 2 / 3 https://www.phoenixcontact.com/us/products/1456022 Flush-type connector - SACC-DSI-M 8MS-6CON-L180 SH - 1456022 Approvals Approvals EAC Ex Approvals Approvals submitted Approval details EAC  Drawings Dimensional drawing Schematic diagram !2 "4,5 4 5 3 +0,1 6 Ø8,1 1 7,1 +0,1 2 Pin assignment M8 plug, 6-pos., view male side 0,5x45° Mounting panel with feed-through hole Drilling diagram Dimensional drawing 12,5 17 3,5 Ø3 7 1,32 M8x1 1,9 0,74 Ø1 12 10 Ø1 5,7 8,6 2,73 Drilling diagram 12 M8 flush-type plug Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 10/18/2015   Page 3 / 3
