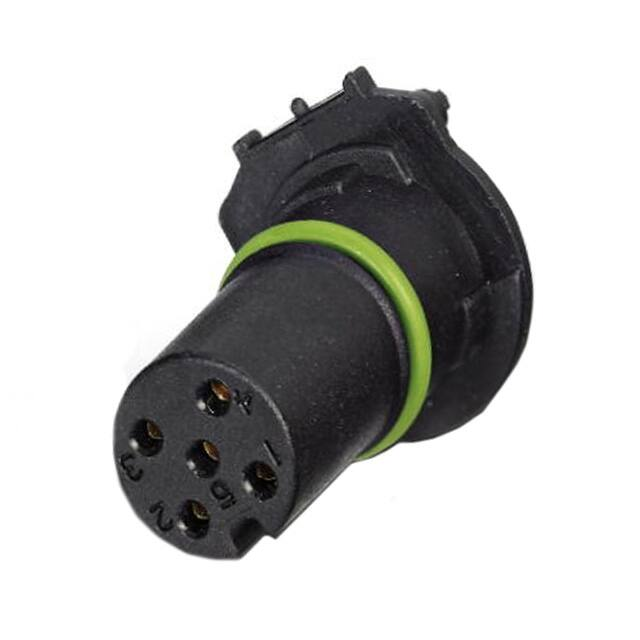

https://www.phoenixcontact.com/us/products/1457649 Flush-type connector - SACC-CI-M12FS-5CON TOR 32 - 1457649 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type socket, 5-pos., A-coded, with straight THR solder connection, only contact insert   Key commercial data Packing unit 11 Minimum order quantity 100 1 Weight per Piece (excluding packing) 7.2 GRM Custom tariff number 85389099 Country of origin Germany Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Rated current at 40°C 4A Rated voltage 60 V Number of positions 5 Contact resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Surge voltage category II Pollution degree 3 Connection method THR solder connection 01.11.2013   Page 1 / 5 https://www.phoenixcontact.com/us/products/1457649 Flush-type connector - SACC-CI-M12FS-5CON TOR 32 - 1457649 Technical data General Mounting type PCB mounting Material Inflammability class according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 66 Sealing material FKM / EPDM Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27260701 eCl@ss 6.0 27279220 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002061 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Recognized / GOST / GOST 01.11.2013   Page 2 / 5 https://www.phoenixcontact.com/us/products/1457649 Flush-type connector - SACC-CI-M12FS-5CON TOR 32 - 1457649 Approvals Ex Approvals Approvals submitted Approval details UL Recognized      mm²/AWG/kcmil 26-20 Nominal current IN 4A Nominal voltage UN 60 V GOST  GOST  Accessories Accessories Panel mounting base Housing screw connection - SACC-M12-SCO NUT - 1552243 M12 SPEEDCON housing screw connection for M12 female inserts, with O-ring, for all SPEEDCON-capable THR and wave soldering contact carriers     01.11.2013   Page 3 / 5 https://www.phoenixcontact.com/us/products/1457649 Flush-type connector - SACC-CI-M12FS-5CON TOR 32 - 1457649 Accessories Housing screw connection - SACC-M12-SCO NUT L 90 - 1432460 M12-SPEEDCON housing screw connection for M12 female inserts, with flat gasket, for all Speedcon-compatible THR and wave soldering contact carriers     Housing screw connection - SACC-M12 NUT PRESS - 1437889 Housing screw connection for two-piece M12 connectors for the reflow soldering process.     Drawings Schematic diagram 3 Drilling diagram Ø5 4 Ø1,2 5 45 ° 5 1 4,5 2 Pin assignment M12 socket, 5-pos., A-coded, socket side view Ø1,4 8,5 Drilling diagram 01.11.2013   Page 4 / 5 https://www.phoenixcontact.com/us/products/1457649 Flush-type connector - SACC-CI-M12FS-5CON TOR 32 - 1457649 Dimensioned drawing 2,5 Ø8,25 Ø1 1,5 ≤ 25 17 Dimensioned drawing 32 ±0,3 4 ±0,1 1,5 Ø1,5 ±0,1 ±0,1 24 M12 female connector contact carrier ±0,1 ±0,1 28,4 0,2 ±0,05 THR tape-on-reel packing © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 01.11.2013   Page 5 / 5
