1457885

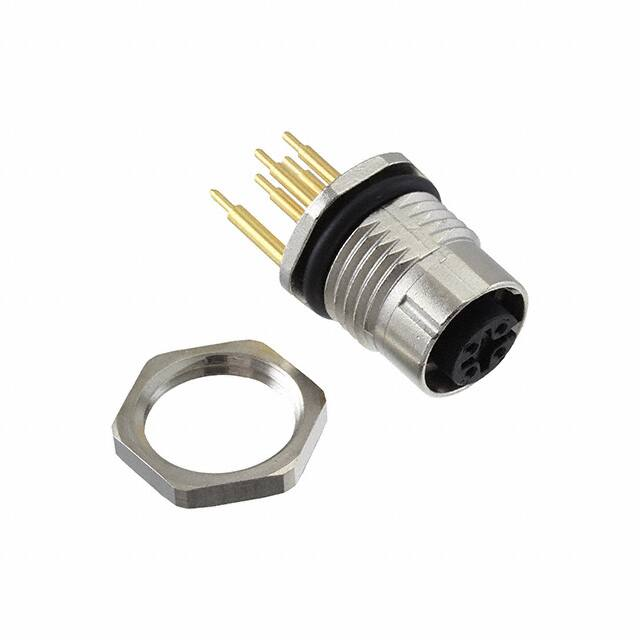

https://www.phoenixcontact.com/pi/products/1457885 Flush-type connector - SACC-DSI-FS-4CON-L180/SH YE - 1457885 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system flush-type socket, with yellow contact carrier, 4-pos., M12 SPEEDCON, shielded, A-coded, rear/ screw mounting with M16 thread, with straight solder connection Your advantages  Easy PCB assembly: one-piece connectors for wave soldering  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  For high transmission reliability: optional shield connection to the housing by means of shield contact Key Commercial Data Packing unit 20 pc GTIN GTIN 4046356617161 Technical data Dimensions Length of the solder pin 6 mm Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 (When plugged in) IP65 (When plugged in) General Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard 12/27/2021   Page 1 / 5 https://www.phoenixcontact.com/pi/products/1457885 Flush-type connector - SACC-DSI-FS-4CON-L180/SH YE - 1457885 Technical data General Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Solder pins Mounting type Rear mounting Pg9 With flat nut Thread type Pg9 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA 6.6 Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Cable Standards/specifications M12 connector IEC 61076-2-101 Standards and Regulations Standards/specifications M12 connector IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Dimensional drawing Ø16,1 ≤3 13,5 +0,1 Schematic diagram 3 4 2 1 Pin assignment M12 socket, 4-pos., A-coded, view female side Housing cutout for M16 fastening thread, mounting panel with feedthrough hole (alternatively with area as anti-rotation protection for panel thicknesses > 2 mm up to max. 4.5 mm) 12/27/2021   Page 2 / 5 https://www.phoenixcontact.com/pi/products/1457885 Flush-type connector - SACC-DSI-FS-4CON-L180/SH YE - 1457885 Drilling diagram Dimensional drawing 19,5 6 Ø1,2 19 10 17 Ø5 Ø14,6 Ø1,2 3 32 M16x1,5 45° max. 4,5 M12 flush-type connector Dimensional drawing 18 6, 8 6, 6 45° M12 front view Classifications eCl@ss eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 4.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 12/27/2021   Page 3 / 5 https://www.phoenixcontact.com/pi/products/1457885 Flush-type connector - SACC-DSI-FS-4CON-L180/SH YE - 1457885 Classifications UNSPSC UNSPSC 13.2 39121413 UNSPSC 19.0 39121413 Approvals Approvals Approvals UL Recognized / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 250 V Nominal current IN 4A mm²/AWG/kcmil 22 EAC   cULus Recognized      FILE E 118976  B.01742  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     Nominal voltage UN 250 V Nominal current IN 4A mm²/AWG/kcmil 22-20 12/27/2021   Page 4 / 5 https://www.phoenixcontact.com/pi/products/1457885 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/27/2021   Page 5 / 5
