Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

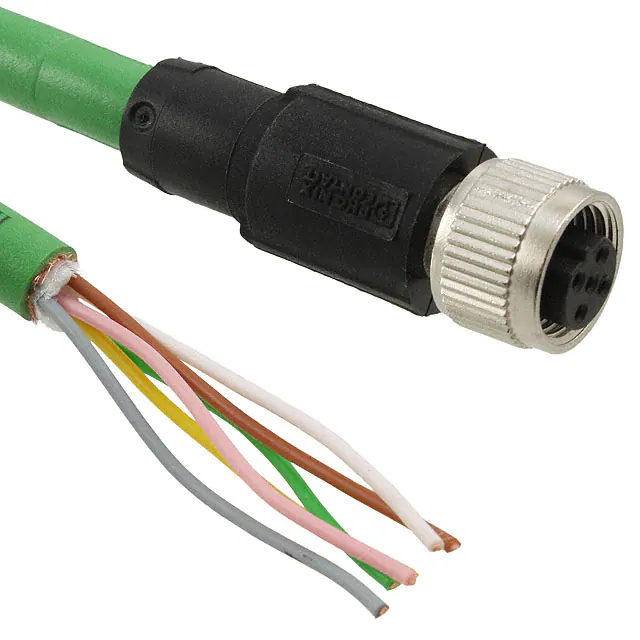

Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, free
cable end, on Socket straight M12, B-coded, cable length: 2 m
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4017918899974
Weight per Piece (excluding packing)
161.200 g
Custom tariff number
85444290
Country of origin
Poland
Technical data
Dimensions
Length of cable
2m
Stripping length of the free conductor end
50 mm
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
Degree of protection
IP65
IP67
General
Note
Further products with variable cable type and variable cable length can be
found in the accessories section
Rated current at 40°C
4A
07/30/2019 Page 1 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Technical data
General
Rated voltage
48 V AC
60 V DC
Number of positions
5
Insulation resistance
≥ 100 MΩ
Coding
B - inverse
Signal type/category
INTERBUS, 16 Mbps
Status display
No
Overvoltage category
II
Degree of pollution
3
Insertion/withdrawal cycles
≥ 100
Torque
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
V0
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
PA 6.6
Material of grip body
TPU, hardly inflammable, self-extinguishing
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
NBR
Pin assignment
Contact | Color (signal designation) | Contact (optional)
1 (Socket) | YE (DO)
2 (Socket) | GN (DO)
3 (Socket) | GY (DI)
4 (Socket) | PK (DI)
5 (Socket) | BN (GND)
Standards and Regulations
Flammability rating according to UL 94
V0
Cable
Cable type
INTERBUS
Cable type (abbreviation)
900
Cable structure
3 x 2 x 0.22 mm²
Conductor cross section
3x 2x 0.22 mm²
AWG signal line
24
Conductor structure signal line
32x 0.10 mm
Wire colors
Green-yellow, white-brown, gray-pink
07/30/2019 Page 2 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Technical data
Cable
Twisted pairs
2 cores to the pair
Overall twist
3 pairs to the core
Shielding
Braided copper wires
External sheath, color
may green RAL 6017
External cable diameter D
8 mm
Minimum bending radius, fixed installation
7.5 x D
Minimum bending radius, flexible installation
15 x D
Number of bending cycles
5000000
Bending radius
120 mm
Traversing path
10 m
Traversing rate
1.6 m/s
Acceleration
3.2 m/s²
Cable weight
70 kg/km
Outer sheath, material
PUR
Material conductor insulation
PE
Conductor material
Bare Cu litz wires
Insulation resistance
≥ 5 GΩ*km
Loop resistance
≤ 159.80 Ω/km
Cable capacity
≤ 60 nF/km (At 800 Hz)
Wave impedance
120 Ω ±20 % (at 64 kHz)
100 Ω ±15 % (with 1 MHz)
Near end crosstalk attenuation (NEXT)
≥ 61 dB (at 772 kHz)
≥ 59 dB (with 1 MHz)
≥ 55 dB (at 2 МHz)
≥ 50 dB (at 4 МHz)
≥ 46 dB (at 8 МHz)
≥ 44 dB (at 10 MHz)
≥ 41 dB (at 16 MHz)
≥ 40 dB (at 20 МHz)
Attenuation
≤ 15 dB/km (at 256 kHz)
≤ 24 dB/km (at 772 kHz)
≤ 27 dB/km (with 1 MHz)
≤ 52 dB/km (at 4 МHz)
≤ 84 dB/km (at 10 MHz)
≤ 112 dB/km (at 16 MHz)
≤ 119 dB/km (at 20 МHz)
Signal speed
0.66 c
07/30/2019 Page 3 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Technical data
Cable
Coupling resistance
< 250.00 mΩ/m (at 30 MHz)
Nominal voltage, cable
250 V (Peak value, not for high-power applications)
Test voltage Core/Core
1500 Vrms
Test voltage Core/Shield
1000 Vrms
Flame resistance
according to VDE 0472, Part 4, test type B
according to IEC 60332-1
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
27060306
eCl@ss 4.1
27060306
eCl@ss 5.0
27061801
eCl@ss 5.1
27061800
eCl@ss 6.0
27279200
eCl@ss 7.0
27279218
eCl@ss 8.0
27279218
eCl@ss 9.0
27060308
ETIM
ETIM 2.0
EC000830
ETIM 3.0
EC001855
ETIM 4.0
EC001855
ETIM 5.0
EC002599
ETIM 6.0
EC000830
ETIM 7.0
EC003249
UNSPSC
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
UNSPSC 11
31251501
UNSPSC 12.01
31251501
07/30/2019 Page 4 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Classifications
UNSPSC
UNSPSC 13.2
31251501
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
EAC
RU CDE.BL08.B.00286
Accessories
Accessories
Circular connector (cable-side)
Bus system connector - SACC-M12FSB-5PL SH IB - 1424676
Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Socket straight M12, Push-in connection, knurl
material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
07/30/2019 Page 5 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Bus system connector - SACC-M12MSB-5PL SH IB - 1424674
Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Plug straight M12, Push-in connection, knurl
material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Bus system connector - SACC-M12FRB-5PL SH IB - 1424677
Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Socket angled M12, Push-in connection, knurl
material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Bus system connector - SACC-M12MRB-5PL SH IB - 1424675
Bus system connector, INTERBUS (500 kbps), 5-position, shielded, Plug angled M12, Push-in connection, knurl material:
Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
Bus system connector - SACC-M12FSB-5CON-PG9 SH AU - 1507777
Bus system connector, PROFIBUS, INTERBUS, 5-position, shielded, Socket straight M12, Screw connection, knurl
material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
Bus system connector - SACC-M12MSB-5CON-PG9 SH AU - 1507764
Bus system connector, PROFIBUS, INTERBUS, 5-position, shielded, Plug straight M12, Screw connection, knurl
material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6.5 mm ... 8.5 mm
07/30/2019 Page 6 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Bus system connector - SACC-M12FRB-5CON-PG 9-SH - 1430420
Bus system connector, PROFIBUS, INTERBUS, 5-position, shielded, Socket angled M12, Screw connection, knurl
material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm
Bus system connector - SACC-M12MRB-5CON-PG 9-SH - 1430417
Bus system connector, PROFIBUS, INTERBUS, 5-position, shielded, Plug angled M12, Screw connection, knurl material:
Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm
Corrugated pipe
Protective hose - WP-PA HF 13,0 BK - 3240681
Polyamide protective hose, inflammability class V0, UV resistant
Protective hose - WP-PA HF-HB 13,0 BK - 3240839
Polyamide protective hose, inflammability class HB, UV resistant
Cutting tools
Cable-cutting tool - CUTFOX 12 - 1212128
Cable cutter, for copper and aluminum up to 12 mm diameter (up to 35 mm²)
07/30/2019 Page 7 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Diagonal cutter - CUTFOX-S VDE - 1212207
Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
Data cable preassembled
Bus system cable - SAC-5P-M12MSB/900/... - 1537983
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight
M12, B-coded, on free cable end, cable length: Free input (0.2 ... 40.0 m)
Bus system cable - SAC-5P-M12FSB/900/... - 1538005
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, free cable end,
on Socket straight M12, B-coded, cable length: Free input (0.2 ... 40.0 m)
Bus system cable - SAC-5P-M12MSB-M12FSB/900/... - 1538021
Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight
M12, B-coded, on Socket straight M12, B-coded, cable length: Free input (0.2 ... 40.0 m)
Electronics pliers
07/30/2019 Page 8 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Diagonal cutter - MICROFOX-SP-1 - 1212487
Electronic diagonal cutter, tapered head, without chamfer, with opening spring, non-reflective phosphate-treated surface,
punched version
Protective cap
Screw plug - PROT-M12 MS-PA-CHAIN - 1430899
M12 sealing cap with fixing band, for sensor cables, for free M12 sockets
Safety locking
Locking clip - SAC-M12-EXCLIP-F - 1558991
Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
07/30/2019 Page 9 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter
of 15 mm, for 4 mm hexagonal drive
Stripping tool
Stripping tool - WIREFOX 4 - 1212156
Stripping tool, for cables and conductors (especially for rubber and silicone insulations) from 0.1 - 4 mm², self-adjusting,
stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Stripping tool - WIREFOX-E 4 - 1212704
Stripping tool, for cables and conductors (especially for rubber and silicone insulations) from 0.1 - 4 mm², self-adjusting,
stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Stripping tool - WIREFOX 10 - 1212150
Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting
capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
07/30/2019 Page 10 / 11
https://www.phoenixcontact.com/us/products/1507117
Bus system cable - SAC-5P- 2,0-900/M12FSB - 1507117
Accessories
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Stripping tool - VS-CABLE-STRIP-VARIO - 1657407
Stripping tool, for the multi-level stripping of shielded cables
Protective hose adapter - WP-CTA POM 13,0 BK - 1422884
Protective hose adapter, for corrugated hoses with a nominal size of 13 (10 x 13), corrugated in parallel
Phoenix Contact 2019 © - all rights reserved
