1507395

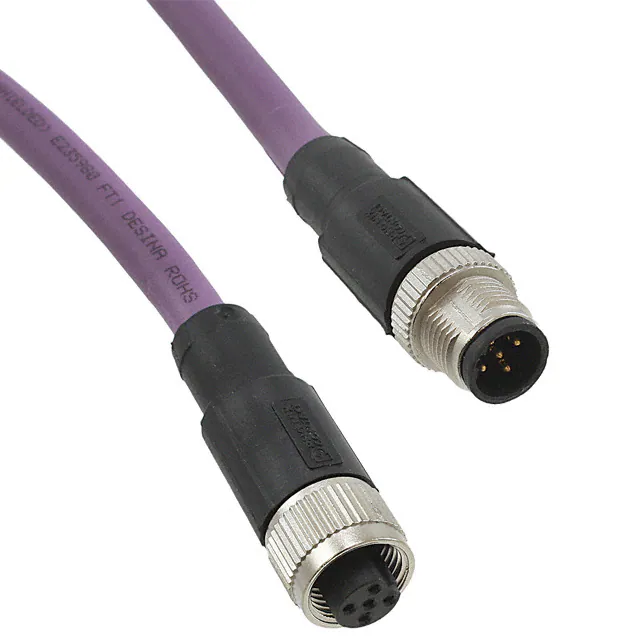

https://www.phoenixcontact.com/us/products/1507395 Bus system cable - SAC-2P-M12MSB/10,0-910/M12FSB - 1507395 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system cable, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, violet RAL 4001, shielded, Plug straight M12, B-coded, on Socket straight M12, B-coded, Cable length: 10 m Key Commercial Data Packing unit 1 STK GTIN GTIN 4017918900212 Weight per Piece (excluding packing) 640.000 g Custom tariff number 85444290 Country of origin Poland Technical data Dimensions Length of cable 10 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 General Rated current at 40°C 4A Rated voltage 250 V Number of positions 2 Insulation resistance ≥ 100 MΩ 11/22/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1507395 Bus system cable - SAC-2P-M12MSB/10,0-910/M12FSB - 1507395 Technical data General Coding B - inverse Signal type/category PROFIBUS, 12 Mbps (max. 100 m) Status display No Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Contact material CuSn Contact surface material Ni/Au Contact carrier material PA 6.6 (plug), TPU GF (socket) Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Pin assignment Position = wire color (signal) = position (optional) 2 (Plug) = GN (A cable) = 2 (Socket) 4 (Plug) = RD (B cable) = 4 (Socket) Cable Cable type PROFIBUS Cable type (abbreviation) 910 UL AWM style 21198 (80°C/300 V) Cable structure 1x2xAWG24/19 Conductor cross section 2x 0.25 mm² (Signal line) AWG signal line 24 Conductor structure signal line 19x 0.13 mm Core diameter including insulation 2.55 mm ±0.07 mm Wire colors Red, green Overall twist 2 cores with 2 fillers to the core Shielding Plastic-coated aluminum foil, tinned copper braided shield Optical shield covering 85 % External sheath, color violet RAL 4001 External cable diameter D 7.8 mm ±0.2 mm Smallest bending radius, fixed installation 40 mm Smallest bending radius, movable installation 65 mm Number of bending cycles 4000000 Bending radius 65 mm 11/22/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1507395 Bus system cable - SAC-2P-M12MSB/10,0-910/M12FSB - 1507395 Technical data Cable Traversing path 4.5 m Traversing rate 3 m/s Acceleration 3 m/s² Number of bending cycles 5000000 Bending radius 80 mm Traversing path 4.5 m Traversing rate 3 m/s Acceleration 3 m/s² Cable weight 90 kg/km Outer sheath, material PUR Material, filler PP Material conductor insulation Foam-Skin PP Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 5 GΩ*km Conductor resistance ≤ 78.6 Ω/km Cable capacity nom. 30 pF/m Wave impedance 150 Ω ±10 % (3 MHz ... 20 MHz) Wave attenuation ≤ 0.049 dB/m (at 16 MHz) Nominal voltage, cable 30 V Test voltage Core/Core 1500 V (50 Hz, 1 min.) Test voltage Core/Shield 1500 V (50 Hz, 1 min.) Flame resistance UL 1581, Sec. 1060 (FT-1) IEC 60332-1-2 Halogen-free in accordance with DIN VDE 0472 part 815 According to IEC 60754-1 Other resistance Low adhesion Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -30 °C ... 80 °C (cable, flexible installation) ≤ 70 °C (cable, drag chain applications) Drawings 11/22/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1507395 Bus system cable - SAC-2P-M12MSB/10,0-910/M12FSB - 1507395 Schematic diagram 4 Schematic diagram 3 3 1 4 5 5 2 2 Pin assignment M12 male connector, 5-pos., B-coded, male side 1 Pin assignment M12 socket, 5-pos., B-coded, female side Cable cross section Dimensional drawing Ø12 M12 Ø14,8 47,3 PROFIBUS [910] Plug, M12 x 1, straight, shielded Dimensional drawing Circuit diagram 1 1 2 2 4 4 3 3 5 5 Ø15 M12 Ø12 44,5 M12 x 1 socket, straight, shielded Approvals Approvals Approvals EAC Ex Approvals Approval details 11/22/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1507395 Bus system cable - SAC-2P-M12MSB/10,0-910/M12FSB - 1507395 Approvals EAC   EAC-Zulassung Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 11/22/2016   Page 5 / 5
