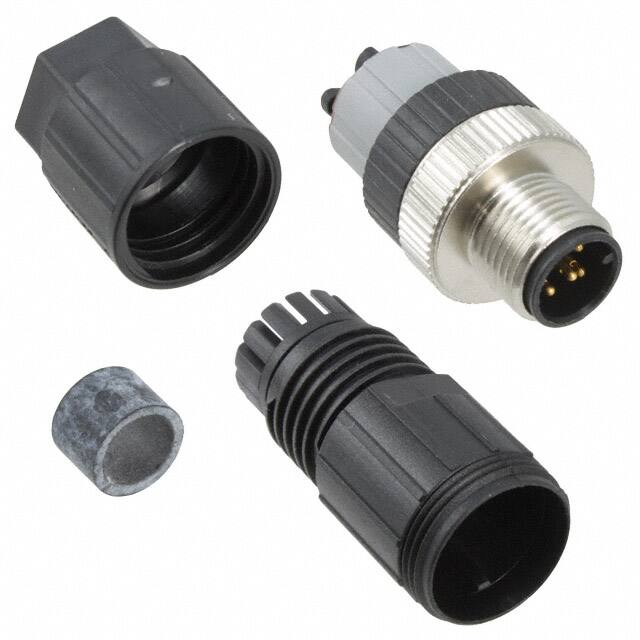

https://www.phoenixcontact.com/pi/products/1508187 Connector - SACC-M12MS-5SC M - 1508187 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Connector, 5-position, Plug straight M12, Coding: A, Spring-cage connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm Your advantages  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly  Spring-cage connection: connect more securely, even in the case of shock and vibration, thanks to high contact forces Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918945930 Technical data Dimensions External cable diameter 4 mm ... 8 mm Stripping length of the sheath 28 mm Stripping length of the individual wire 10 mm Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (Plug / socket) Degree of protection IP65 General Rated current at 40°C 4A Rated voltage 60 V Number of positions 5 Insulation resistance ≥ 100 MΩ 12/24/2021   Page 1 / 5 https://www.phoenixcontact.com/pi/products/1508187 Connector - SACC-M12MS-5SC M - 1508187 Technical data General Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Spring-cage connection Conductor cross section 0.14 mm² ... 0.5 mm² Conductor cross section AWG 26 ... 20 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 knurl) 0.4 Nm (Connector with coupling sleeve) 1.5 Nm (Pressure nut with coupling sleeve) Assembly instructions The wires can be connected both with ferrules and without ferrules Material Flammability rating according to UL 94 V0 Contact material CuSn Contact surface material Ni/Au Contact carrier material PA 6.6 Material of grip body PA 6.6 Material, knurls Zinc die-cast, nickel-plated Sealing material Neoprene Standards and Regulations Standards/specifications M12 connector IEC 61076-2-101 Connection in acc. with standard CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 12/24/2021   Page 2 / 5 https://www.phoenixcontact.com/pi/products/1508187 Connector - SACC-M12MS-5SC M - 1508187 Schematic diagram 4 Dimensional drawing 3 ca. 60 1 Ø19 5 2 Pin assignment M12 male connector, 5-pos., Acoded, male side SW15 Plug, M12 x 1, straight Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27260701 eCl@ss 5.1 27260700 eCl@ss 6.0 27279200 eCl@ss 7.0 27440104 eCl@ss 9.0 27440102 ETIM ETIM 2.0 EC001121 ETIM 3.0 EC002062 ETIM 4.0 EC002062 ETIM 6.0 EC002062 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 UNSPSC 19.0 39121413 Accessories Accessories Cable by the meter 12/24/2021   Page 3 / 5 https://www.phoenixcontact.com/pi/products/1508187 Connector - SACC-M12MS-5SC M - 1508187 Accessories Cable reel - SAC-5P-100,0-PUR/0,34 - 1501676 By the meter, Cable reel, PUR halogen-free, black-gray RAL 7021, 5-wire, color single wire: brown, white, blue, black, green-yellow, cable length: 100 m     Protective cap Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs     Screwdriver tools Tool - SACC BIT M12-D20 - 1208445 Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     12/24/2021   Page 4 / 5 https://www.phoenixcontact.com/pi/products/1508187 Connector - SACC-M12MS-5SC M - 1508187 Accessories Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/24/2021   Page 5 / 5
