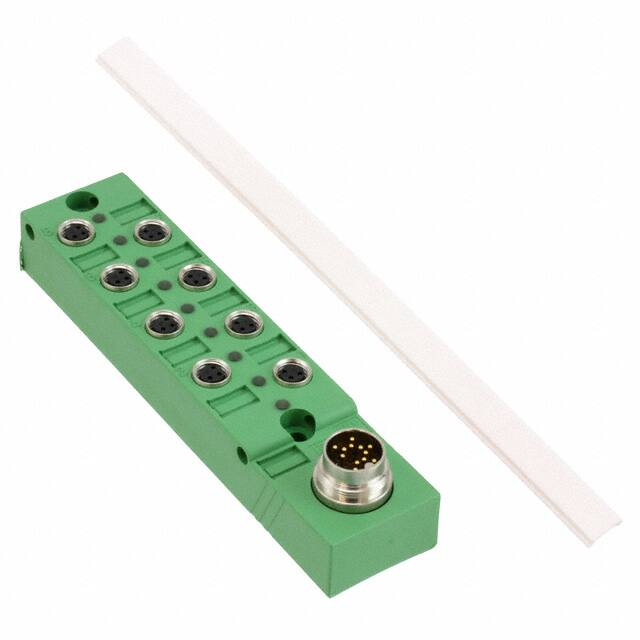

https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator box, application: Standard, connection method: M8 socket Metal, number of slots: 8, number of positions: 3, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: M16 plug connection 90°, shielding: no Your advantages  Safety in the field, thanks to molded housing and high degree of protection  Flexible, distributed bundling of signals in one master cable  Convenient: increased machine availability thanks to quick and easy diagnostics Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918967130 Technical data General Rated voltage 24 V DC Max. operating voltage Umax 30 V DC Current carrying capacity per I/O signal 2A Current carrying capacity per slot 2A Total rated current 6A Number of positions 3 Number of slots 8 Flammability rating according to UL 94 V0 Sensor/actuator connection system M8 socket Note NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. 12/17/2021   Page 1 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Technical data General Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". Ambient conditions Degree of protection IP65 IP67 Ambient temperature (operation) -30 °C ... 80 °C Local diagnostics function Local diagnostics Supply voltage per module Green LED Status display I/O Yellow LED Master cable data/connection data Connection method M16 plug connection Tightening torque - master cable - plug connection 1.5 Nm Tightening torque slot sensor/actuator cable 0.2 Nm Insulation material Housing material PBT Material of the moulding mass PUR Contact material CuSn Contact surface material Ni/Au Contact carrier material PA Material of contact, master cable side CU alloy Material of threaded sleeve Cu alloy Material of threaded sleeve surface Nickel-plated O-ring material NBR Pin assignment Slot/position = Wire color or connection 1 / 4 (A) = P 2 / 4 (A) = J 3 / 4 (A) = T 4 / 4 (A) = S 5 / 4 (A) = G 6 / 4 (A) = R 7 / 4 (A) = E 8 / 4 (A) = O 1-8 / 1 (+ 24 V) = A+M 1-8 / 3 (0 V) = L+U Standards and Regulations Standards/specifications M8 connector IEC 61076-2-104 Connection in acc. with standard CUL Flammability rating according to UL 94 V0 12/17/2021   Page 2 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Technical data Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings Schematic diagram Schematic diagram 4 3 E P R G S J T O C N 1 A M8 slot, socket, 3-pos. L M16 plug connection pin, 14-pos. Dimensional drawing Circuit diagram 132 1/4 0V 2/4 8/4 9/4 10/4 UN 92,5 16,3 34,4 26,8 M U 4 3 Ø4,4 4 1 3 4 1 3 4 1 3 4 1 3 1 Ø4,4 1 2 8 9 10 30 8 6 4 2 7 5 3 1 Further information can be found in the connection assignment section Classifications eCl@ss eCl@ss 10.0.1 27440111 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27250300 eCl@ss 6.0 27279200 eCl@ss 7.0 27279219 eCl@ss 9.0 27440108 ETIM ETIM 2.0 EC000200 ETIM 3.0 EC001856 ETIM 4.0 EC002585 ETIM 6.0 EC002585 12/17/2021   Page 3 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Classifications ETIM ETIM 7.0 EC002585 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 UNSPSC 13.2 31251501 UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V EAC      FILE E 118976  FILE E 118976  EAC-Zulassung 12/17/2021   Page 4 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Approvals EAC  cULus Recognized      RU CDE.BL08.B.00511      Accessories Accessories Labeled terminal marker Marker for terminal blocks - UC-TMF 10 CUS - 0824662 Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 10.2 mm, lettering field size: 9.6 x 5.1 mm, Number of individual labels: 48     Marker for terminal blocks - UCT-TMF 10 CUS - 0829679 Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 10.2 mm, lettering field size: 9.4 x 4.7 mm, Number of individual labels: 36     Marker for terminal blocks - UC-TMF 10 YE CUS - 0824668 Marker for terminal blocks, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 10.2 mm, lettering field size: 9.6 x 5.1 mm, Number of individual labels: 48     Marker for terminal blocks - UCT-TMF 10 YE CUS - 0829682 Marker for terminal blocks, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 10.2 mm, lettering field size: 9.4 x 4.7 mm, Number of individual labels: 36     12/17/2021   Page 5 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Accessories Master cable, assembled Master cable - SAC-12P- 5,0-PUR/M16FR - 1693720 Master cable, application: Sensor/actuator box, connection method: M8 socket Metal, number of slots: 8, number of positions: 12, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 5 m, shielding: no     Master cable - SAC-12P-10,0-PUR/M16FR - 1693733 Master cable, application: Sensor/actuator box, connection method: M8 socket, number of slots: 8, number of positions: 12, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 10 m, shielding: no     Connector - SACC-M16FS-14CON-M - 1500554 M16 socket, 14-pos., with solder connection, freely configurable, straight, for a 6.0 mm conductor diameter ... 8.0 mm     Connector - SACC-M16FR-14CON-M - 1500253 M16 socket, 14-pos., with solder connection, freely configurable, angled, for a 6.0 mm conductor diameter ... 8.0 mm     Plug for cable screw gland Screw plug - PROT-M8 - 1682540 An M8 screw plug for the unoccupied M8 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screwdriver tools 12/17/2021   Page 6 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Accessories Tool - SAC BIT M8-D10 - 1208461 Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 10 mm, for 4 mm hexagonal drive     Tool - SACC BIT M8-D12 - 1208474 Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 12 mm, for 4 mm hexagonal drive     Terminal marking Marker for terminal blocks - UC-TMF 10 - 0818124 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snapped, for terminal block width: 10.2 mm, lettering field size: 9.6 x 5.1 mm, Number of individual labels: 48     Marker for terminal blocks - UCT-TMF 10 - 0829204 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 10.2 mm, lettering field size: 9.4 x 4.7 mm, Number of individual labels: 36     Marker for terminal blocks - UC-TMF 10 YE - 0818687 Marker for terminal blocks, Sheet, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snapped, for terminal block width: 10.2 mm, lettering field size: 9.6 x 5.1 mm, Number of individual labels: 48     12/17/2021   Page 7 / 8 https://www.phoenixcontact.com/pi/products/1516205 Sensor/actuator box - SACB- 8/3-L-M16-M8 - 1516205 Accessories Marker for terminal blocks - UCT-TMF 10 YE - 0829207 Marker for terminal blocks, Sheet, yellow, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 10.2 mm, lettering field size: 9.4 x 4.7 mm, Number of individual labels: 36     Torque tool Torque screwdriver - TSD 02 SAC - 1208487 Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/17/2021   Page 8 / 8
