1520039

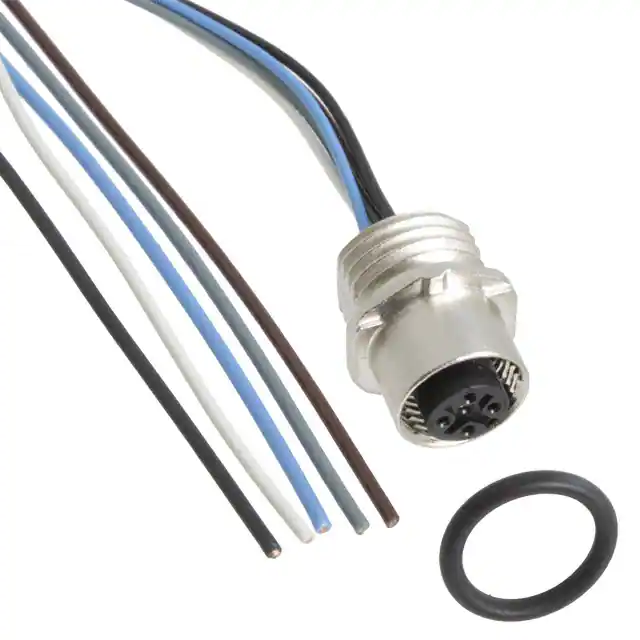

https://www.phoenixcontact.com/us/products/1520039 Flush-type connector - SACC-E-FS-5CON-M16/0,5 SCO - 1520039 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator flush-type socket, 5-pos., M12-SPEEDCON, A-coded, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 5 x 0.25 mm²     Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 22.8 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 5 Contact resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ 10/18/2015   Page 1 / 5 https://www.phoenixcontact.com/us/products/1520039 Flush-type connector - SACC-E-FS-5CON-M16/0,5 SCO - 1520039 Technical data General Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category II Pollution degree 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Front mounting M16 x 1.5 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 66 Material of grip body Zinc die-cast, nickel-plated Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm (Core insulation) Wire colors Black, brown,blue, white, gray Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 mΩ/m Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) 10/18/2015   Page 2 / 5 https://www.phoenixcontact.com/us/products/1520039 Flush-type connector - SACC-E-FS-5CON-M16/0,5 SCO - 1520039 Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 8.0 27440103 ETIM ETIM 2.0 EC001297 ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals cULus Recognized / EAC Ex Approvals Approvals submitted Approval details 10/18/2015   Page 3 / 5 https://www.phoenixcontact.com/us/products/1520039 Flush-type connector - SACC-E-FS-5CON-M16/0,5 SCO - 1520039 Approvals cULus Recognized      mm²/AWG/kcmil 20 Nominal current IN 4A Nominal voltage UN 60 V EAC  Drawings Dimensional drawing Dimensional drawing Ø16,1 Ø17 +0,2 M16x1,5 45 ° max.4,5 Housing cutout for M16 fastening thread, mounting panel with thread 13,5 +0,1 1x45° Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with surface as protection against rotation) Schematic diagram 3 Dimensional drawing 20 4 500 11,5 5 1 M16x1,5 2 2 Pin assignment M12 socket, 5-pos., A-coded, socket side view min.2,5 M12 flush-type socket 10/18/2015   Page 4 / 5 https://www.phoenixcontact.com/us/products/1520039 Flush-type connector - SACC-E-FS-5CON-M16/0,5 SCO - 1520039 Circuit diagram 1 BN 2 WH 4 BK 3 BU 5 GY Contact assignment of the M12 plug and the M12 socket Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 10/18/2015   Page 5 / 5
