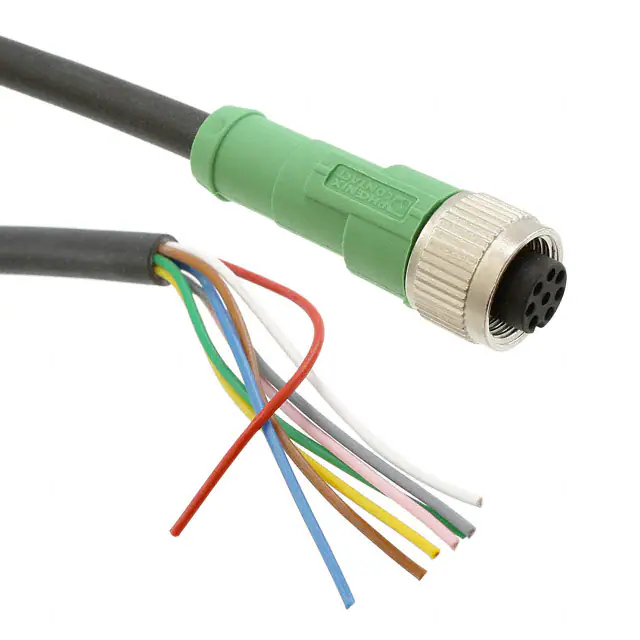

Extract from the online catalog     SAC-8P- 5,0-PUR/M12FS Order No.: 1520369 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1520369   Sensor/Actuator cable, 8-position, PUR, halogen-free, Black-gray RAL 7021, Free conductor end, on Socket, straight M12, A-coded, Cable length: 5 m   Product notes WEEE/RoHS-compliant since: 11/08/2006 Commercial data GTIN (EAN) 4017918944537 sales group D118 Pack 1 pcs. Customs tariff 85444290 Weight/Piece 0.2332 KG Catalog page information Page 93 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated current at 40°C 2A Rated voltage 30 V Number of positions 8 Volume resistance ≤ 5 mΩ PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 5 Nov 22, 2010 SAC-8P- 5,0-PUR/M12FS Order No.: 1520369 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1520369 Insulation resistance ≥ 100 MΩ Length of cable 5m Stripping length of the free conductor end 50 mm Ambient temperature (operation) -25 °C ... 90 °C (Male connector / female connector) General characteristics Standards/regulations M12 male connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/IP68/IP69K Insertion/withdrawal cycles ≥ 100 Contact material CuZn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, (nickel-plated) Sealing material NBR Status display No Conductor data Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y Conductor cross section 0.25 mm² AWG signal line 24 Conductor structure signal line 32 x 0.10 mm Core diameter including insulation 1.17 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm (Core insulation) Approx. 0.8 mm (Outer cable sheath) External cable diameter 5.9 mm ±0.15 mm Wire colors Brown, blue, white, gray, pink, red, yellow, green External sheath, color Black-gray RAL 7021 Insulation resistance ≥ 100 MΩ*km (at 20°C) Conductor resistance max. 78 Ω/km (at 20°C) Nominal voltage, conductor ≤ 300 V PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 2 / 5 Nov 22, 2010 SAC-8P- 5,0-PUR/M12FS Order No.: 1520369 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1520369 Test voltage, conductor ≥ 3000 V Overall twist 8 wires around filler to the core Outer sheath, material PUR Material, filler PE Material conductor insulation PP Conductor material Bare Cu litz wires Cable weight 46 kg/km Smallest bending radius, fixed installation 59 mm Smallest bending radius, movable installation 59 mm Number of bending cycles 4000000 Bending radius 59 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Certificates / Approvals Certification PHOENIX CONTACT Inc., USA http://www.phoenixcon.com CUL Listed, UL Listed Page 3 / 5 Nov 22, 2010 SAC-8P- 5,0-PUR/M12FS Order No.: 1520369 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1520369 Diagrams/Drawings Dimensioned drawing M12 x 1 female connector, straight Circuit diagram Contact assignment of the M12 socket Schematic diagram Pin assignment M12 socket, 8-pos., A-coded, view female side PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 5 Nov 22, 2010 SAC-8P- 5,0-PUR/M12FS Order No.: 1520369 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1520369 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 5 / 5 Nov 22, 2010
