1521481

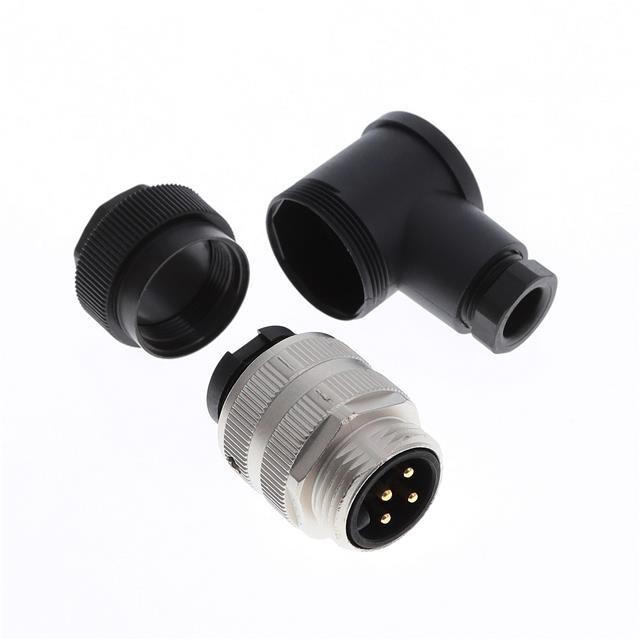

https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Connector, Universal, 4-position, Plug angled 7/8"-UNF, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm, Contact 4 leading Your advantages  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly  Screw connection: proven connection technology for a large selection of different conductors Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918949709 Weight per Piece (excluding packing) 47.600 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Diameter housing 28 mm Length 65.5 mm External cable diameter 6 mm ... 8 mm Stripping length of the sheath 30 mm Stripping length of the individual wire 7 mm Ambient conditions 11/05/2019   Page 1 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. Rated current at 40°C 9A Rated voltage 300 V AC 300 V DC Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Signal type/category Universal Status display No Overvoltage category III Degree of pollution 3 Connection method Screw connection Conductor cross section 0.34 mm² ... 1.5 mm² (without ferrule) 0.34 mm² ... 1.5 mm² (with ferrule) 0.34 mm² ... 1.5 mm² (solid) Conductor cross section AWG 22 ... 16 (without ferrule) 22 ... 16 (with ferrule) Insertion/withdrawal cycles ≥ 100 Torque 0.8 Nm (7/8" connectors) 0.4 Nm (Screw terminal blocks) 0.8 Nm ... 1 Nm (Pressure screw) Tightening torque Screw plug insert with sleeve housing as far it will go Assembly instructions The wires can be connected both with ferrules and without ferrules The connector pin assignment can be rotated 45° to the cable outlet Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Au Contact carrier material PUR / PA 6.6 Material of grip body PBT Material, knurls Zinc die-cast, nickel-plated 11/05/2019   Page 2 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Technical data Standards and Regulations Connection in acc. with standard CUL Flammability rating according to UL 94 HB Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 11/05/2019   Page 3 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Dimensional drawing Male 7/8"-16UNF, angled, Pg9 11/05/2019   Page 4 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Functional drawing 11/05/2019   Page 5 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Schematic diagram Pin assignment, plug, 7/8"-16UNF, 4-pos., view of male side Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27279200 eCl@ss 7.0 27440104 eCl@ss 8.0 27440104 eCl@ss 9.0 27440102 11/05/2019   Page 6 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Classifications ETIM ETIM 2.0 EC001121 ETIM 3.0 EC002062 ETIM 4.0 EC002062 ETIM 5.0 EC002062 ETIM 6.0 EC002062 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V Nominal current IN 9A cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V  FILE E 221474  FILE E 221474 11/05/2019   Page 7 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Approvals     Nominal current IN 9A EAC  cULus Recognized      RU CDE.AI30.B.01102      Accessories Accessories Protective cap Sealing cap - PROT-MINFS-PA-CHAIN - 1430912 7/8" sealing cap made of plastic with fixing band, for sensor cables, for 7/8" connectors     Screwdriver tools Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Tool - SAC BIT MIN-D25 - 1212512 Nut for assembling 7/8" connectors with a knurl diameter of 25 mm, with 4 mm hexagonal drive     Torque tool 11/05/2019   Page 8 / 9 https://www.phoenixcontact.com/us/products/1521481 Connector - SACC-MINMR-4CON-PG 9 - 1521481 Accessories Torque screwdriver - TSD 08 SAC - 1212597 Torque screw driver with preset torque of 0.8 Nm, with 4 mm hexagon for accommodating SAC bits, two-component handle with non-slip grip     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/05/2019   Page 9 / 9
