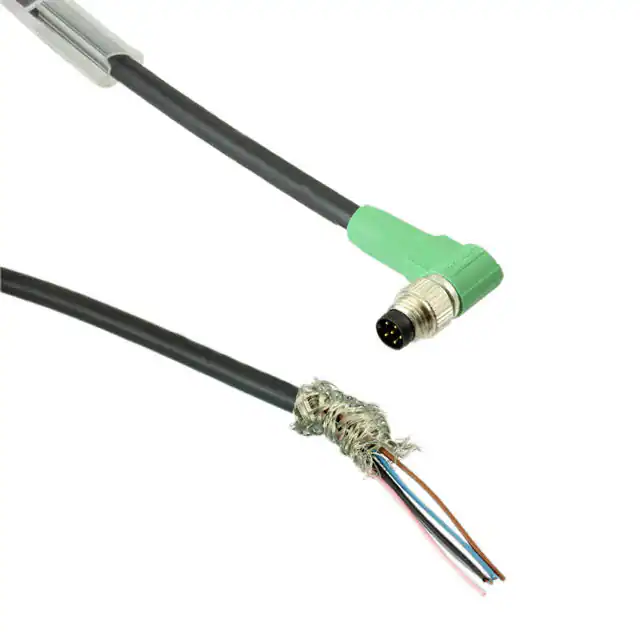

https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/Actuator cable, 6-position, PUR halogen-free, Black-gray RAL 7021, shielded, Plug angled M8, on Free cable end, Cable length: 3 m Product Features  Easy and safe: 100% electrically tested plug-in components  Our standard: robust halogen-free PUR cable  Reliable signal transmission – 360° shielding in environments with electromagnetic interference   Key commercial data Packing unit 11 Weight per Piece (excluding packing) 119.9 GRM Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 3m Stripping length of the free conductor end 50 mm Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 General Rated current at 40°C 1.5 A Rated voltage 30 V Number of positions 6 Contact resistance ≤ 5 mΩ 04.11.2013   Page 1 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Technical data General Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M8 connector IEC 61076-2-104 Status display No Surge voltage category II Pollution degree 3 Insertion/withdrawal cycles ≥ 100 Torque 0.2 Nm (M8 connectors) Material Inflammability class according to UL 94 HB Contact material CuZn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Cable Cable type PUR halogen-free black shielded Cable type (abbreviation) PUR Conductor cross section 6x 0.14 mm² (signal line) AWG signal line 26 Conductor structure signal line 18x 0.10 mm Core diameter including insulation 1.05 mm ±0.02 mm Wire colors Brown, white, black, blue, gray, pink External sheath, color Black-gray RAL 7021 External cable diameter 5.20 mm Smallest bending radius, fixed installation 52 mm Smallest bending radius, movable installation 52 mm Number of bending cycles 4000000 Bending radius 52 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Cable weight 34 kg/km Outer sheath, material PUR Conductor material Bare Cu litz wires Special properties Flexible cable conduit capable 04.11.2013   Page 2 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Technical data Cable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DIN EN ISO 4892-2-A Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (cable, flexible installation) Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27061801 ETIM ETIM 2.0 EC000830 ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals 04.11.2013   Page 3 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Approvals Approvals UL Listed / cUL Listed / GOST / cULus Listed Ex Approvals Approvals submitted Approval details UL Listed      Nominal current IN 4A Nominal voltage UN 125 V cUL Listed      Nominal current IN 4A Nominal voltage UN 125 V GOST  cULus Listed  Accessories Accessories Conductor marking 04.11.2013   Page 4 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Accessories Insert label - PABA WH/15 - 1013151 Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Insert label - PABA YE/15 - 1013698 Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Insert label - PABA RD/15 - 1013944 Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Cutting tools Cable-cutting tool - CUTFOX-S VDE - 1212207 Diagonal cutter for copper and aluminum conductors, VDE-tested     Marker carrier cable Conductor marker carrier - PATG 2/15 - 1013038 Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 2-4 mm, Lettering field: 4 x 15 mm     04.11.2013   Page 5 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Accessories Conductor marker carrier - PATG 3/15 - 1013041 Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 4-7 mm, Lettering field: 4 x 15 mm     Conductor marker carrier - PATG 4/15 - 1013054 Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 6-10 mm, Lettering field: 4 x 15 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Protective cap Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857 M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs     Screwdriver tools 04.11.2013   Page 6 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Accessories Tool - SAC BIT M8-D10 - 1208461 Nut for assembling sensor/actuator cables with M8 connector and for M8 connectors with QUICKON fast connection technology, for 4 mm hexagonal drive     Stripping tool Stripping tool - WIREFOX SAC - 1212623 Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7 mm, any stripping length     Stripping tool - WIREFOX 10 - 1212150 Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade     Torque tool Torque screwdriver - TSD 02 SAC - 1208487 Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors     Drawings 04.11.2013   Page 7 / 8 https://www.phoenixcontact.com/us/products/1522354 Sensor/Actuator cable - SAC-6P-M 8MR/ 3,0-PUR SH - 1522354 Schematic diagram Cable cross section 4 5 3 6 1 2 Pin assignment M8 plug, 6-pos., view male side PUR halogen-free black shielded [PUR] Dimensioned drawing Circuit diagram Ø10 Ø7,5 23,9 M8 1 BN 2 WH 3 BU 4 BK 5 GY 6 PK Contact assignment of the M8 plug 27,9 M8 x 1 male plug, angled version Schematic diagram Layout of connector pin assignments © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 04.11.2013   Page 8 / 8
