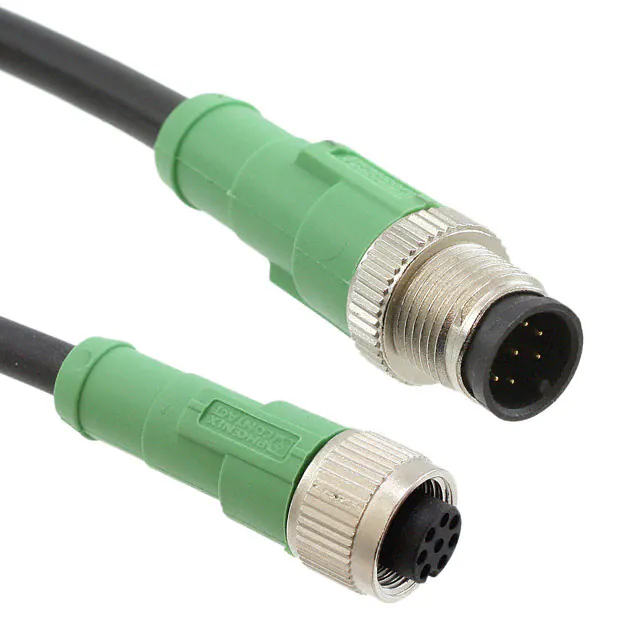

https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on Socket straight M12, A-coded, Cable length: 1.5 m Why buy this product  Easy and safe: 100% electrically tested plug-in components  Our standard: robust halogen-free PUR cable Key Commercial Data Packing unit 1 STK GTIN GTIN 4017918957513 Weight per Piece (excluding packing) 86.000 g Custom tariff number 85444290 Country of origin Poland Technical data Dimensions Length of cable 1.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 2A Rated voltage 30 V Number of positions 8 12/22/2016   Page 1 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Technical data General Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component Unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Cable Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y UL AWM style 20549 / 10493 (80°C/300 V) Conductor cross section 8x 0.25 mm² AWG signal line 24 Conductor structure signal line 32x 0.10 mm Core diameter including insulation 1.17 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm Wire colors white, brown, green, yellow, gray, pink, blue, red Overall twist 8 wires around filler to the core External sheath, color black-gray RAL 7021 Outer sheath thickness approx. 0.8 mm External cable diameter D 5.9 mm ±0.15 mm Minimum bending radius, fixed installation 8xD Minimum bending radius, flexible installation 10 x D Number of bending cycles 4000000 12/22/2016   Page 2 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Technical data Cable Bending radius 59 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Cable weight 46 kg/km Outer sheath, material PUR Material, filler PE Material conductor insulation PP Conductor material Bare Cu litz wires Conductor resistance ≤ 78 Ω/km Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flexible Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DIN EN ISO 4892-2-A Low adhesion abrasion-resistant Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (cable, flexible installation) Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Pin assignment M12 plug, 8-pos., A-coded, view plug side Schematic diagram Pin assignment M12 socket, 8-pos., A-coded, view female side 12/22/2016   Page 3 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Cable cross section Dimensional drawing Ø11 M12 Ø14,8 46,8 PUR halogen-free black [PUR] Plug, M12 x 1, straight, shielded Dimensional drawing Circuit diagram M12 Ø14,8 Ø11 44 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 M12 x 1 socket, straight Contact assignment of the M12 plug and the M12 socket Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27279218 eCl@ss 9.0 27060311 ETIM ETIM 2.0 EC000830 ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 ETIM 6.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 12/22/2016   Page 4 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Classifications UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal current IN 2A Nominal voltage UN 30 V cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal current IN 2A Nominal voltage UN 30 V  FILE E 221474  FILE E 221474 EAC      EAC-Zulassung cULus Listed       Accessories Accessories Conductor marking 12/22/2016   Page 5 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Accessories Insert label - PABA WH/15 - 1013151 Insert label, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Insert label - PABA YE/15 - 1013698 Insert label, Strip, yellow, unlabeled, can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Insert label - PABA RD/15 - 1013944 Insert label, Strip, red, unlabeled, can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm, Lettering field: 15 x 4 mm     Marker carrier cable Conductor marker carrier - PATO 2/15 - 1013122 Conductor marker carrier, transparent, unlabeled, Mounting type: clip on, Cable diameter: 2.8-4.4 mm, Lettering field: 4 x 15 mm     Conductor marker carrier - PATO 3/15 - 1013135 Conductor marker carrier, transparent, unlabeled, Mounting type: clip on, Cable diameter: 4.4-6.7 mm, Lettering field: 4 x 15 mm     12/22/2016   Page 6 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Accessories Conductor marker carrier - PATO 4/15 - 1013148 Conductor marker carrier, transparent, unlabeled, Mounting type: clip on, Cable diameter: 6.7-10 mm, Lettering field: 4 x 15 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Protective cap Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 sockets     Screw plug - PROT-M12 MS-PA-CHAIN - 1430899 M12 sealing cap with fixing band, for sensor cables, for free M12 sockets     Safety locking Locking clip - SAC-M12-EXCLIP-M - 1558988 Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without tools     12/22/2016   Page 7 / 8 https://www.phoenixcontact.com/gb/products/1522697 Sensor/Actuator cable - SAC-8P-M12MS/ 1,5-PUR/M12FS - 1522697 Accessories Locking clip - SAC-M12-EXCLIP-F - 1558991 Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without tools     Screwdriver tools Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Tool - SAC BIT M12-D15 - 1208432 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter of 15 mm, for 4 mm hexagonal drive     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/22/2016   Page 8 / 8
