1522833

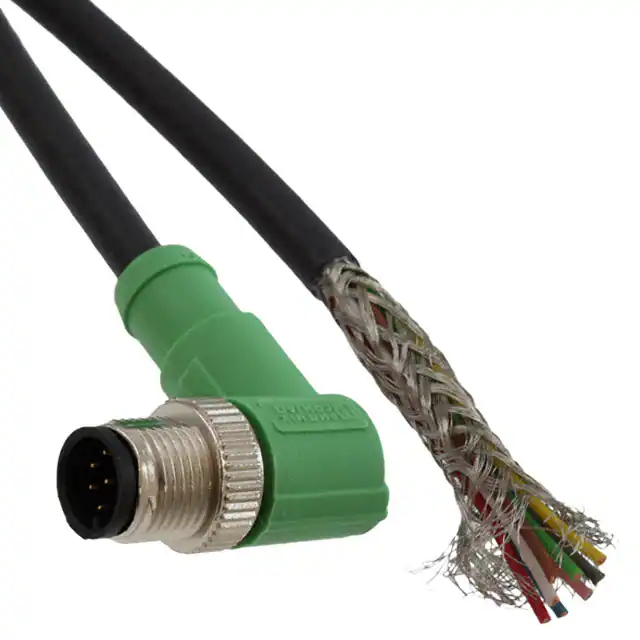

https://www.phoenixcontact.com/us/products/1522833 Sensor/Actuator cable - SAC-8P-M12MR/ 5,0-PUR SH - 1522833 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug angled M12, A-coded, on free cable end, Cable length: 5 m Product Features  Easy and safe: 100% electrically tested plug-in components  Our standard: robust halogen-free PUR cable  Reliable signal transmission – 360° shielding in environments with electromagnetic interference   Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 285.9 g Custom tariff number 85444290 Country of origin Poland Technical data Dimensions Length of cable 5m Stripping length of the free conductor end 50 mm Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 General Rated current at 40°C 2A 10/18/2015   Page 1 / 5 https://www.phoenixcontact.com/us/products/1522833 Sensor/Actuator cable - SAC-8P-M12MR/ 5,0-PUR SH - 1522833 Technical data General Rated voltage 30 V Number of positions 8 Contact resistance ≤ 5 mΩ Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component Unwired Overvoltage category II Pollution degree 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Cable Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation LiF9YC11Y UL AWM style 20549 / 10493 (80°C/300 V) Conductor cross section 8x 0.25 mm² (signal line) AWG signal line 24 Conductor structure signal line 32x 0.10 mm Core diameter including insulation 1.17 mm ±0.02 mm Wire colors Brown, white, green, yellow, gray, pink, blue, red Overall twist 8 wires around filler to the core Shielding Tinned copper braided shield Optical shield covering 85 % External sheath, color black RAL 9005 External cable diameter D 5.9 mm ±0.2 mm Smallest bending radius, fixed installation 47.2 mm Smallest bending radius, movable installation 59 mm (up to +60°C) 10/18/2015   Page 2 / 5 https://www.phoenixcontact.com/us/products/1522833 Sensor/Actuator cable - SAC-8P-M12MR/ 5,0-PUR SH - 1522833 Technical data Cable Number of bending cycles 4000000 Bending radius 59 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Insulation resistance ≥ 1 GΩ*km (at 20 °C) Conductor resistance ≤ 78 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V AC Test voltage, cable ≥ 3000 V AC (Spark test) Test voltage Core/Shield ≥ 2000 V AC (for 60 s) Special properties Flexible cable conduit capable Flame resistance in acc. with UL FT-2 according to UL 758/1581 (horizontal) in accordance with UL 758/1581 FT2 According to DIN EN 60332-2-2 (20 s) Halogen-free in accordance with DIN VDE 0472 part 815 in accordance with DIN EN 50267-2-1 Other resistance hydrolysis and microbe resistant partly UV-resistant in accordance with DIN EN ISO 4892-2-A Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (cable, flexible installation) Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27279218 10/18/2015   Page 3 / 5 https://www.phoenixcontact.com/us/products/1522833 Sensor/Actuator cable - SAC-8P-M12MR/ 5,0-PUR SH - 1522833 Classifications ETIM ETIM 2.0 EC000830 ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approvals submitted Approval details UL Listed      Nominal current IN 2A Nominal voltage UN 30 V 10/18/2015   Page 4 / 5 https://www.phoenixcontact.com/us/products/1522833 Sensor/Actuator cable - SAC-8P-M12MR/ 5,0-PUR SH - 1522833 Approvals cUL Listed      Nominal current IN 2A Nominal voltage UN 30 V EAC  cULus Listed  Drawings Schematic diagram Cable cross section Pin assignment M12 plug, 8-pos., view plug side PUR halogen-free black [PUR] Dimensional drawing Circuit diagram Ø14,8 Ø12 30,9 M12 1 WH 2 BN 3 GN 4 YE 5 GY 6 PK 7 BU 8 RD 36,3 M12 x 1 male plug, angled, shielded Contact assignment of the M12 plug Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 10/18/2015   Page 5 / 5
