1523502

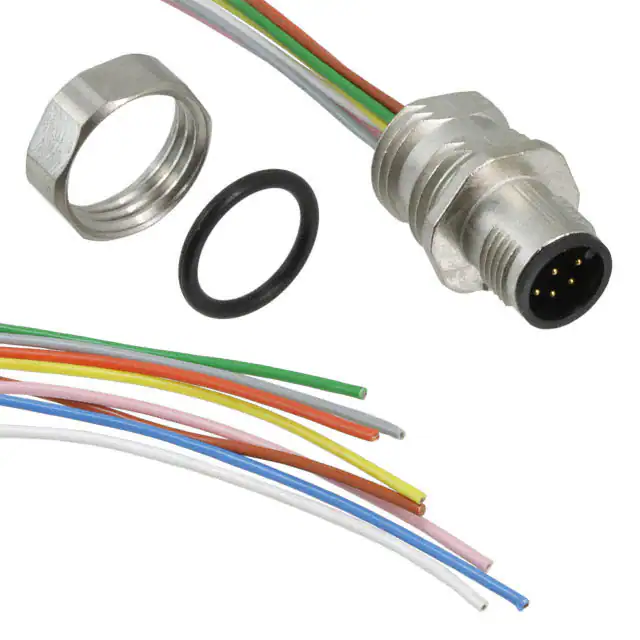

https://www.phoenixcontact.com/us/produkte/1523502 Flush-type connector - SACC-EC-MS-8CON-M16/0,5 SCO - 1523502 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/Actuator flush-type plug, 8-pos., M12-SPEEDCON, A-coded, front/screw mounting with M16 thread, can be positioned, with 0.5 m TPE litz wire, 8 x 0.25 mm²     Key commercial data Packing unit 1 PCE Catalog page Page 29 (PC-2011) GTIN Custom tariff number 85444290 Country of origin GERMANY Technical data General data Rated current at 40°C 2A Rated voltage 30 V Number of positions 8 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Length of cable 0.5 m Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) General characteristics Standards/regulations M12 plug-in connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 11.04.2013   Page 1 / 4 https://www.phoenixcontact.com/us/produkte/1523502 Flush-type connector - SACC-EC-MS-8CON-M16/0,5 SCO - 1523502 Technical data General characteristics Degree of protection IP67 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 66 Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Mounting type Front mounting M16 x 1.5 With locking nut Connection method Individual wires Status display No Conductor data Cable type TPE litz wire Conductor cross section 0.25 mm² AWG signal line 24 Conductor structure signal line 14x 0.15 mm Core diameter including insulation 1.15 mm ±0.07 mm Thickness, insulation 0.21 mm (Core insulation) Wire colors Brown, blue, white, gray, pink, green, yellow, red Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 80 mΩ/m Nominal voltage, conductor 300 V Test voltage, conductor 2000 V AC Ambient temperature (operation) -25 °C ... 90 °C (cable, fixed installation) Classifications ETIM ETIM 2.0 EC001297 ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002062 UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 11.04.2013   Page 2 / 4 https://www.phoenixcontact.com/us/produkte/1523502 Flush-type connector - SACC-EC-MS-8CON-M16/0,5 SCO - 1523502 Classifications UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 Approvals Approvals Approvals UL Recognized Ex Approvals Approvals submitted Approval details UL Recognized      mm²/AWG/kcmil 26-2 Nominal current IN 2A Nominal voltage UN 30 V Drawings 11.04.2013   Page 3 / 4 https://www.phoenixcontact.com/us/produkte/1523502 Flush-type connector - SACC-EC-MS-8CON-M16/0,5 SCO - 1523502 Dimensioned drawing Schematic diagram 45 ° 5 M16x1,5 Ø17 +0,2 6 4 8 7 1 Housing cutout for M16 fastening thread, mounting panel with thread min.2,5 Circuit diagram 26 13 M12x1 2 M16x1,5 2 Pin assignment M12 plug, 8-pos., view plug side Dimensioned drawing 500 3 1 WH 2 BN 3 GN 4 YE 5 GY 6 PK 7 BU 8 RD M12 flush-type plug, can be positioned Contact assignment of the M12 plug © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 11.04.2013   Page 4 / 4
