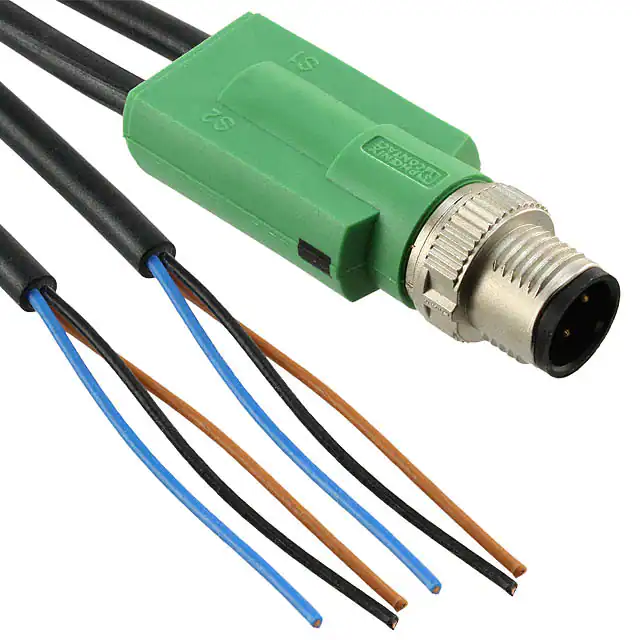

Extract from the online catalog     SAC-3P-Y/2X10,0-PUR SCO Order No.: 1524239 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1524239   Sensor/Actuator cable, 3-position, PUR, halogen-free, Black-gray RAL 7021, Plug, straight M12-SPEEDCON, A-coded, on Free conductor end and Free conductor end, Cable length: 10 m   Product notes WEEE/RoHS-compliant since: 01/01/2008 Commercial data GTIN (EAN) 4017918969080 Note Made-to-order sales group D116 Pack 1 pcs. Customs tariff 85444290 Weight/Piece 0.5222 KG Catalog page information Page 100 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 3 Volume resistance ≤ 5 mΩ PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 5 Nov 22, 2010 SAC-3P-Y/2X10,0-PUR SCO Order No.: 1524239 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1524239 Insulation resistance 100 MΩ Length of cable 10 m Stripping length of the free conductor end 50 mm Ambient temperature (operation) -25 °C ... 90 °C (Male connector / female connector) General characteristics Standards/regulations M12 male connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/IP68/IP69K Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, (nickel-plated) Status display No Conductor data Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 42x 0.10 mm Core diameter including insulation 1.27 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm (Core insulation) ≥ 0.76 mm (Outer cable sheath) External cable diameter 4.40 mm Wire colors Brown, blue, black External sheath, color Black-gray RAL 7021 Insulation resistance ≥ 100 GΩ*km Conductor resistance ≤ 58 Ω/m Nominal voltage, conductor 300 V Test voltage, conductor 3000 V Overall twist 3 wires, twisted PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 2 / 5 Nov 22, 2010 SAC-3P-Y/2X10,0-PUR SCO Order No.: 1524239 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1524239 Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Cable weight 26 kg/km Smallest bending radius, movable installation 44 mm Number of bending cycles 4000000 Bending radius 44 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (cable, flexible installation) Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Certificates / Approvals Certification CUL Listed, UL Listed Diagrams/Drawings Dimensioned drawing Plug M12 x 1, Y distributor PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 5 Nov 22, 2010 SAC-3P-Y/2X10,0-PUR SCO Order No.: 1524239 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1524239 Circuit diagram Contact assignment of the M12 Y plug connector Schematic diagram Pin assignment M12 Y plug, 4-pos., A-coded, view plug side PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 5 Nov 22, 2010 SAC-3P-Y/2X10,0-PUR SCO Order No.: 1524239 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1524239 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 5 / 5 Nov 22, 2010
