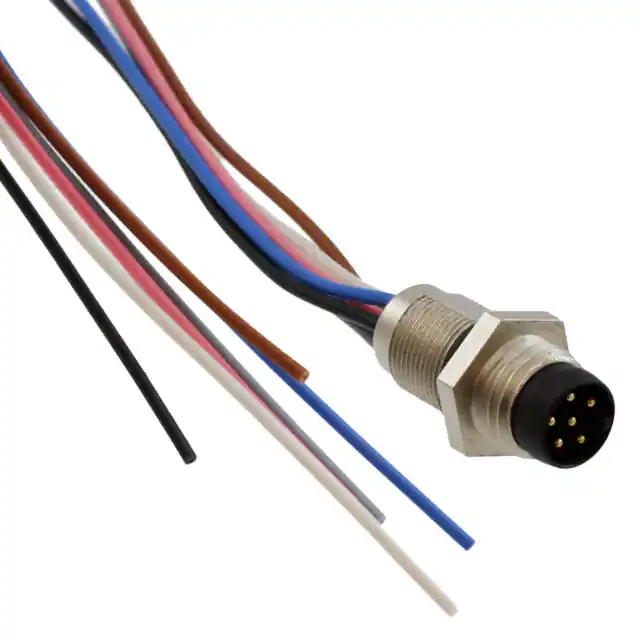

https://www.phoenixcontact.com/us/produkte/1542664 Flush-type connector - SACC-E-M 8MS-6CON-M 8/0,5 - 1542664 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type plug, 6-pos., M8, front/screw mounting with M8 fastening thread, with 0.5 m TPE litz wire, 6 x 0.14 mm²   Key commercial data Packing unit 1 Minimum order quantity 1 Catalog page Page 26 (PC-2011) GTIN Custom tariff number 85444290 Country of origin GERMANY Technical data General data Rated current at 40°C 2A Rated voltage 30 V Number of positions 6 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Length of cable 0.5 m Ambient temperature (operation) -25 °C ... 85 °C (Male connector / female connector) General characteristics Standards/regulations M8 plug-in connector IEC 61076-2-104 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP67 Contact material Cu alloy Contact surface material Au Contact carrier material PUR / PA66 Material, knurls Nickel-plated brass 08.10.2012   Page 1 / 5 https://www.phoenixcontact.com/us/produkte/1542664 Flush-type connector - SACC-E-M 8MS-6CON-M 8/0,5 - 1542664 Technical data General characteristics Sealing material Viton Mounting type Front mounting M8 x 0.5 Connection method Individual wires Status display No Conductor data Cable type TPE litz wire Conductor cross section 0.14 mm² AWG signal line 26 Conductor structure signal line 18x 0.10 mm Core diameter including insulation 1.15 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors Black, brown,blue, white, gray, pink Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 20 MΩ*km Conductor resistance ≥ 80 Ω/km Nominal voltage, conductor 300 V Test voltage, conductor 2000 V AC Ambient temperature (operation) -25 °C ... 85 °C (cable, fixed installation) Classifications eclass eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 etim ETIM 3.0 EC002061 ETIM 4.0 EC002061 unspsc UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 08.10.2012   Page 2 / 5 https://www.phoenixcontact.com/us/produkte/1542664 Flush-type connector - SACC-E-M 8MS-6CON-M 8/0,5 - 1542664 Approvals Approvals Approvals GOST Ex Approvals Approvals submitted Approval details GOST  Accessories Accessories Assembly Flat nut - SACC-E-MU-M 8 - 1504071 Flat nut with M8 thread     Drawings Schematic diagram Dimensioned drawing 18 3 2 6 1 9,5 500 M8x0,5 4 5 2 Pin assignment M8 plug, 6-pos., view male side 10 min.2,0 M8 flush-type connector 08.10.2012   Page 3 / 5 https://www.phoenixcontact.com/us/produkte/1542664 Flush-type connector - SACC-E-M 8MS-6CON-M 8/0,5 - 1542664 Ø8,1 +0,1 Dimensioned drawing 7,1 +0,1 08.10.2012   Page 4 / 5 https://www.phoenixcontact.com/us/produkte/1542664 © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 08.10.2012   Page 5 / 5
