1542732

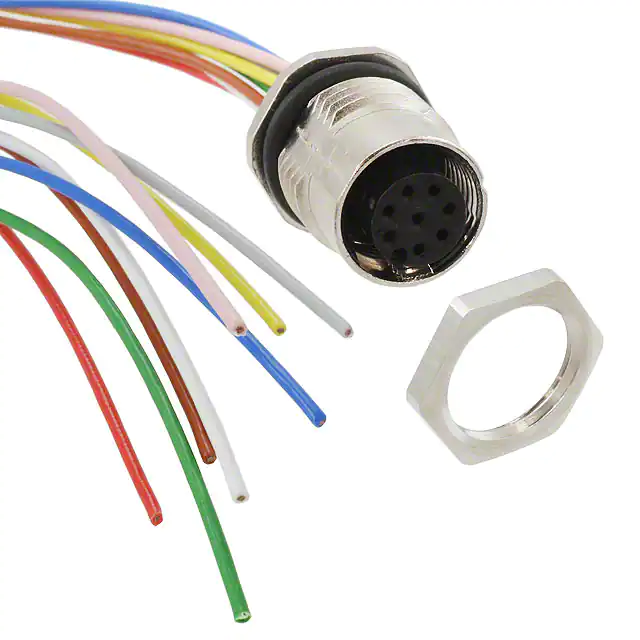

https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type socket, 8-pos., M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm² Your advantages  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  For high transmission safety: shield connection to the housing with optional EMC nut  SPEEDCON fast locking system reduces cabling times Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356097741 Weight per Piece (excluding packing) 27.600 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 (When plugged in) 11/06/2019   Page 1 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Technical data Ambient conditions IP65 (When plugged in) General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 2A Rated voltage 30 V Rated surge voltage 0.8 kV Number of positions 8 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Rear mounting Pg9 With locking nut Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA 6.6 Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.25 mm² AWG signal line 24 Conductor structure signal line 14x 0.15 mm Core diameter including insulation 1.15 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors Brown, blue, white, gray, pink, green, yellow, red Material conductor insulation TPE 11/06/2019   Page 2 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Technical data Cable Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 80 mΩ/m Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 11/06/2019   Page 3 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Schematic diagram Pin assignment M12 socket, 8-pos., A-coded, view female side 11/06/2019   Page 4 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Dimensional drawing Housing cutout for Pg9 fastening thread, mounting panel with feed-through hole (alternatively with surface as protection against rotation) 11/06/2019   Page 5 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Dimensional drawing M12 flush-type connector 11/06/2019   Page 6 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Dimensional drawing Housing cutout for Pg9 fastening thread, mounting panel with thread 11/06/2019   Page 7 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Circuit diagram Contact assignment of the M12 socket Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 11/06/2019   Page 8 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Classifications ETIM ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 UNSPSC 13.2 39121413 Approvals Approvals Approvals UL Recognized / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 2A mm²/AWG/kcmil 24 EAC      FILE E 118976  B.00767 11/06/2019   Page 9 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 2A mm²/AWG/kcmil 24-22  E221474-20140616 Accessories Accessories Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Seal 11/06/2019   Page 10 / 11 https://www.phoenixcontact.com/us/products/1542732 Panel feed-through - SACC-DSI-FS-8CON-PG 9/0,5 SCO - 1542732 Accessories Flat gasket - SACC-PG9-SEAL CLM - 1556320 Pg9 flat gasket for the rear mounting of M12 flush-type connectors with Pg9 fastening threads     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/06/2019   Page 11 / 11
