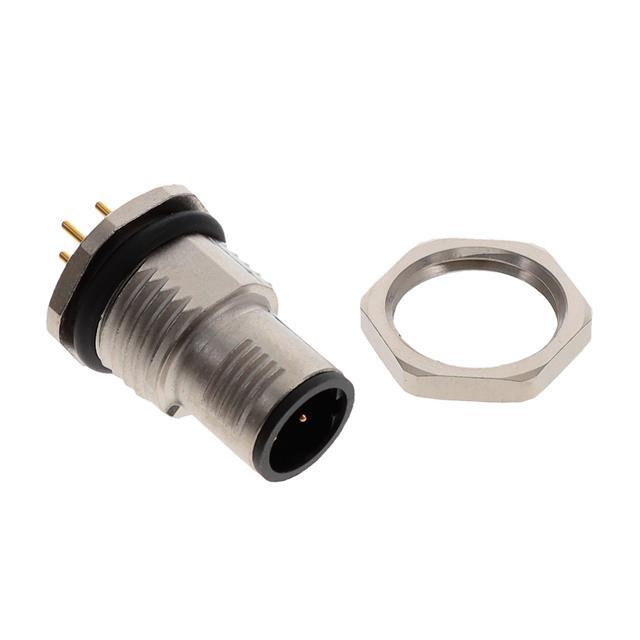

Extract from the online catalog   SACC-DSI-MSD-4CON-L180 SCO   Order No.: 1551516 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1551516   Bus system flush-type connector, ETHERNET, 4-pos., M12 SPEEDCON, D-coded, rear/screw mounting with PG9 thread, with straight solder connection   Product notes WEEE/RoHS-compliant since: 08/07/2007 Commercial data GTIN (EAN) 4 046356 153621 sales group D125 Pack 20 pcs. Customs tariff 85366990 Catalog page information Page 28 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Volume resistance ≤ 3 mΩ PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 5 Jan 6, 2011 SACC-DSI-MSD-4CON-L180 SCO Order No.: 1551516 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1551516 Insulation resistance ≥ 100 MΩ Ambient temperature (operation) -25 °C ... 85 °C (Male connector / female connector) General characteristics Standards/regulations M12 connector IEC 61076-2-101 Coding D - data Surge voltage category II Pollution degree 3 Degree of protection IP67 Contact material CuZn Contact surface material Au Contact carrier material PA 66 Material, knurls Zinc die-cast, (nickel-plated) Sealing material NBR Mounting type Rear mounting Pg9 With locking nut Type of connection Solder pins Length of the solder contacts 6 mm Status display No Certificates / Approvals Certification PHOENIX CONTACT Inc., USA http://www.phoenixcon.com UL Page 2 / 5 Jan 6, 2011 SACC-DSI-MSD-4CON-L180 SCO Order No.: 1551516 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1551516 Diagrams/Drawings Drilling plan/solder pad geometry Dimensioned drawing M12 flush-type connector Mounting cutout with polarization for Pg9 thread PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 5 Jan 6, 2011 SACC-DSI-MSD-4CON-L180 SCO Order No.: 1551516 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1551516 M12 front view Schematic diagram Pin assignment M12 male connector, 4-pos., D-coded, male side PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 5 Jan 6, 2011 SACC-DSI-MSD-4CON-L180 SCO Order No.: 1551516 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1551516 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 5 / 5 Jan 6, 2011
