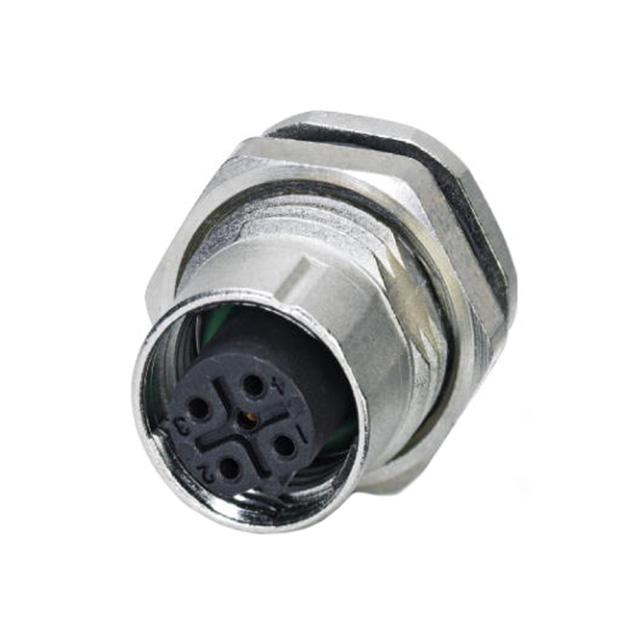

https://www.phoenixcontact.com/us/products/1553022 Panel feed-through - SACC-DSI-FSB-5CON-L180/SCO SH - 1553022 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type socket, 5-pos., M12-SPEEDCON, shielded, B-coded, rear/screw mounting with Pg9 thread, with straight solder connection Product Features ■ ■ ■ All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design SPEEDCON fast locking system reduces cabling times Key Commercial Data Packing unit 1 pc Minimum order quantity 20 pc Weight per Piece (excluding packing) 13.9 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of the solder pin 6 mm Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using 03/29/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1553022 Panel feed-through - SACC-DSI-FSB-5CON-L180/SCO SH - 1553022 Technical data General a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 5 Insulation resistance ≥ 100 MΩ Coding B - inverse Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Solder pins Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Rear mounting Pg9 With flat nut Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 66 Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 03/29/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1553022 Panel feed-through - SACC-DSI-FSB-5CON-L180/SCO SH - 1553022 Classifications eCl@ss eCl@ss 8.0 27440103 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 UNSPSC 13.2 31261501 Approvals Approvals Approvals EAC / cULus Recognized / EAC Ex Approvals Approvals submitted Approval details EAC  cULus Recognized      mm²/AWG/kcmil 20 Nominal current IN 4A Nominal voltage UN 60 V 03/29/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1553022 Panel feed-through - SACC-DSI-FSB-5CON-L180/SCO SH - 1553022 Approvals EAC  Drawings Dimensional drawing Schematic diagram max.4,5 3 4 Ø15,3 +0,1 5 13,5 +0,1 2 1 Pin assignment M12 socket, 5-pos., B-coded, female side 1x45° Housing cutout for Pg9 fastening thread, mounting panel with feed-through hole (alternatively with area as anti-rotation protection for panel thicknesses > 2 mm up to max. 4.5 mm) Dimensional drawing Drilling diagram 19,6 45° max. 4,5 Ø5 Ø14,6 2 3 3 Ø1,2* 9,5 SW17 PG9 SW18 6,5 Ø1,2 M12 flush-type connector Dimensional drawing 8 6, 18 6, 6 45° M12 front view 03/29/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1553022 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/29/2016   Page 5 / 5
