1554209

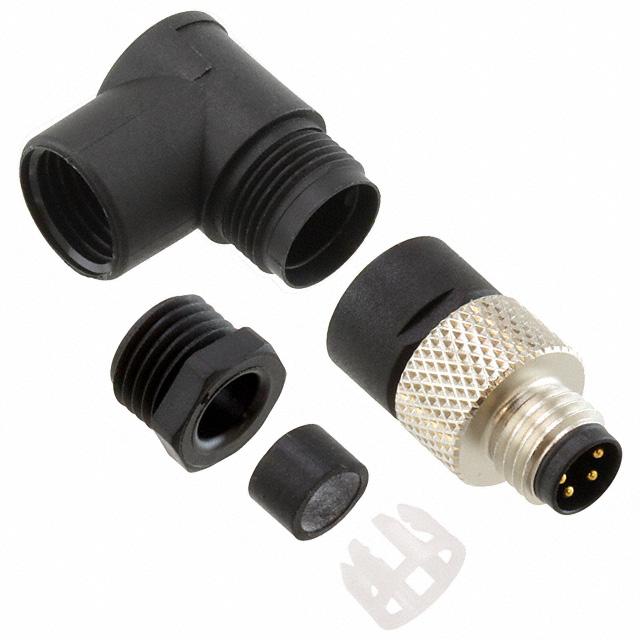

https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Connector, 4-position, Plug angled M8, A-coded, Solder connection, Knurl material: Nickel-plated brass, External cable diameter 3.5 mm ... 5 mm Why buy this product  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356161756 Weight per Piece (excluding packing) 10.600 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions External cable diameter 3.5 mm ... 5 mm Stripping length of the sheath 12 mm Stripping length of the individual wire 3 mm Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C Degree of protection IP67 General Rated current at 40°C 4A Rated voltage 30 V Number of positions 4 12/22/2016   Page 1 / 6 https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Technical data General Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M8 connector IEC 61076-2-104 Status display No Overvoltage category II Degree of pollution 3 Connection method Solder connection Conductor cross section 0.08 mm² ... 0.34 mm² Conductor cross section AWG 28 ... 22 Insertion/withdrawal cycles ≥ 100 Torque 0.2 Nm (M8 knurl) Assembly instructions The connector pin assignment can be rotated 90° to the cable outlet Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Au Contact carrier material PA Material of grip body PBT Material, knurls Nickel-plated brass Sealing material NBR Cable Standards/specifications M8 connector IEC 61076-2-104 Standards and Regulations Standard designation M8 connector Standards/regulations IEC 61076-2-104 Flammability rating according to UL 94 HB Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 12/22/2016   Page 2 / 6 https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Schematic diagram Dimensional drawing Ø12 4 1 3 M8 34,6 2 Ø11,5 Pin assignment M8 plug, 4-pos., view male side 24,5 M8 x 1 male plug, angled version Classifications eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27279221 eCl@ss 7.0 27440104 eCl@ss 8.0 27440104 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002062 ETIM 4.0 EC002062 ETIM 5.0 EC002062 ETIM 6.0 EC002062 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / EAC / UL Recognized / cUL Recognized / cULus Recognized 12/22/2016   Page 3 / 6 https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Approvals Ex Approvals Approval details EAC      7500651.22.01.00246 EAC      EAC-Zulassung UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474     Nominal current IN 4A Nominal voltage UN 30 V cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal current IN 4A Nominal voltage UN 30 V cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474   Accessories Accessories Cable by the meter Cable reel - SAC-4P-100,0-PUR/0,25 - 1501692 Cable ring, PUR halogen-free black, 4-pos., conductor colors: brown / white / blue / black, cable length: 100 m     12/22/2016   Page 4 / 6 https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Accessories Protective cap Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857 M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs     Screwdriver tools Tool - SACC BIT M8-D12 - 1208474 Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 12 mm, for 4 mm hexagonal drive     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Seal Connector - SACC-M 8-SET/2,2-3,5 - 1436945 Sensor/actuator connector, accessories, pressure screw and seal, for unshielded M8 connector, cable diameter 2.2 mm - 3.5 mm     Torque tool Torque screwdriver - TSD 02 SAC - 1208487 Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors     12/22/2016   Page 5 / 6 https://www.phoenixcontact.com/gb/products/1554209 Connector - SACC-M 8MR-4CON-M - 1554209 Accessories Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/22/2016   Page 6 / 6
